Using the internal web pages
7.10.3.
MX/IP (see also section 6.2) is a UDP protocol used to communicate with Optelecom-NKF
equipment over a network connection. Optelecom-NKF application software, such as
Operator Storage, Operator Office, the MX Software Development Kit, and MX Configuration
Toolkit use the MX/IP protocol to access, configure, control and manage Optelecom-NKF
network devices.
MX/IP
Enable MX
MX notifications
IP address
Port
Unsolicited
notifications
interval
Retransmission
count
Retransmission
interval
MX

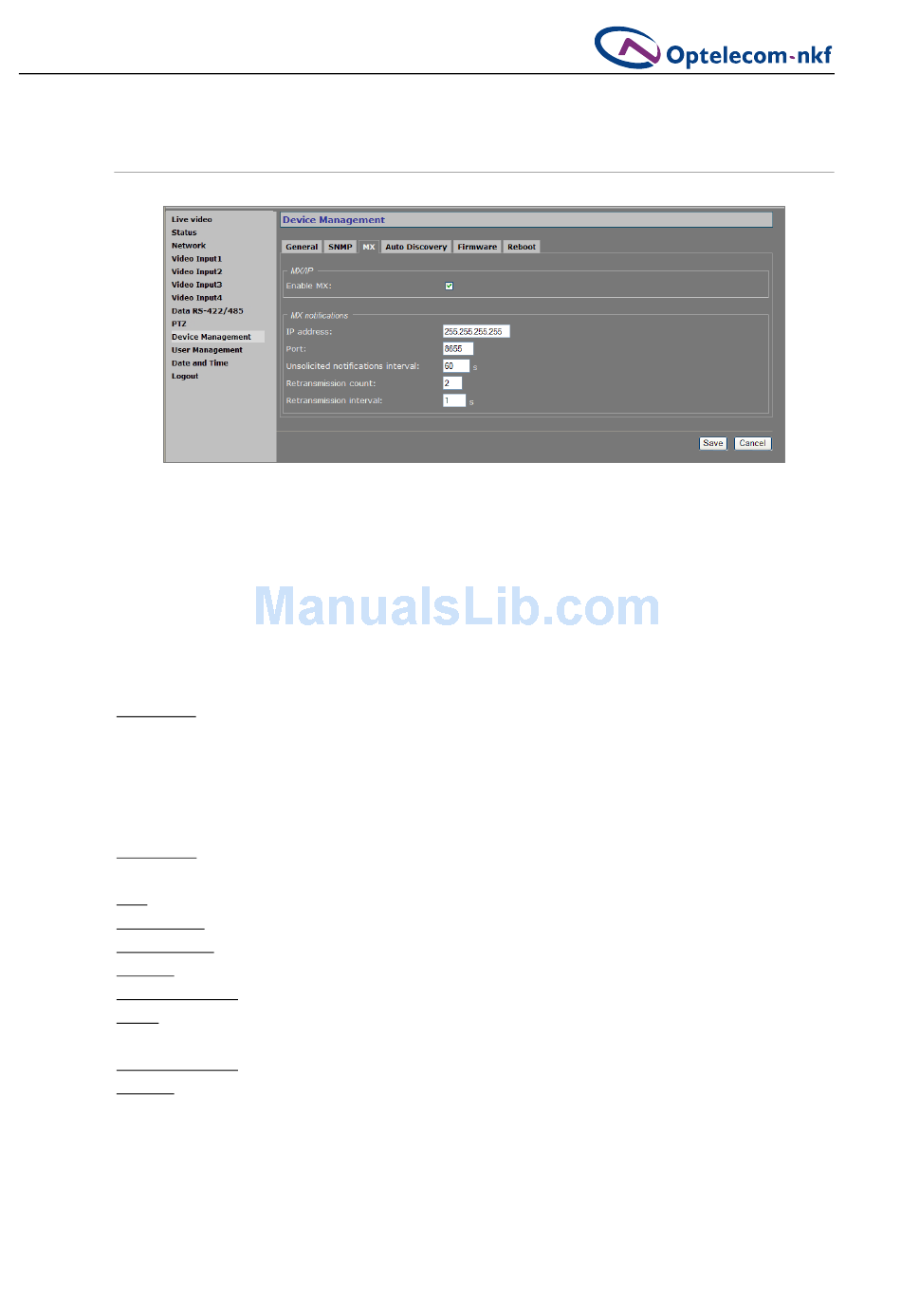

Figure 7.64 Device Management, MX tab
In addition to the proprietary MX/IP protocol, a C-54 E module can be
accessed, configured and managed using a variety of open standards
introduced in chapter 6. Therefore, it is possible to disable the entire
MX protocol.
With 255.255.255.255 as the IP address for the manager, the MX
notifications would be broadcast over the subnet.
Generally, the MX notifications port must not be modified.
Sends the module status as MX notification at the specified interval to
be picked up by a management program.
If desired, notifications can be retransmitted. With a retransmission
count value of 2, the actual number of transmissions equals 3
(including the original transmission).
Sets the frequency of retransmissions.
