Product Description

3.2. Front Panel

Features and indications
Table 3.1 lists the front panel features of the C-54 E,
as shown in figure 3.1.
Connector pin assignments are given in section 4.4.
C-54 E
o
←
VIDEO
(RJ-45 socket or SFP)
DATA (5 pin mini Combicon
connector)
Status indicator LEDs
*DC
*NV
*SYNC
Ethernet
socket
LEDs
Table 3.1 C-54 E front panel features and indications
(4 BNC conn.) video input
Ethernet I/O, electrical or fiber
RS-485/422 data in/out (upper),
out (lower)
(green) DC power OK; blinks on
identification (see section 7.10.1)
and errors
(red) no video on input
off all streams disabled
green all enabled streams OK
red a transmitted stream fails
yellow a received stream fails
red/yellow blink at least one transmitted and at
least one received stream fail
green/yellow Green on/off: 100/10 Mbit
Yellow on/blink: link OK, active
Yellow off/flash: link down, TX
attempt
- 8 -
C-54 e
DATA
+
-
+
-
DC SYNC
NV
CH1
NV
CH2
NV
CH3
NV
CH4

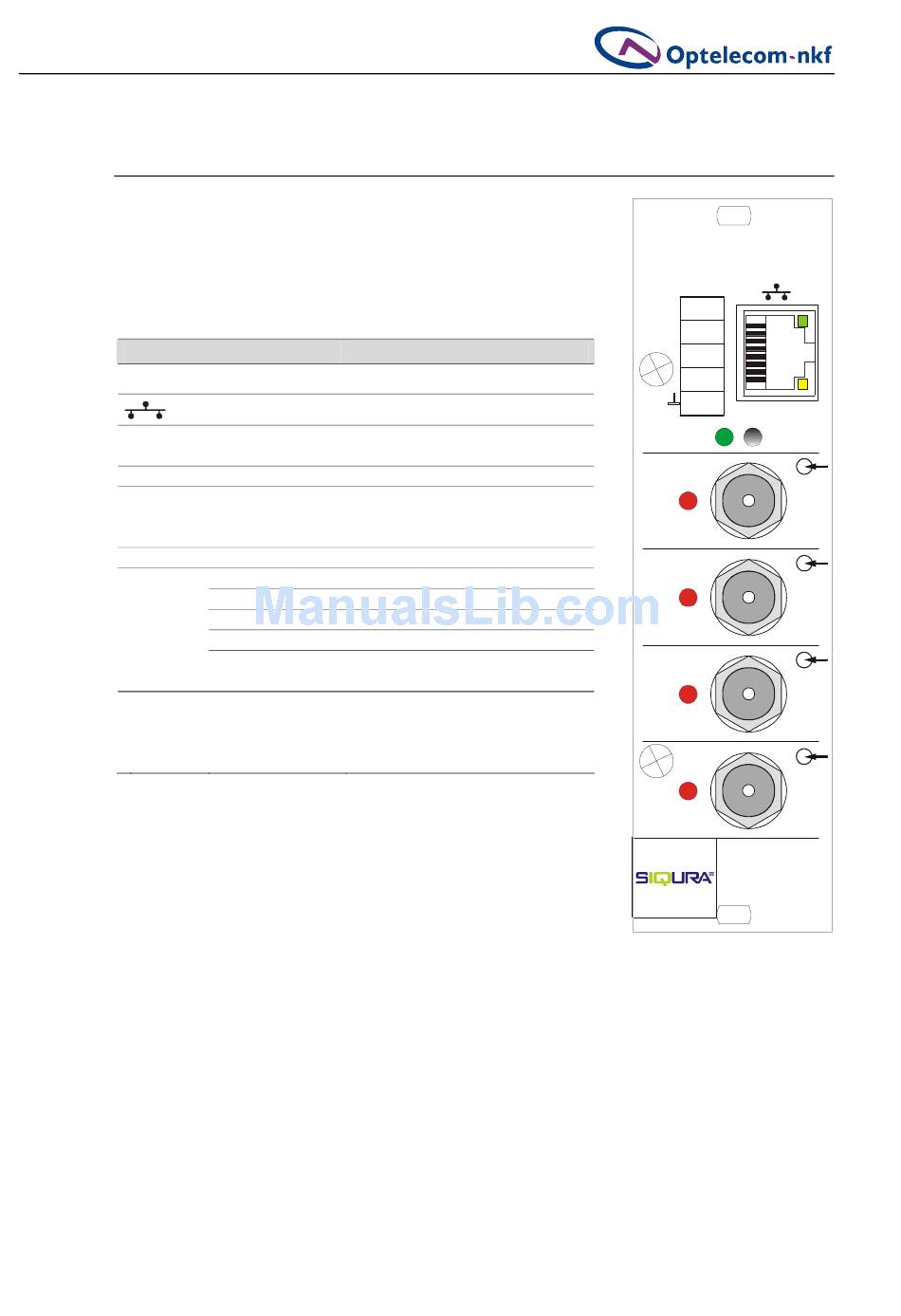

Figure 3.1
C-54 E front panel
