Using the internal web pages
7.4. Live Video
On the Live Video page, the homepage of the C-54, you can view live video images from up
to 4 connected cameras.
Viewing mode
Matrix mode
Maximized mode
Full screen mode

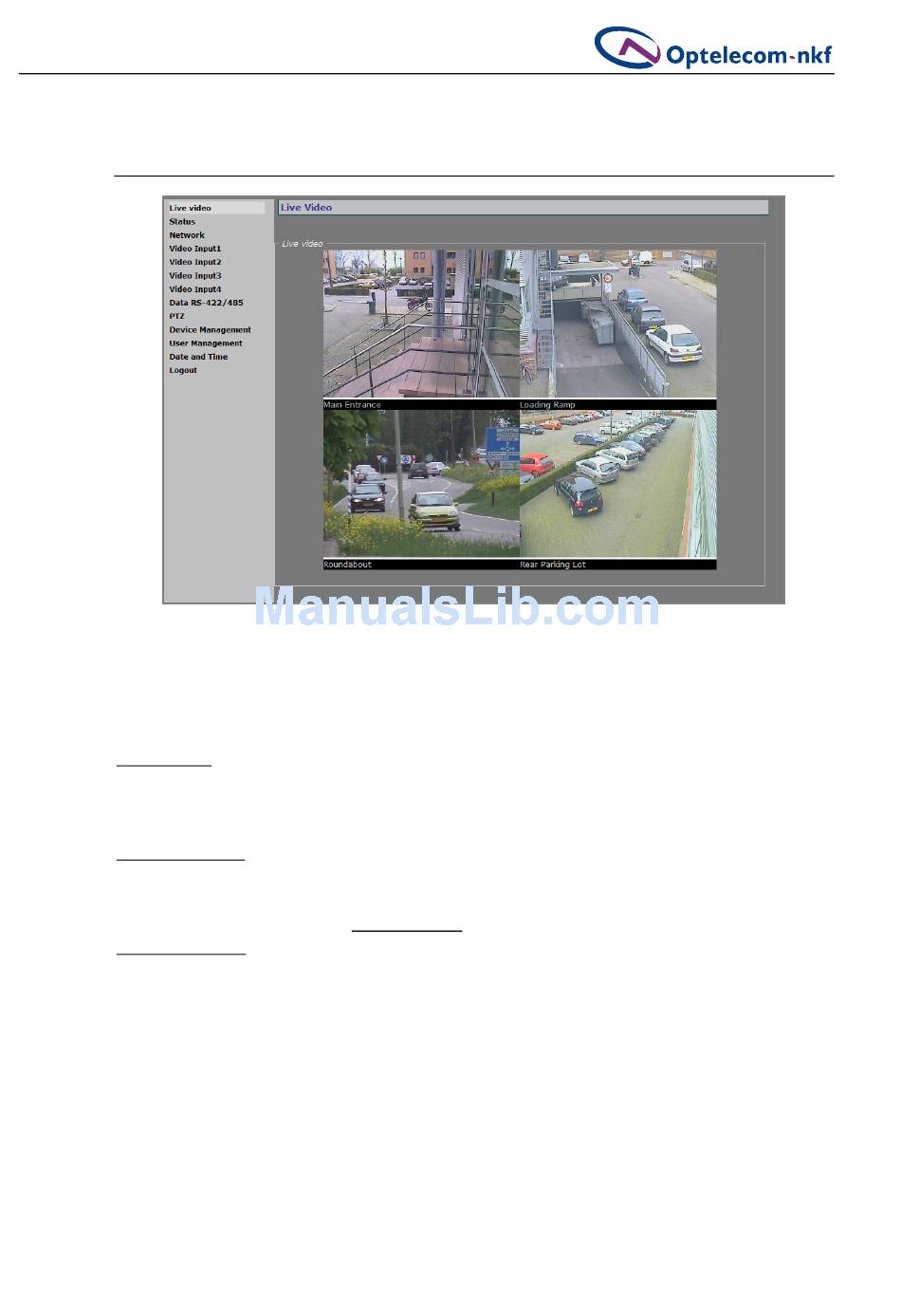

Figure 7.5 Live Video page, Matrix mode
The Live Video page opens in Matrix mode, offering an overview of the
four video inputs. The video images displayed in the 2x2 matrix are
previews, digitally encoded and compressed by the Live View Encoder.
For more details about this encoder, see section 7.7.3.
For better observation, you can click an individual preview to enter
Maximized mode. This enlarges the preview and brings it to the
foreground, hiding the other images.
Click the
Show all 4 cams
Double-click a maximized preview to have it displayed full screen.
Return to Maximized mode by double-clicking the full screen image.
- 28 -
hyperlink (figure 7.6) to restore Matrix mode.
