Using the internal web pages

7.5. Status

The Status page has two tabs: Status, and Measurements.
7.5.1. Status
The Status tab (figure 7.9) provides information on the stream states of the video streams.
The stream state of a signal stream is reported as Idle, Waiting, or Ok.
Ok
Idle
Waiting

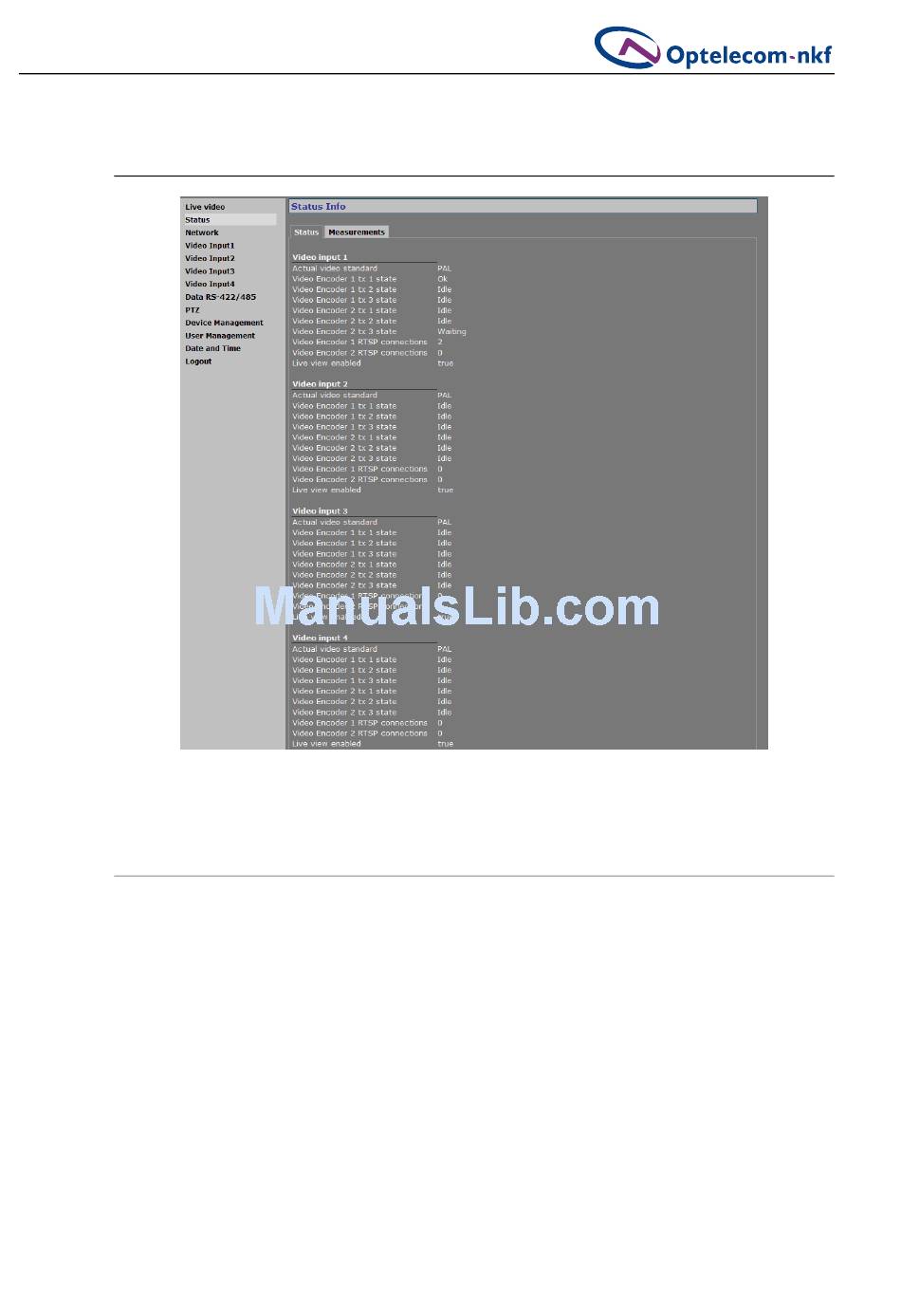

Figure 7.9 Status page, Status tab: a snapshot with automatic page updating
There is nothing wrong with the stream.
If the video signal is removed from the video input, the tx stream will still be
reported as Ok, since the video transmitter will be sending a stream - a No
Video image - to the decoder.
The transmitter is not enabled.
The transmitter has lost its stream connection (caused by an incorrect port
number, for instance).
-or-
The receiver on the decoder side is not enabled.
-or-
No FloodGuard packets have been received for more than 3 seconds. For
details on the FloodGuard flooding prevention mechanism, see section 7.7.2.
- 32 -
