Using the internal web pages
Text # tab
Text colour/ Border/
outline colour
Font size
Predefined positions
Transparency
X- and Y-position
Show Preview>>
Encoder
<< Hide Preview

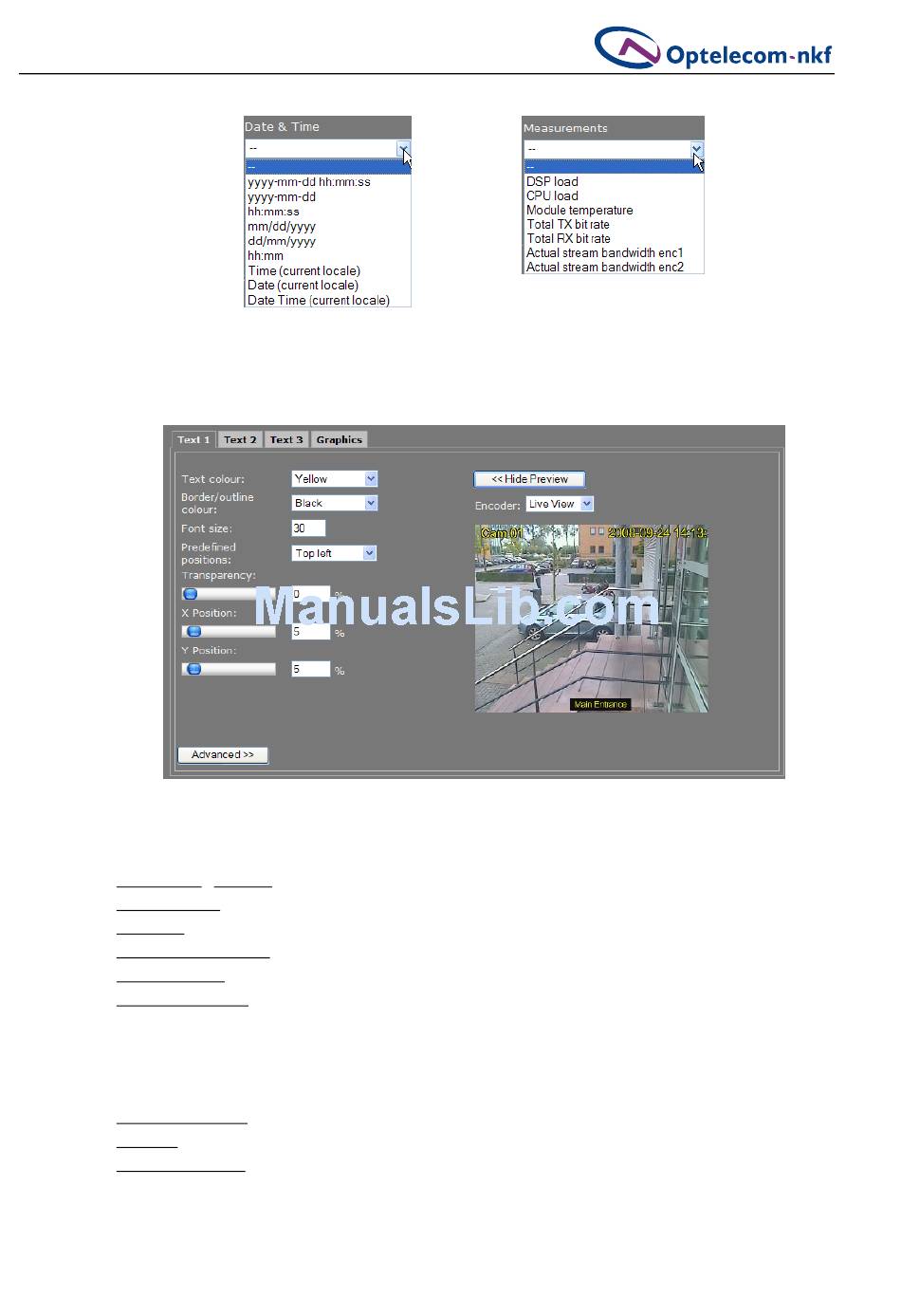

Figure 7.29 Date & Time formats
Figure 7.31 Text 1 tab with 3 OSD bars in the preview.
Render modes: 'Outline' (top left & right) and 'Border' (bottom).
Changes you make here (and in the other fields in this section) will
be immediately written into the device and reflected in the preview.
[1...256].
Presets for positioning the OSD bar.
Drag the sliding button or enter a percentage.
Enable you to freely configure an OSD bar position, instead of using
the presets. Drag the sliding buttons or enter a percentage. When a
preset has been selected, changing one of its defined parameters sets
the Predefined positions box to '--', indicating that a custom position
has been configured.
Click to see live images and the effect of your settings.
The encoder handling the images seen in the preview.
Hiding the preview may improve web page responsiveness.
