Using the internal web pages
Advanced picture settings
X- and Y-Position
anchor point
Animation speed
scaling factor
Graphic management
To upload a graphic to the module
1. Log on to Graphic management as root or admin.
2. In the Graphic management section, click
The Open dialog box displays.
3. Browse to the folder containing the graphic to be uploaded.
4. Select a file with the correct file extension (.bmp, .gif, .jpg, jpeg), and then click
Open
The file appears in the File textbox.
5. To start the upload, click
The graphic is added to the graphics list and to the Graphic drop-down list in the Text
section.
To remove a graphic
1. Log on to Graphic management as root or Admin.
2. In the Graphic management section, select the font.
3. Click the

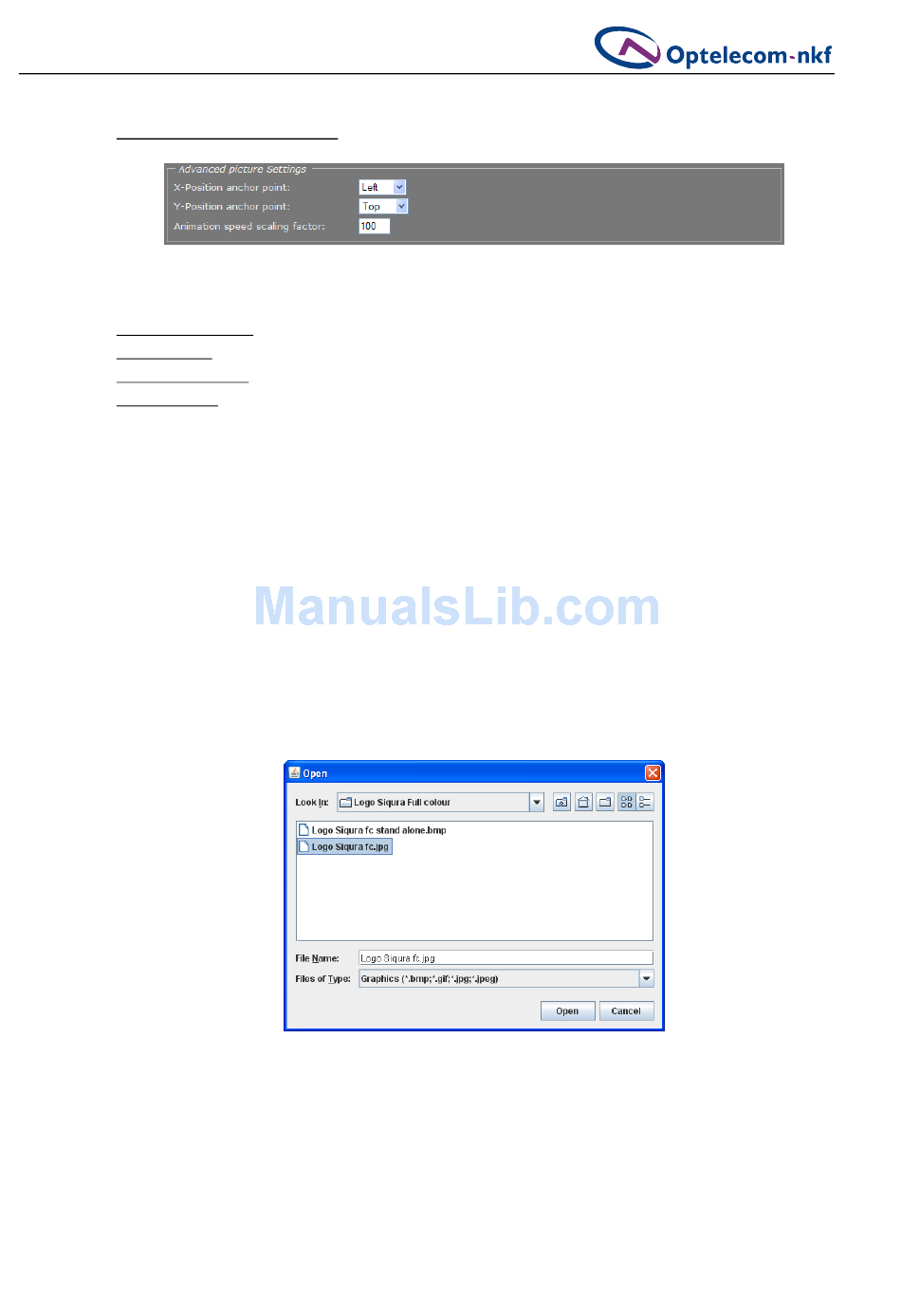

Figure 7.36 Graphics tab, Advanced picture settings
Enable you to position the graphic relative to the anchor point.
Enables you to set the speed for an animated GIF graphic.
(figure 7.37).
Add
button.
Del
.
Browse
.
Figure 7.37 Selecting a font
