Using the internal web pages

7.6. Network

IP settings
On the Network page, you can set the IP address, subnet mask and gateway IP address.
For correct functioning of the C-54 E, it is vital to set its network addressing to be compatible
with the subnet it is hooked into.
The factory-set IP address of the module is in the 10.x.x.x range with a subnet mask of
255.0.0.0. Achieving initial communication with the module requires that the network
adapter of the browsing PC is set to the factory default subnet of the C-54 E (for details, see
section 5.1). Having made the internal web pages accessible in this way, you can use the
Network page to change the default network settings to the desired settings.
For IP address input to be valid, the module IP address:
must be within the 1.0.0.1 – 223.255.255.254 range
cannot start with 127 (reserved for loopback on local host)
Do not forget to
important

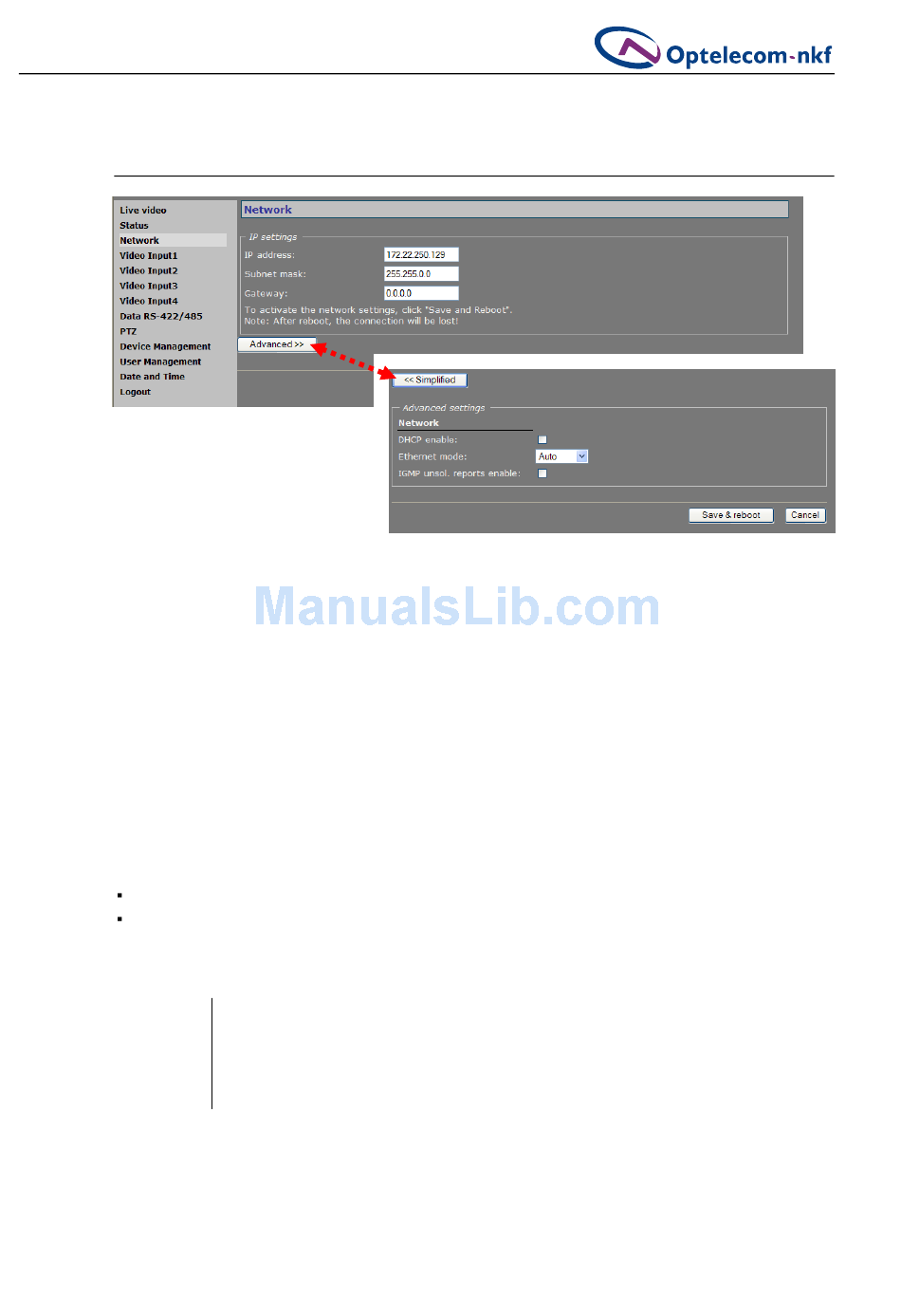

Figure 7.11 Network page, basic (top) and advanced settings (bottom)
after changing IP settings.
SAVE & REBOOT
It is essential to set at least the IP address correctly and keep the value on
record, otherwise management of the module will require special software.
Note that the subnet mask is also required.
- 34 -
