Using the internal web pages
TCP server settings
Server Enable
Server port
TCP connections are always bidirectional, so no separate transmitter and receiver settings
are needed.
Advanced settings
RS-4xx settings and data transfer optimization
For details about 'data words' and data transfer optimization, see the note below.
Bit rate
UART gap
timeout
UART max.
latency
Line
termination
enable
Line biasing
enable

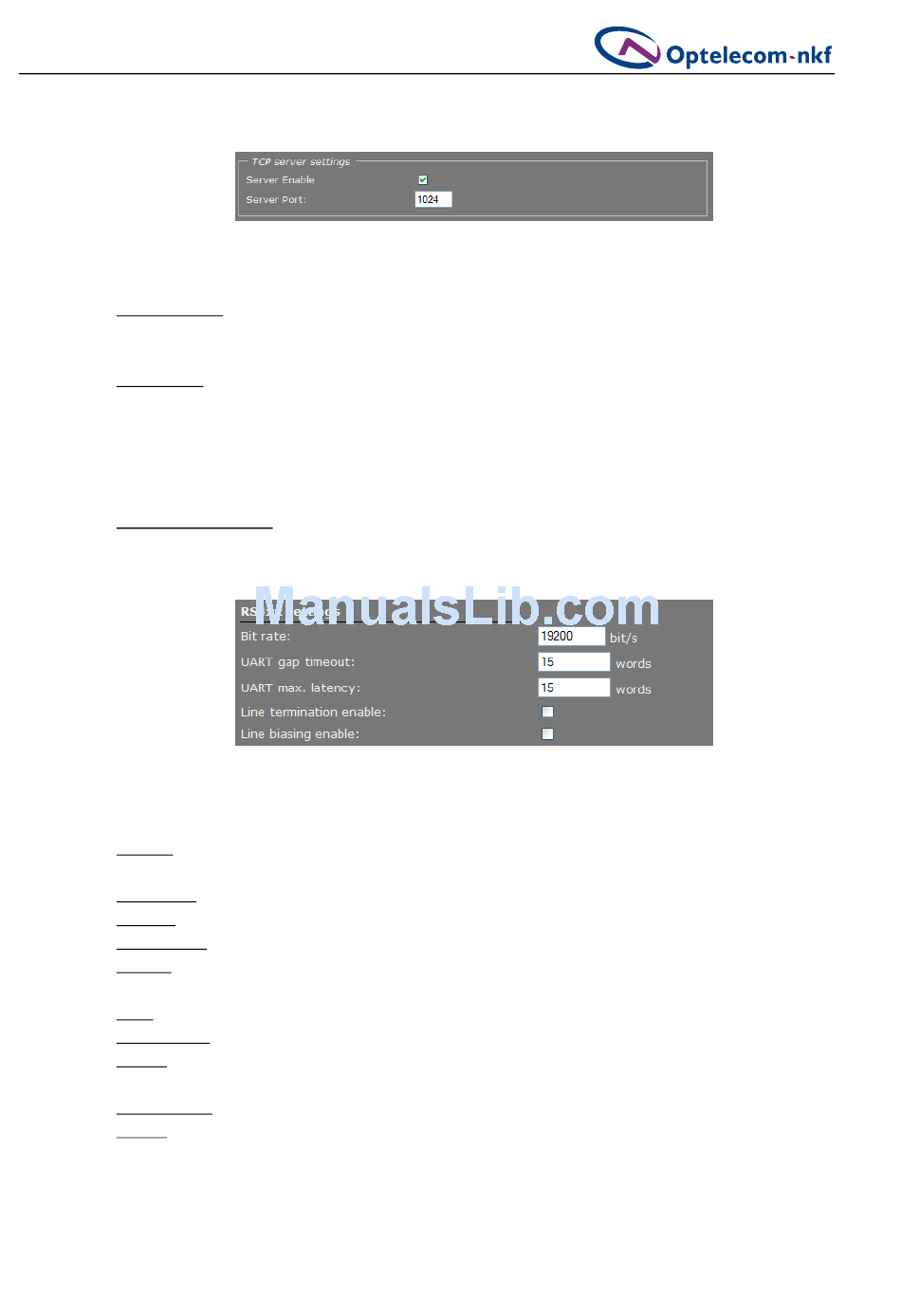

Figure 7.50 TCP server settings
Selecting the check box will enable the streaming of UART data over TCP
using a client/server connection. The server accepts requests from a
specific client, or any host if not specified.
[0...65535].
Figure 7.51 Advanced settings, RS-4xx
[300...115200]. Enables you to set a bit rate other than the presets in the
UART settings section.
[0...255] data words. Will have the next packet sent when the line has
remained idle for longer than the timeout.
[0...255] data words. The maximum latency of the data channel is
controlled by forcing a packet to be sent when the first data word of the
packet was received longer ago than the number of word times set here.
Normally, the devices at the two extremes of a bus are terminated, while
intermediate devices are not. Therefore: RS-422, always enable (being
point-to-point); RS-485, enable only for the first and last module
connected to the bus configuration.
If biasing is needed (RS-485), it should be enabled on at least 1 module
on the bus. RS-422 does not require biasing.
