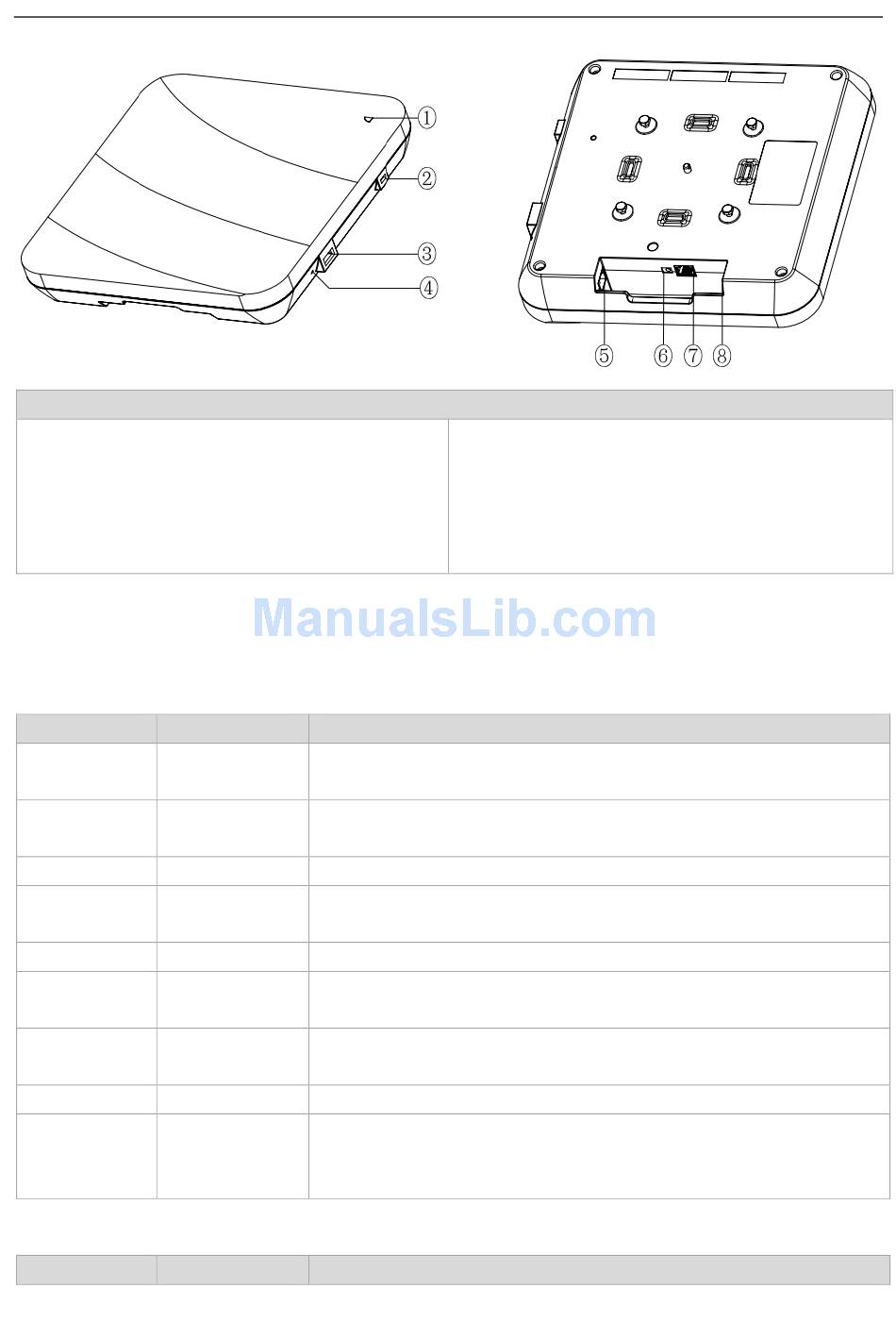

1. LED Indicator
2. Laptop lock
3. USB port
4. Reset button

1.3 LED Indicators

Fit AP
State Frequency
Off N/A
Blinking green 3Hz
Blinking red 3Hz
Blinking blue 3Hz
Blinking orange 3Hz
Solid blue N/A
Breathing blue Gradually fading
Solid red N/A
Double blinking 3Hz (on and off for
red 2 cycles
alternately)
Fat AP
State Frequency
5. LAN1/PoE Ethernet port
6. 48V DC power supply input port
7. Console port
8. LAN2/PoE Ethernet port
Meaning
The AP is NOT receiving power in the Silent mode. This mode can be disabled
using software.
Initialization is in progress. Continuously blinking green indicates abnormal
operation.
Initialization is complete, but the Ethernet port is not connected.
Initialization is complete, and the AP is establishing a CAPWAP connection
with an AC.
Firmware upgrade in progress. Do not power off.
Normal operation, normal CAPWAP connection, but no wireless clients are
associated with the AP.
Normal operation, normal CAPWAP connection, at least one wireless client is
associated with the AP.
Warnings (software defined )
Locating AP
Meaning
