Product Image

The AP provides two 10/100/1000Base-T Ethernet ports (PoE-capable), one Console port, one power port for external
power supply, one USB port and one reset button.

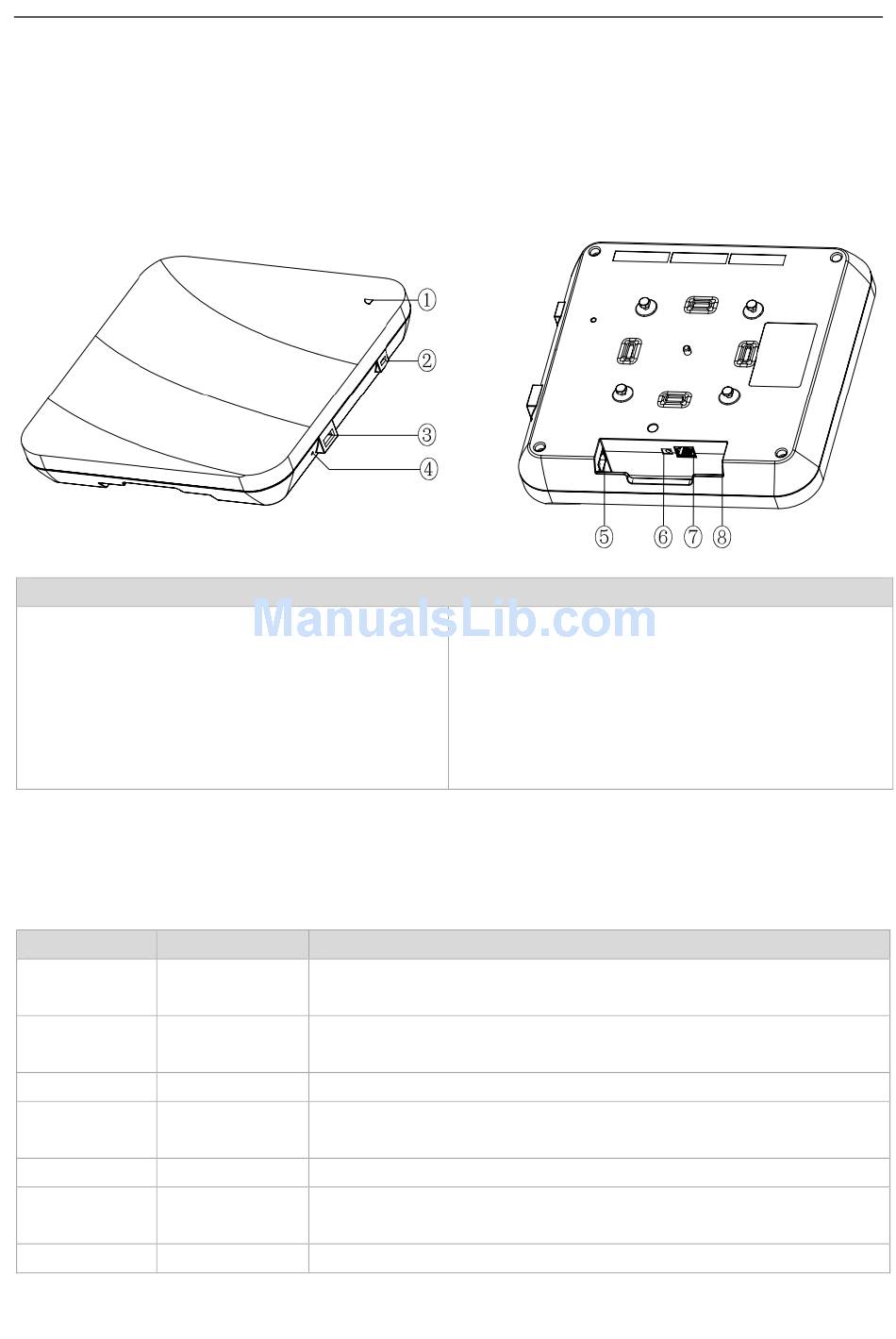

Figure 1-1 Image of RG-AP740-I
Note
1. LED Indicator
2. Laptop lock
3. USB port
4. Reset button

LED Indicators

Fit AP
State Frequency
Off N/A
Blinking green 3Hz
Blinking red 3Hz
Blinking blue 3Hz
Blinking orange 3Hz
Solid blue N/A
Breathing blue Gradually
5. LAN1/PoE Ethernet port
6. 48V DC power supply input port
7. Console port
8. LAN2/PoE Ethernet port
Meaning
The AP is NOT receiving power. Or the AP is in Do Not Disturb mode, which
can be disabled by software.
Initialization is in progress. But continuously blinking green indicates abnormal
operation.
Initialization is complete, but the Ethernet port is not connected.
Initialization is complete, and the AP is establishing a CAPWAP connection
with an AC.
Firmware upgrade in progress. Do not power off.
Normal operation, normal CAPWAP connection, but no wireless clients are
associated with the AP.
Normal operation, normal CAPWAP connection, at least one wireless client is
Product Overview
·
