1.2 Product Image

The AP provides three 10/100/1000Base-T Ethernet ports, one Console port, one power port for an external power
supply, one USB port and one reset button.

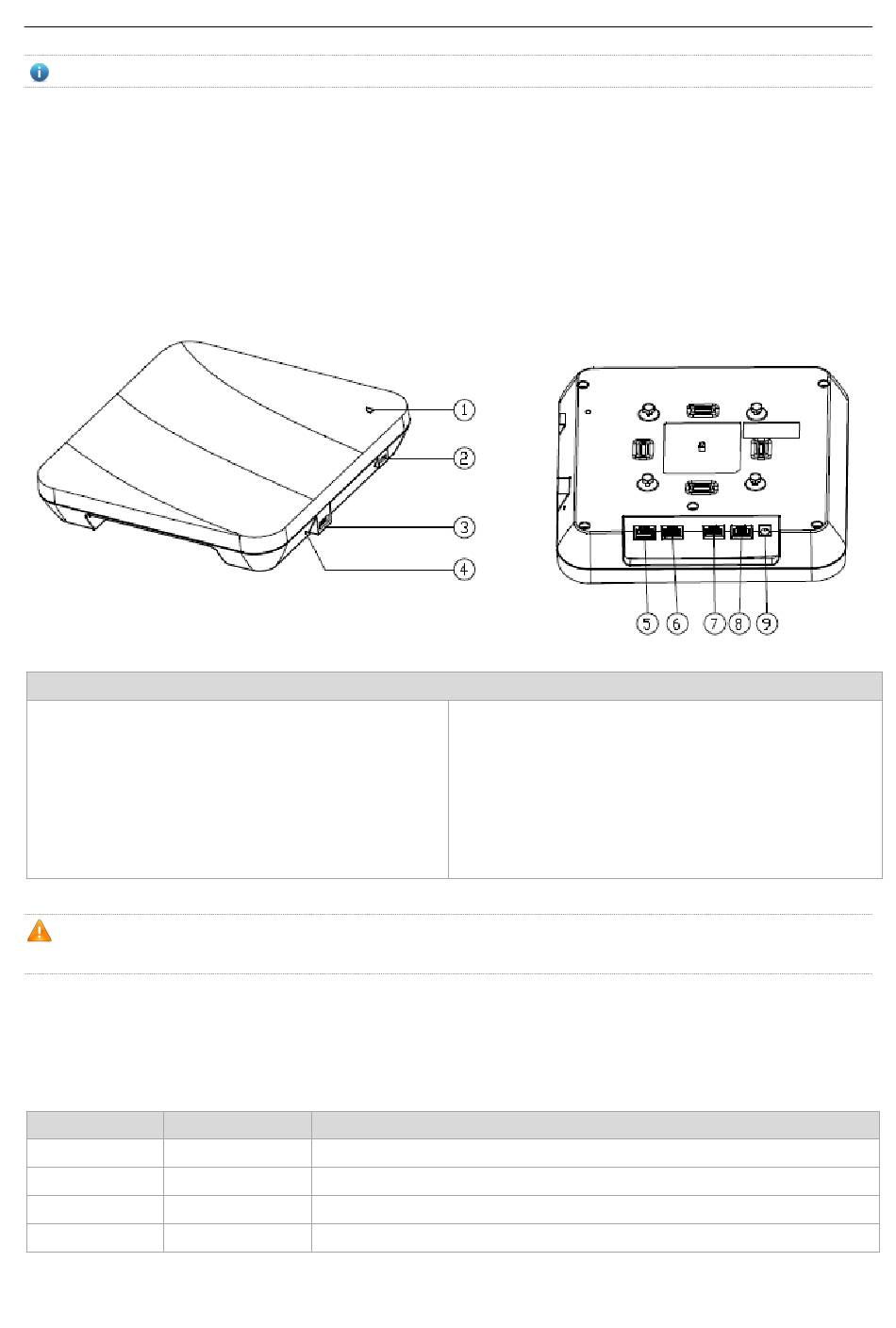

Figure 1-1 Appearance of the RG-AP840-I
Note
1. LED Indicator
2. Laptop lock
3. USB port
4. Reset button
5. Console Port
The PoE-enabled LAN3 port is accessible only to Ruijie's IoT modules. Connecting other modules may cause
damage. (By default, the LAN3 port does not supply power.)

1.3 LED Indicators

Fit AP
State Frequency
Off N/A
Blinking green 3Hz
Solid green N/A
Blinking red 3Hz
6. LAN3 port/IoT port
7. LAN2 port
8. LAN2/PoE port
9. Port for external power supply
Meaning
The AP is NOT receiving power. This mode can be disabled using software.
uBoot program initialization in progress.
Main program initialization in progress.
Initialization is complete, but LAN1 and LAN2 ports are not connected.
