Hardware Installation and Reference Guide

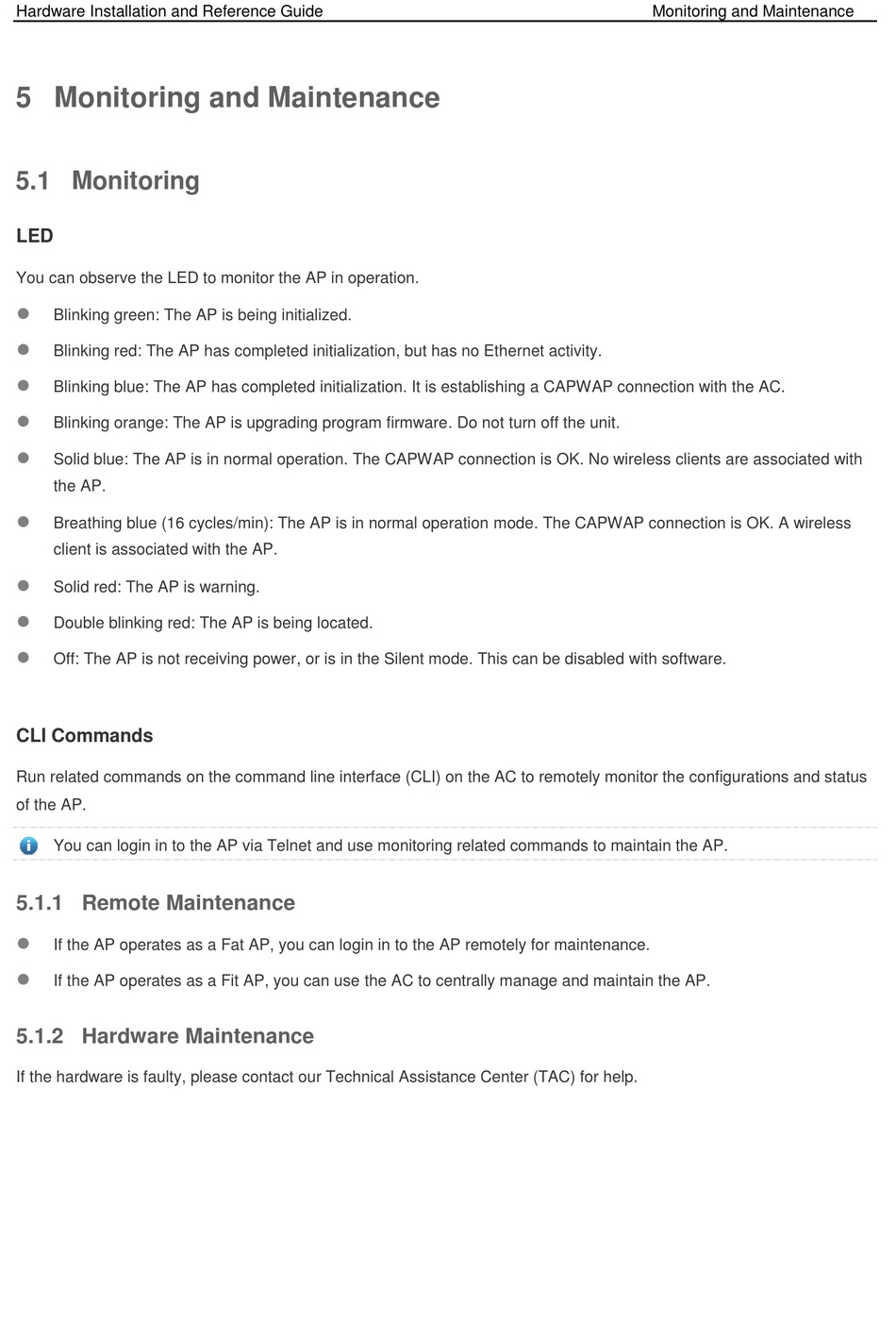

5 Monitoring and Maintenance

5.1 Monitoring
LED
You can observe the LED to monitor the AP in operation.

Blinking green: The AP is being initialized.

Blinking red: The AP has completed initialization, but has no Ethernet activity.

Blinking blue: The AP has completed initialization. It is establishing a CAPWAP connection with the AC.

Blinking orange: The AP is upgrading program firmware. Do not turn off the unit.

Solid blue: The AP is in normal operation. The CAPWAP connection is OK. No wireless clients are associated with
the AP.

Breathing blue (16 cycles/min): The AP is in normal operation mode. The CAPWAP connection is OK. A wireless
client is associated with the AP.

Solid red: The AP is warning.

Double blinking red: The AP is being located.

Off: The AP is not receiving power, or is in the Silent mode. This can be disabled with software.
CLI Commands
Run related commands on the command line interface (CLI) on the AC to remotely monitor the configurations and status
of the AP.
You can login in to the AP via Telnet and use monitoring related commands to maintain the AP.

5.1.1 Remote Maintenance


If the AP operates as a Fat AP, you can login in to the AP remotely for maintenance.

If the AP operates as a Fit AP, you can use the AC to centrally manage and maintain the AP.
5.1.2 Hardware Maintenance
If the hardware is faulty, please contact our Technical Assistance Center (TAC) for help.
