2. Installation

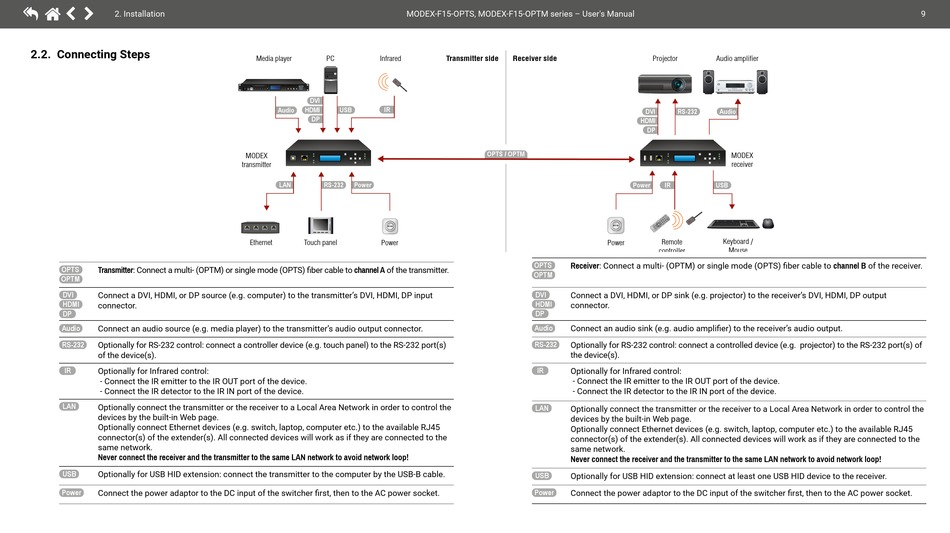

2.2. Connecting Steps
OPTS
Transmitter: Connect a multi- (OPTM) or single mode (OPTS) fiber cable to channel A of the transmitter.
OPTM
DVI Connect a DVI, HDMI, or DP source (e.g. computer) to the transmitter's DVI, HDMI, DP input
HDMI
connector.
DP
Audio Connect an audio source (e.g. media player) to the transmitter's audio output connector.
RS-232 Optionally for RS-232 control: connect a controller device (e.g. touch panel) to the RS-232 port(s)
of the device(s).
IR
Optionally for Infrared control:
- Connect the IR emitter to the IR OUT port of the device.
- Connect the IR detector to the IR IN port of the device.
LAN
Optionally connect the transmitter or the receiver to a Local Area Network in order to control the
devices by the built-in Web page.
Optionally connect Ethernet devices (e.g. switch, laptop, computer etc.) to the available RJ45
connector(s) of the extender(s). All connected devices will work as if they are connected to the
same network.
Never connect the receiver and the transmitter to the same LAN network to avoid network loop!
USB Optionally for USB HID extension: connect the transmitter to the computer by the USB-B cable.
Power
Connect the power adaptor to the DC input of the switcher first, then to the AC power socket.
MODEX-F15-OPTS, MODEX-F15-OPTM series – User's Manual
Media player PC Infrared
DVI
HDMI USB IR
Audio
DP
MODEX
transmitter
LAN RS-232 Power
Ethernet Touch panel Power
Transmitter side Receiver side
OPTS / OPTM
Power
OPTS
Receiver: Connect a multi- (OPTM) or single mode (OPTS) fiber cable to channel B of the receiver.
OPTM
DVI Connect a DVI, HDMI, or DP sink (e.g. projector) to the receiver's DVI, HDMI, DP output
HDMI
connector.
DP
Audio Connect an audio sink (e.g. audio amplifier) to the receiver's audio output.
RS-232
Optionally for RS-232 control: connect a controlled device (e.g. projector) to the RS-232 port(s) of
the device(s).
IR
Optionally for Infrared control:
- Connect the IR emitter to the IR OUT port of the device.
- Connect the IR detector to the IR IN port of the device.
LAN
Optionally connect the transmitter or the receiver to a Local Area Network in order to control the
devices by the built-in Web page.
Optionally connect Ethernet devices (e.g. switch, laptop, computer etc.) to the available RJ45
connector(s) of the extender(s). All connected devices will work as if they are connected to the
same network.
Never connect the receiver and the transmitter to the same LAN network to avoid network loop!
USB Optionally for USB HID extension: connect at least one USB HID device to the receiver.
Power
Connect the power adaptor to the DC input of the switcher first, then to the AC power socket.
Projector Audio amplifier
DVI RS-232 Audio
HDMI
DP
MODEX
receiver
Power IR USB
Keyboard /
Remote
Mouse
controller
