3. Product Overview
Transmitter Frames
Frame type
MODEX-F15-OPTS-TX
MODEX-F15-OPTM-TX

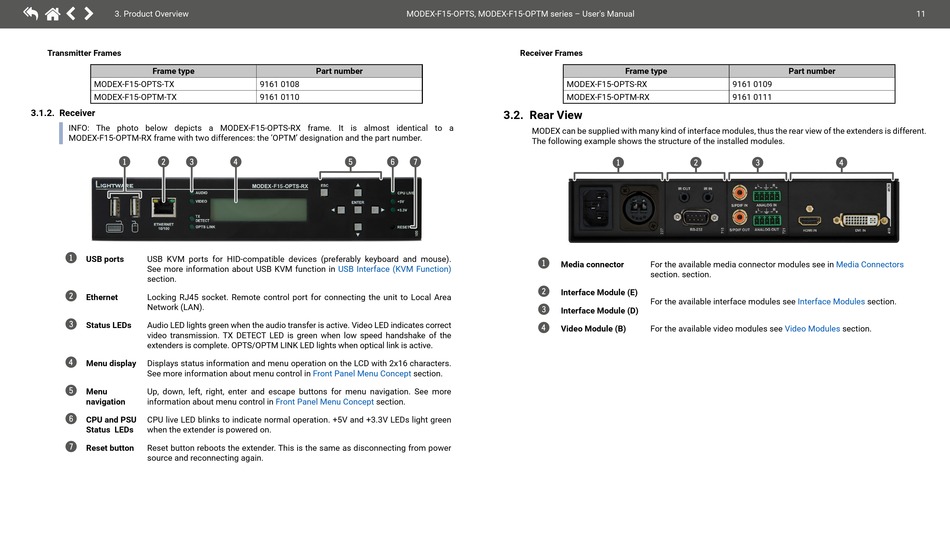

3.1.2. Receiver
INFO: The photo below depicts a MODEX-F15-OPTS-RX frame. It is almost identical to a
MODEX-F15-OPTM-RX frame with two differences: the 'OPTM' designation and the part number.
1 2 3
1
USB ports USB KVM ports for HID-compatible devices (preferably keyboard and mouse).
See more information about USB KVM function in
section.
2
Ethernet Locking RJ45 socket. Remote control port for connecting the unit to Local Area
Network (LAN).
3
Status LEDs Audio LED lights green when the audio transfer is active. Video LED indicates correct
video transmission. TX DETECT LED is green when low speed handshake of the
extenders is complete. OPTS/OPTM LINK LED lights when optical link is active.
4
Menu display Displays status information and menu operation on the LCD with 2x16 characters.
See more information about menu control in
5
Menu Up, down, left, right, enter and escape buttons for menu navigation. See more
navigation information about menu control in
6
CPU and PSU CPU live LED blinks to indicate normal operation. +5V and +3.3V LEDs light green
Status LEDs when the extender is powered on.
7
Reset button Reset button reboots the extender. This is the same as disconnecting from power
source and reconnecting again.
MODEX-F15-OPTS, MODEX-F15-OPTM series – User's Manual
Part number
9161 0108
9161 0110
4 5 6
USB Interface (KVM Function)
Front Panel Menu Concept
Front Panel Menu Concept section.
Receiver Frames
MODEX-F15-OPTS-RX
MODEX-F15-OPTM-RX
3.2. Rear View
MODEX can be supplied with many kind of interface modules, thus the rear view of the extenders is different.
The following example shows the structure of the installed modules.
7
1
Media connector
2
Interface Module (E)
3
Interface Module (D)
4
Video Module (B)
section.
Frame type Part number
9161 0109
9161 0111
1 2 3
For the available media connector modules see in
section. section.
For the available interface modules see
For the available video modules see Video Modules
11
4
Media Connectors
Interface Modules section.
