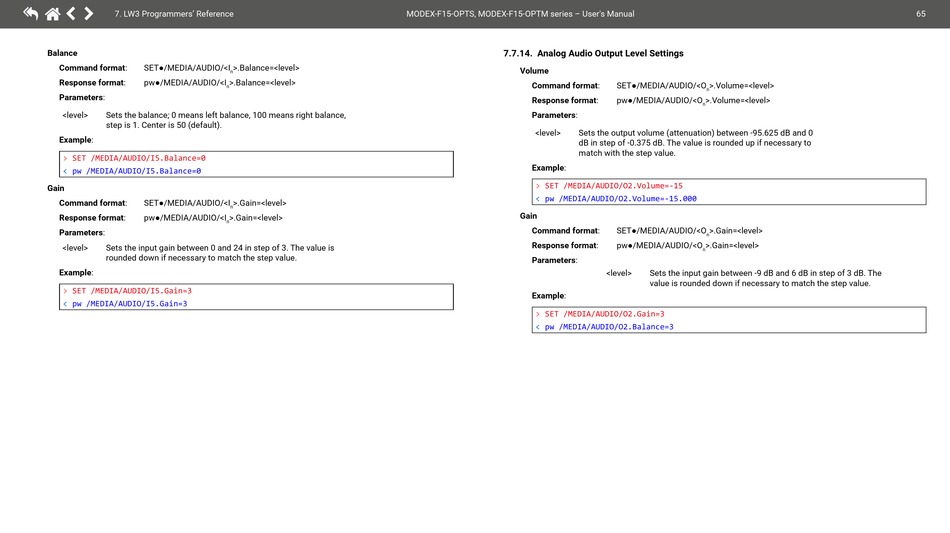

7. LW3 Programmers' Reference
Balance
Command format: SET●/MEDIA/AUDIO/<I
Response format: pw●/MEDIA/AUDIO/<I
Parameters:
<level> Sets the balance; 0 means left balance, 100 means right balance,
step is 1. Center is 50 (default).
Example:
˃ SET /MEDIA/AUDIO/I5.Balance=0
˂ pw /MEDIA/AUDIO/I5.Balance=0
Gain
Command format: SET●/MEDIA/AUDIO/<I
Response format: pw●/MEDIA/AUDIO/<I
Parameters:
<level> Sets the input gain between 0 and 24 in step of 3. The value is
rounded down if necessary to match the step value.
Example:
˃ SET /MEDIA/AUDIO/I5.Gain=3
˂ pw /MEDIA/AUDIO/I5.Gain=3
>.Balance=<level>
n
>.Balance=<level>
n
>.Gain=<level>
n
>.Gain=<level>
n
MODEX-F15-OPTS, MODEX-F15-OPTM series – User's Manual
7.7.14. Analog Audio Output Level Settings
Volume
Command format:
Response format:
Parameters:
<level> Sets the output volume (attenuation) between -95.625 dB and 0
dB in step of -0.375 dB. The value is rounded up if necessary to
match with the step value.
Example:
˃ SET /MEDIA/AUDIO/O2.Volume=-15
˂ pw /MEDIA/AUDIO/O2.Volume=-15.000
Gain
Command format:
Response format:
Parameters:
Example:
˃ SET /MEDIA/AUDIO/O2.Gain=3
˂ pw /MEDIA/AUDIO/O2.Balance=3
SET●/MEDIA/AUDIO/<O >.Volume=<level>
n
pw●/MEDIA/AUDIO/<O >.Volume=<level>
n
SET●/MEDIA/AUDIO/<O >.Gain=<level>
n
pw●/MEDIA/AUDIO/<O >.Gain=<level>
n
<level> Sets the input gain between -9 dB and 6 dB in step of 3 dB. The
value is rounded down if necessary to match the step value.
65
