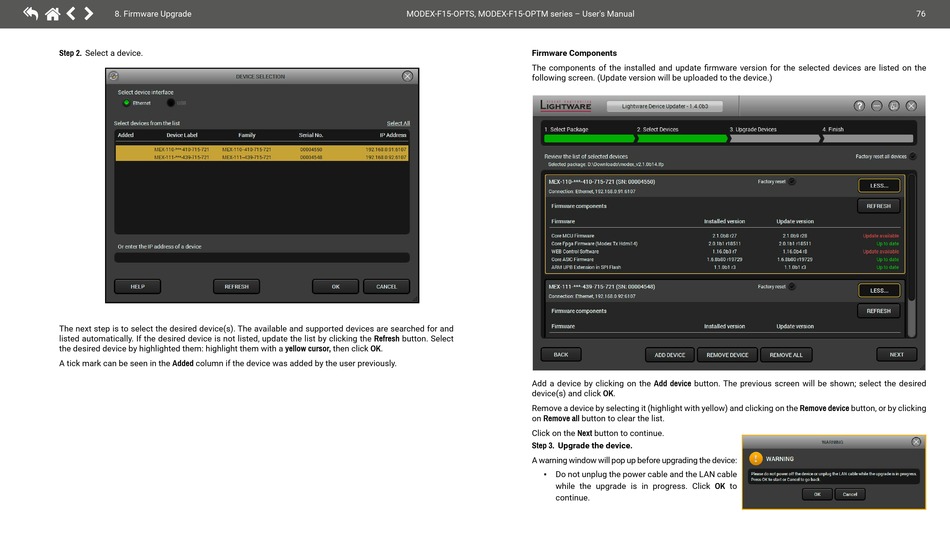

Lightware MODEX-F15-OPTS-TX User Manual page 76


  
8. Firmware Upgrade
Step 2. Select a device.
The next step is to select the desired device(s). The available and supported devices are searched for and
listed automatically. If the desired device is not listed, update the list by clicking the Refresh button. Select
the desired device by highlighted them: highlight them with a yellow cursor, then click OK.
A tick mark can be seen in the Added column if the device was added by the user previously.
MODEX-F15-OPTS, MODEX-F15-OPTM series – User's Manual
Firmware Components
The components of the installed and update firmware version for the selected devices are listed on the
following screen. (Update version will be uploaded to the device.)
Add a device by clicking on the Add device button. The previous screen will be shown; select the desired
device(s) and click OK.
Remove a device by selecting it (highlight with yellow) and clicking on the Remove device button, or by clicking
on Remove all button to clear the list.
Click on the Next button to continue.
Step 3. Upgrade the device.
A warning window will pop up before upgrading the device:
▪ Do not unplug the power cable and the LAN cable
while the upgrade is in progress. Click OK to
continue.
76
