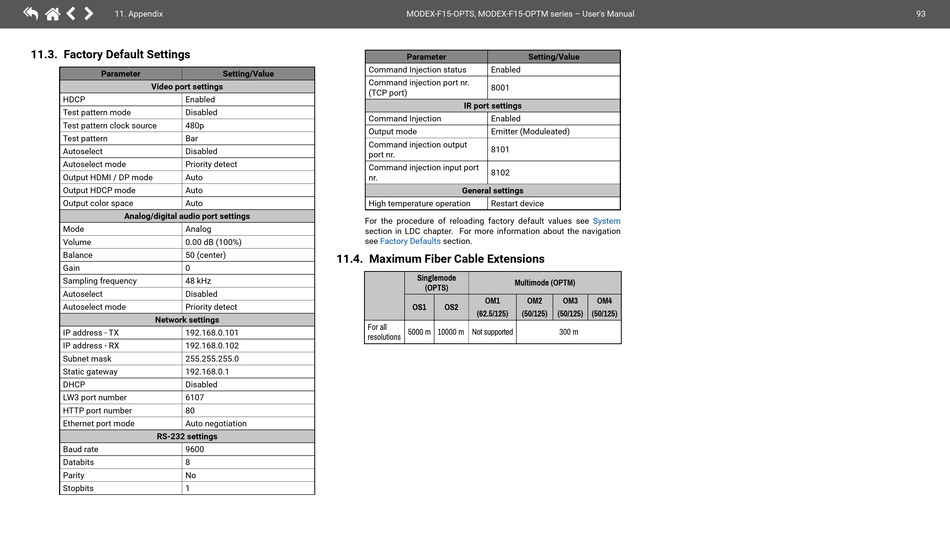

11. Appendix
11.3. Factory Default Settings
Parameter
Video port settings
HDCP Enabled
Test pattern mode Disabled
Test pattern clock source 480p
Test pattern Bar
Autoselect Disabled
Autoselect mode Priority detect
Output HDMI / DP mode Auto
Output HDCP mode Auto
Output color space Auto
Analog/digital audio port settings
Mode Analog
Volume 0.00 dB (100%)
Balance 50 (center)
Gain 0
Sampling frequency 48 kHz
Autoselect Disabled
Autoselect mode Priority detect
Network settings
IP address - TX 192.168.0.101
IP address - RX 192.168.0.102
Subnet mask 255.255.255.0
Static gateway 192.168.0.1
DHCP Disabled
LW3 port number 6107
HTTP port number 80
Ethernet port mode Auto negotiation
RS-232 settings
Baud rate 9600
Databits 8
Parity No
Stopbits 1
Command Injection status
Setting/Value
Command injection port nr.
(TCP port)
Command Injection
Output mode
Command injection output
port nr.
Command injection input port
nr.
High temperature operation
For the procedure of reloading factory default values see
section in LDC chapter. For more information about the navigation
see Factory Defaults
11.4. Maximum Fiber Cable Extensions
For all
resolutions
MODEX-F15-OPTS, MODEX-F15-OPTM series – User's Manual
Parameter Setting/Value
Enabled
8001
IR port settings
Enabled
Emitter (Moduleated)
8101
8102
General settings
Restart device
section.
Singlemode
Multimode (OPTM)
(OPTS)
OM1 OM2 OM3
OS1 OS2
(62.5/125) (50/125) (50/125) (50/125)
5000 m 10000 m Not supported 300 m
System
OM4
93
