6. Software Control - Using Lightware Device Controller

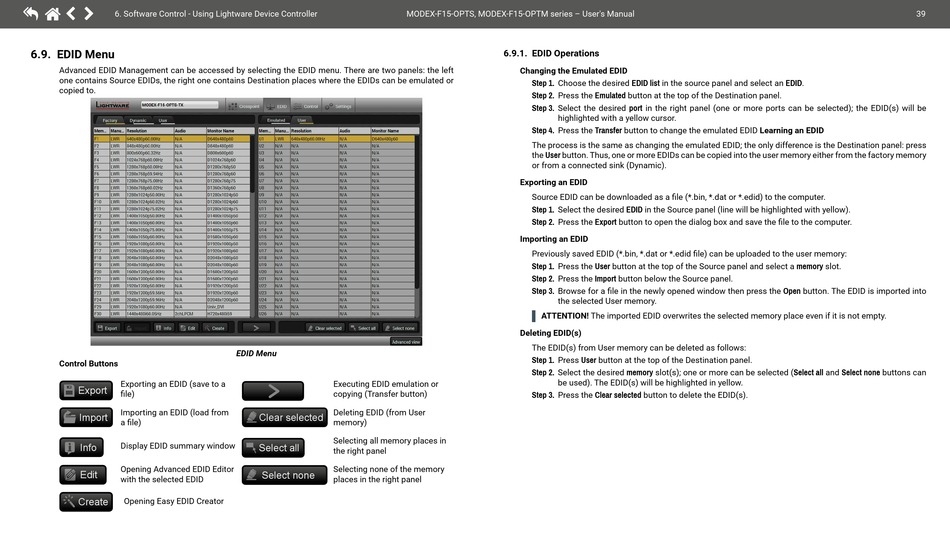

6.9. EDID Menu
Advanced EDID Management can be accessed by selecting the EDID menu. There are two panels: the left
one contains Source EDIDs, the right one contains Destination places where the EDIDs can be emulated or
copied to.
A
Control Buttons
A
Exporting an EDID (save to a
Export
file)
A
Importing an EDID (load from
Import
a file)
A
Display EDID summary window
Info
A
Opening Advanced EDID Editor
Edit
with the selected EDID
Create Opening Easy EDID Creator
MODEX-F15-OPTS, MODEX-F15-OPTM series – User's Manual

EDID Menu

A
A
Executing EDID emulation or
copying (Transfer button)
A
Deleting EDID (from User
Clear selected
memory)
A
Selecting all memory places in
Select all
the right panel
Selecting none of the memory
Select none
places in the right panel
6.9.1. EDID Operations
Changing the Emulated EDID
Step 1. Choose the desired EDID list in the source panel and select an EDID.
Step 2. Press the Emulated button at the top of the Destination panel.
Step 3. Select the desired port in the right panel (one or more ports can be selected); the EDID(s) will be
highlighted with a yellow cursor.
Step 4. Press the Transfer button to change the emulated EDID Learning an EDID
The process is the same as changing the emulated EDID; the only difference is the Destination panel: press
the User button. Thus, one or more EDIDs can be copied into the user memory either from the factory memory
or from a connected sink (Dynamic).
Exporting an EDID
Source EDID can be downloaded as a file (*.bin, *.dat or *.edid) to the computer.
Step 1. Select the desired EDID in the Source panel (line will be highlighted with yellow).
Step 2. Press the Export button to open the dialog box and save the file to the computer.
Importing an EDID
Previously saved EDID (*.bin, *.dat or *.edid file) can be uploaded to the user memory:
Step 1. Press the User button at the top of the Source panel and select a memory slot.
Step 2. Press the Import button below the Source panel.
Step 3. Browse for a file in the newly opened window then press the Open button. The EDID is imported into
the selected User memory.
ATTENTION! The imported EDID overwrites the selected memory place even if it is not empty.
Deleting EDID(s)
The EDID(s) from User memory can be deleted as follows:
Step 1. Press User button at the top of the Destination panel.
Step 2. Select the desired memory slot(s); one or more can be selected (Select all and Select none buttons can
be used). The EDID(s) will be highlighted in yellow.
Step 3. Press the Clear selected button to delete the EDID(s).
