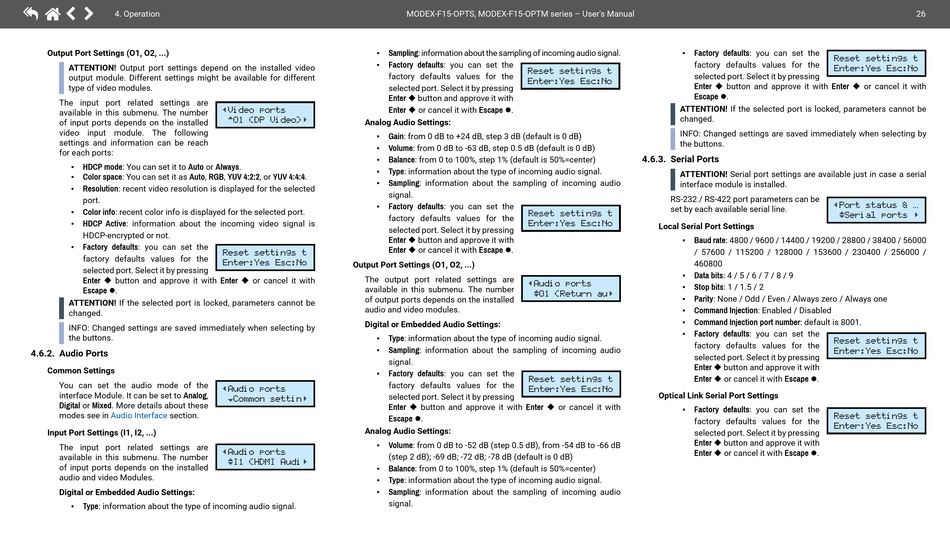

Output Port Settings (O1, O2, ...)
ATTENTION! Output port settings depend on the installed video
output module. Different settings might be available for different
type of video modules.
The input port related settings are
available in this submenu. The number
of input ports depends on the installed
video input module. The following
settings and information can be reach
for each ports:
HDCP mode: You can set it to Auto or Always.
▪
▪ Color space: You can set it as Auto, RGB, YUV 4:2:2, or YUV 4:4:4.
Resolution: recent video resolution is displayed for the selected
▪
port.
▪ Color info: recent color info is displayed for the selected port.
HDCP Active: information about the incoming video signal is
▪
HDCP-encrypted or not.
▪ Factory defaults: you can set the
factory defaults values for the
selected port. Select it by pressing
Enter  button and approve it with Enter  or cancel it with
Escape .
ATTENTION! If the selected port is locked, parameters cannot be
changed.
INFO: Changed settings are saved immediately when selecting by
the buttons.
4.6.2. Audio Ports
Common Settings
You can set the audio mode of the
interface Module. It can be set to Analog,
Digital or Mixed. More details about these
modes see in Audio Interface section.
Input Port Settings (I1, I2, ...)
The input port related settings are
available in this submenu. The number
of input ports depends on the installed
audio and video Modules.
Digital or Embedded Audio Settings:
▪ Type: information about the type of incoming audio signal.
▪ Sampling: information about the sampling of incoming audio signal.
Factory defaults: you can set the
▪
factory defaults values for the
selected port. Select it by pressing
Enter  button and approve it with
¹Video ports Enter  or cancel it with Escape .
¼O1 (DP Video)º
Analog Audio Settings:
▪ Gain: from 0 dB to +24 dB, step 3 dB (default is 0 dB)
▪ Volume: from 0 dB to -63 dB, step 0.5 dB (default is 0 dB)
Balance: from 0 to 100%, step 1% (default is 50%=center)
▪
Type: information about the type of incoming audio signal.
▪
▪ Sampling: information about the sampling of incoming audio
signal.
Factory defaults: you can set the
▪
factory defaults values for the
selected port. Select it by pressing
Enter  button and approve it with
Enter  or cancel it with Escape .
Reset settings t
Enter:Yes Esc:No
Output Port Settings (O1, O2, ...)
The output port related settings are
available in this submenu. The number
of output ports depends on the installed
audio and video modules.
Digital or Embedded Audio Settings:
Type: information about the type of incoming audio signal.
▪
▪ Sampling: information about the sampling of incoming audio
signal.
Factory defaults: you can set the
▪
factory defaults values for the
¹Audio ports
selected port. Select it by pressing
»Common settinº
Enter  button and approve it with Enter  or cancel it with
Escape .
Analog Audio Settings:
▪ Volume: from 0 dB to -52 dB (step 0.5 dB), from -54 dB to -66 dB
¹Audio ports
(step 2 dB); -69 dB; -72 dB; -78 dB (default is 0 dB)
½I1 (HDMI Audiº
Balance: from 0 to 100%, step 1% (default is 50%=center)
▪
▪ Type: information about the type of incoming audio signal.
▪ Sampling: information about the sampling of incoming audio
signal.
MODEX-F15-OPTS, MODEX-F15-OPTM series – User's Manual
Reset settings t
Enter:Yes Esc:No
Reset settings t
Enter:Yes Esc:No
¹Audio ports
½O1 (Return auº
Reset settings t
Enter:Yes Esc:No
▪ Factory defaults: you can set the
factory defaults values for the
selected port. Select it by pressing
Enter  button and approve it with Enter  or cancel it with
Escape .
ATTENTION! If the selected port is locked, parameters cannot be
changed.
INFO: Changed settings are saved immediately when selecting by
the buttons.
4.6.3. Serial Ports
ATTENTION! Serial port settings are available just in case a serial
interface module is installed.
RS-232 / RS-422 port parameters can be
set by each available serial line.
Local Serial Port Settings
▪ Baud rate: 4800 / 9600 / 14400 / 19200 / 28800 / 38400 / 56000
/ 57600 / 115200 / 128000 / 153600 / 230400 / 256000 /
460800
▪ Data bits: 4 / 5 / 6 / 7 / 8 / 9
▪ Stop bits: 1 / 1.5 / 2
Parity: None / Odd / Even / Always zero / Always one
▪
Command Injection: Enabled / Disabled
▪
▪ Command Injection port number: default is 8001.
▪ Factory defaults: you can set the
factory defaults values for the
selected port. Select it by pressing
Enter  button and approve it with
Enter  or cancel it with Escape .
Optical Link Serial Port Settings
Factory defaults: you can set the
▪
factory defaults values for the
selected port. Select it by pressing
Enter  button and approve it with
Enter  or cancel it with Escape .
