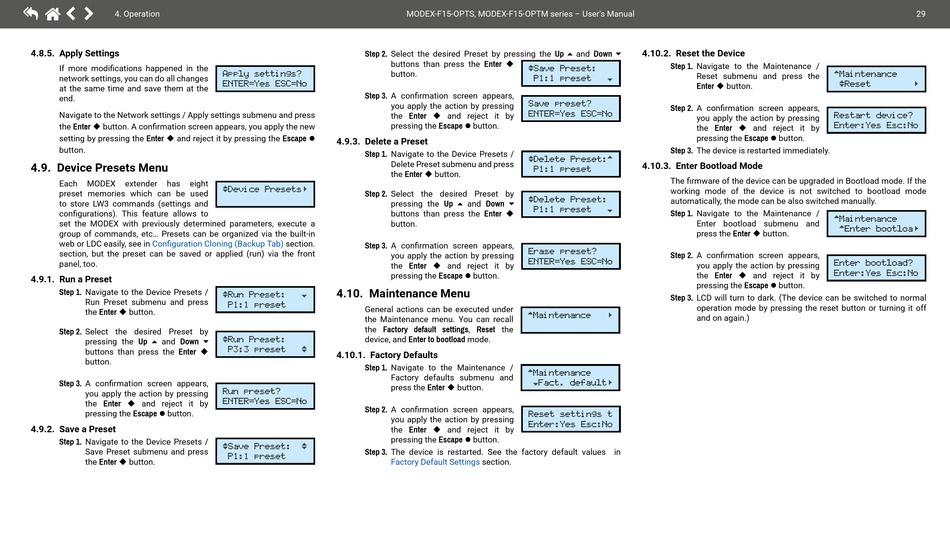

4. Operation
4.8.5. Apply Settings
If more modifications happened in the
network settings, you can do all changes
at the same time and save them at the
end.
Navigate to the Network settings / Apply settings submenu and press
the Enter  button. A confirmation screen appears, you apply the new
setting by pressing the Enter  and reject it by pressing the Escape 
button.
4.9. Device Presets Menu
Each MODEX extender has eight
preset memories which can be used
to store LW3 commands (settings and
configurations). This feature allows to
set the MODEX with previously determined parameters, execute a
group of commands, etc... Presets can be organized via the built-in
web or LDC easily, see in Configuration Cloning (Backup Tab)
section, but the preset can be saved or applied (run) via the front
panel, too.
4.9.1. Run a Preset
Step 1. Navigate to the Device Presets /
Run Preset submenu and press
the Enter  button.
Step 2. Select the desired Preset by
pressing the Up  and Down 
buttons than press the Enter 
button.
Step 3. A confirmation screen appears,
you apply the action by pressing
the Enter  and reject it by
pressing the Escape  button.
4.9.2. Save a Preset
Step 1. Navigate to the Device Presets /
Save Preset submenu and press
the Enter  button.
Step 2. Select the desired Preset by pressing the Up  and Down 
buttons than press the Enter 

Apply settings?

button.
ENTER=Yes ESC=No
Step 3. A confirmation screen appears,
you apply the action by pressing
the Enter  and reject it by
pressing the Escape  button.
4.9.3. Delete a Preset
Step 1. Navigate to the Device Presets /
Delete Preset submenu and press
the Enter  button.
½Device Presetsº
Step 2. Select the desired Preset by
pressing the Up  and Down 
buttons than press the Enter 
button.
section.
Step 3. A confirmation screen appears,
you apply the action by pressing
the Enter  and reject it by
pressing the Escape  button.
4.10. Maintenance Menu
½Run Preset: »
P1:1 preset
General actions can be executed under
the Maintenance menu. You can recall
the Factory default settings, Reset the
device, and Enter to bootload mode.
½Run Preset:
P3:3 preset ½
4.10.1. Factory Defaults
Step 1. Navigate to the Maintenance /
Factory defaults submenu and
press the Enter  button.
Run preset?
ENTER=Yes ESC=No
Step 2. A confirmation screen appears,
you apply the action by pressing
the Enter  and reject it by
pressing the Escape  button.
½Save Preset: ½
Step 3. The device is restarted. See the factory default values in
P1:1 preset
Factory Default Settings
MODEX-F15-OPTS, MODEX-F15-OPTM series – User's Manual
½Save Preset:
P1:1 preset
Save preset?
ENTER=Yes ESC=No
½Delete Preset:¼
P1:1 preset
½Delete Preset:
P1:1 preset
Erase preset?
ENTER=Yes ESC=No
¼Maintenance
¼Maintenance
»Fact. defaultº
Reset settings t
Enter:Yes Esc:No
section.
4.10.2. Reset the Device
Step 1. Navigate to the Maintenance /
Reset submenu and press the
»
Enter  button.
Step 2. A confirmation screen appears,
you apply the action by pressing
the Enter  and reject it by
pressing the Escape  button.
Step 3. The device is restarted immediately.
4.10.3. Enter Bootload Mode
The firmware of the device can be upgraded in Bootload mode. If the
working mode of the device is not switched to bootload mode
automatically, the mode can be also switched manually.
»
Step 1. Navigate to the Maintenance /
Enter bootload submenu and
press the Enter  button.
Step 2. A confirmation screen appears,
you apply the action by pressing
the Enter  and reject it by
pressing the Escape  button.
Step 3. LCD will turn to dark. (The device can be switched to normal
operation mode by pressing the reset button or turning it off
º
and on again.)
29
¼Maintenance
½Reset º
Restart device?
Enter:Yes Esc:No
¼Maintenance
¼Enter bootloaº
Enter bootload?
Enter:Yes Esc:No
