Outputs: digital outputs state. Filled activated. Empty, deactivated.
○
Inputs: digital inputs state. Filled activated. Empty, deactivated.
○
Simulation speed: controls the simulation speed, as well as pause and resume the
●
simulation. Note that, although the speed varies, this does not affect to the speeds
calculated by the unit.
Events: list of the most recent events.
●

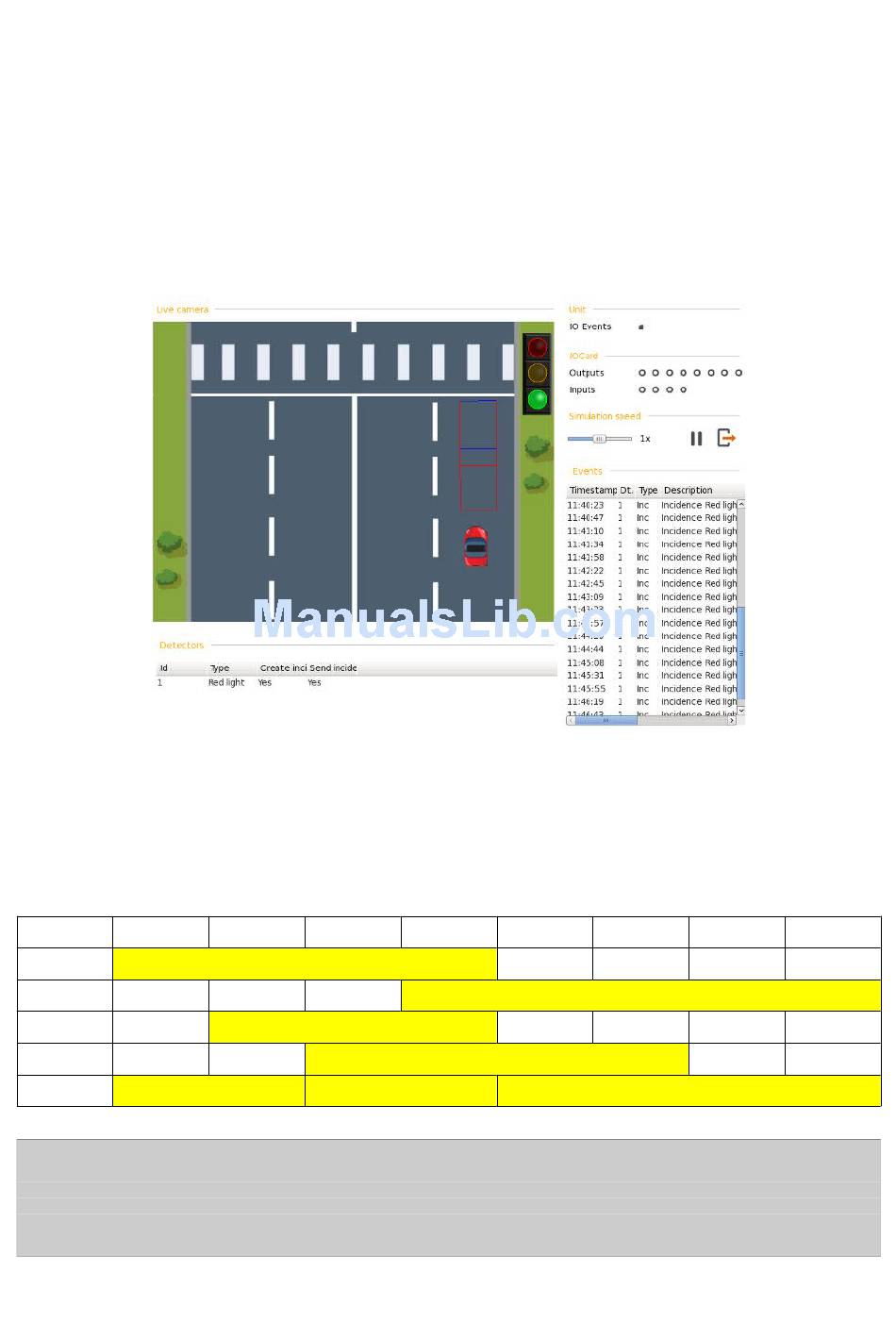

7.4. Simulation example

Example of a complete simulation. Two vehicles are driving (a truck and then a car), while
there occur changes in the I/O card and also in the traffic light.
0ms
Truck1
Car2
Input0
Input1
Tr.Lights green
#startup, traffic light is green.
0,TrafficLight,Green
#startup, truck1 driving from the image bottom.
0,Truck1,1,-10000
#1000ms later, input 0 active.
1000,Input,0,1
Quercus Technologies
213
1000ms 2000ms
driving
active
amber
3000ms 4000ms
active
5000ms 6000ms
driving
red
7000ms
