information or to request an action (activate an output, reboot the unit, etc.). All requests will
be answered immediately by the unit with a response message with the information requested,
an ACK if the message did not expect a response, or a NAK if the message could not be
properly received, interpreted, or completed.
Please note that between the reception of a request and its response, an event can occur in
the system, so that the first message to arrive after a request has been made might not be the
response to the request.

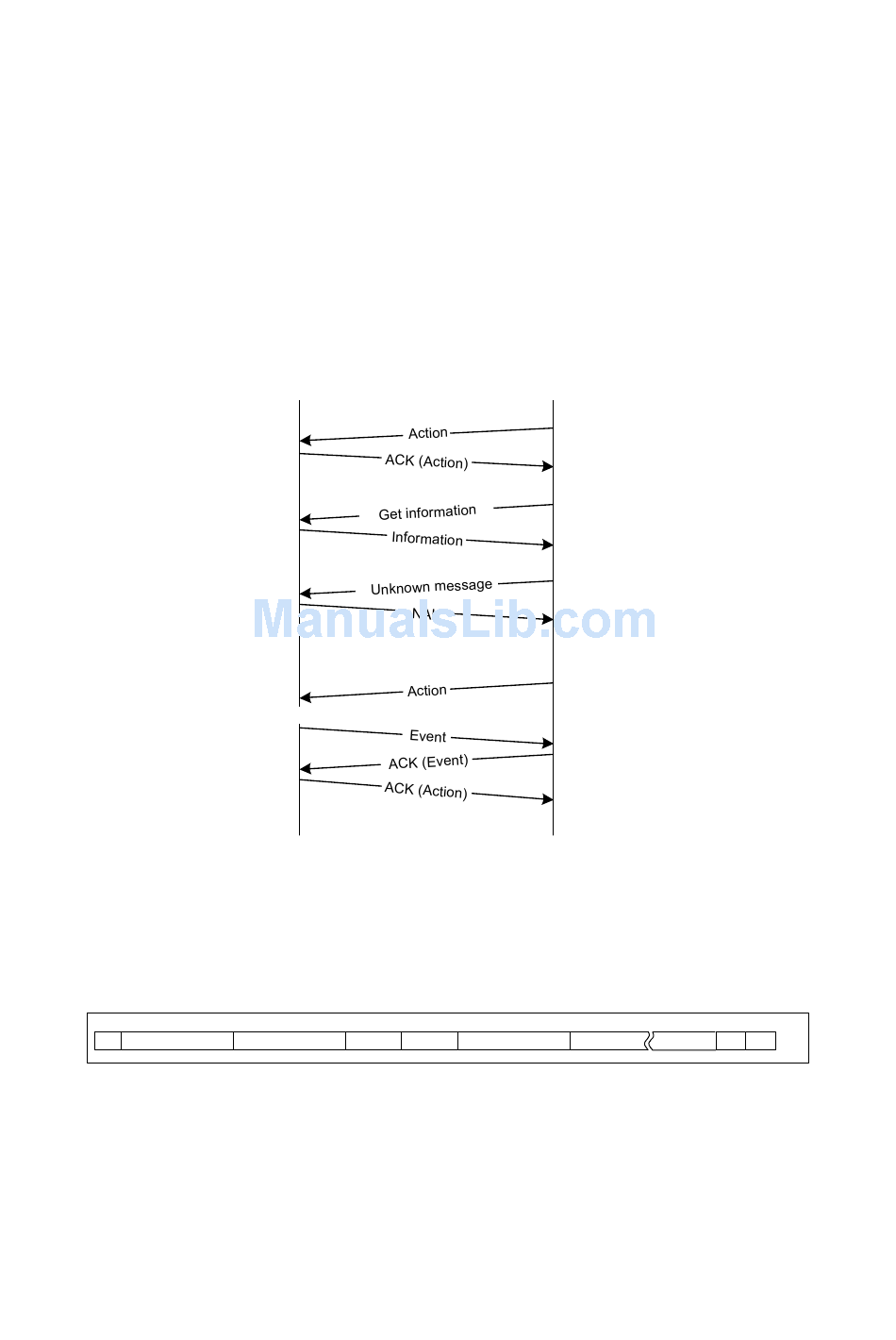

Example of requests and their responses:

4.1. Message format

Messages will always have the same format; Bytes are ordered in all fields with the "little-
endian" system:
1 4
Stx UnitId
Stx (1 byte): byte that marks the start of a frame (ASCII character 2).
●
Unit Id (4 bytes): identifier of the capture unit sending or receiving the message; a zero
●
means that this field has to be ignored.
Size (4 bytes): total size of the message in bytes.
●
Quercus Technologies
126
Unit
Event
4 2 2
Size Type Version
Central System
4
Variable
Id
Message data
1 1
Bcc Etx
