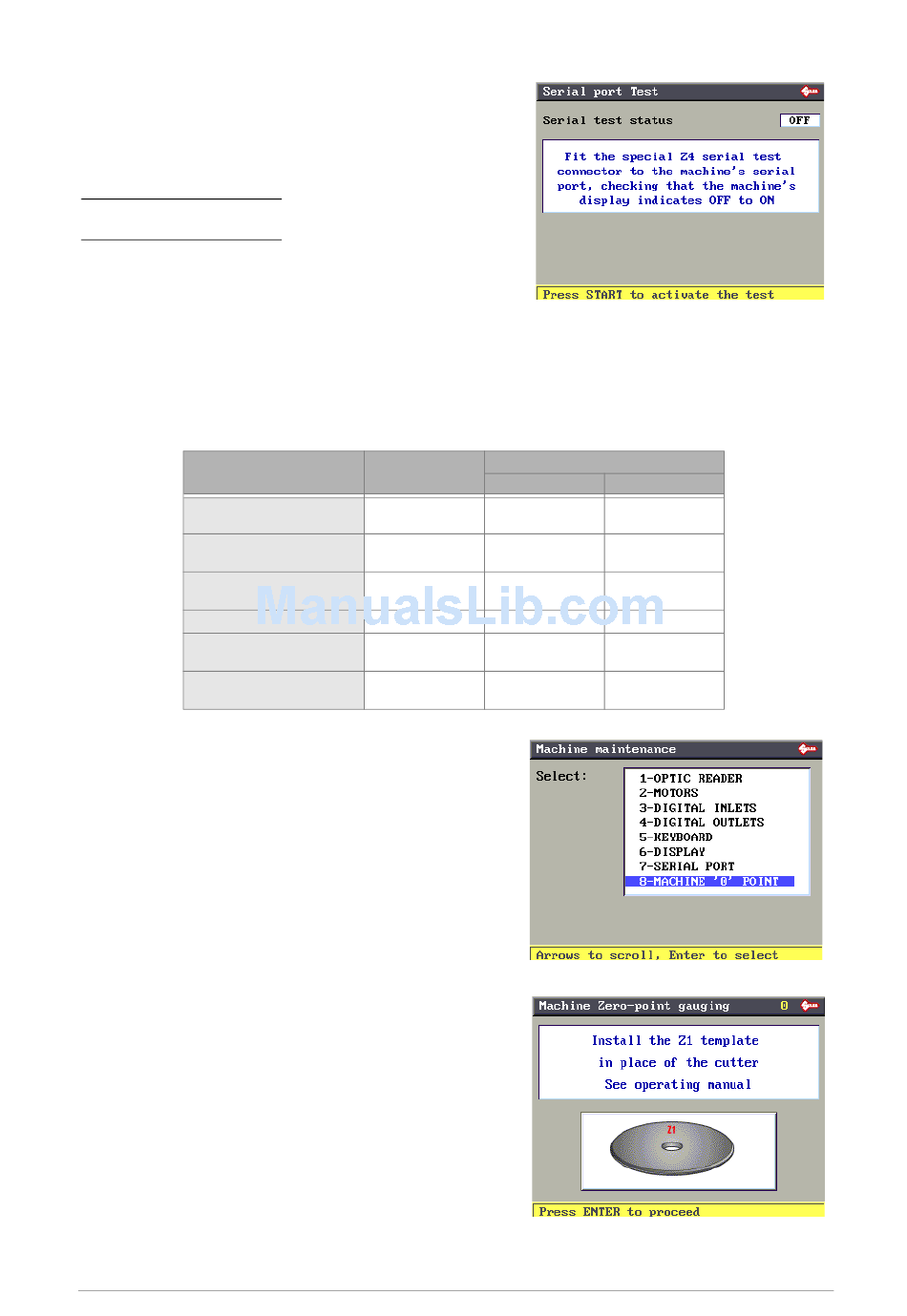

SERIAL PORT

Check that the machine's display indicates OFF.
Fit the special (Z4) serial test connector (accessories provided) to the
machine's serial port.
Press START and check that the machine's display indicates OFF to
ON.
Note: if the ON/OFF transition is not made, contact Silca's Technical
Assistance Dept.
6.10.8

MACHINE ZERO POINTS

With the use of regulating templates (Ch.1.5 "Accessories provided", page 8) the machine provides a 'self-setting' proce-
dure. These procedures must be carefully carried out following the descriptions and illustrations indicated below.
The table below indicates the situations where the Machine Zeroes function must be activated.
Replacement of
photocells
Replacement of
the electronic board
Replacement of
the Optical Reader unit
Replacement of sensors
Replacement of the cutter
shaft
Replacement of the ball
screws
Fit the template (Z1) in the place of the cutter; (to remove the cutter
read the instructions in Ch.8.3).
MACHINE ZEROES
EVENT
YES
YES
NO
YES
YES
YES
Copyright Silca 2017
CALIBRATING
CLAMPS CUTTERS
YES NO
YES NO
YES NO
YES NO
YES NO
YES NO
UNOCODE PRO
