Operating manual - English
8.14 W -T
IN RANSFER
U
GRAM AND SER
The machine is supplied with an internal program already loaded and tested in our workshops. The user therefore does
not need to carry out any operations.
Only in the situations described below can the WIN-TRANSFER program be used to re-start the machine.
The following is a list of situations where the use of the WIN-TRANSFER program is required.
• Replacement of the electronic board (see Ch. 8.6, page 78) or loss of the internal machine program.
1) replace the board with a new one, if necessary.
2) install on your personal computer the latest version received of the WinTransfer program.
3) read the serial number on the data plate on the back of the machine (ch.6.11, page 61) and enter on the machine.
4) gauge the machine according to the instructions in the manual, as follows:
- gauge as explained in chapter 6.10.8 "MACHINE ZERO POINTS" and Ch.6.9.1 "Calibrate JAWS"" in the user's
manual.
- first gauge the V100 clamp (Ch. 6.9.1, page 47) then the R100 clamp.
- continue with the gauging of remaining jaws used.
At this point the machine is set up and ready for operation.
• SILCA update for the program or machine data
1) Install the WinTransfer Program update on your personal computer, following the instructions in the program.
8.14.1

USER DATA BACKUP/RESTORE

The WinTransfer program is used to save or restore the User Parameters edited on the machine (user cutting cards, user
data, etc...).
- Start the "WinTransfer" program and select the machine model.
- - Connect a PC serial or USB cable to the key-cutting machine.
- - Select the communication port (COM) and click on "CONNECTION TEST", the machine serial number will appear in
the "Serial Number" field and the "Backup/Restore USER data" button will be enabled.
- - Click on the "Backup/Restore USER data" button.

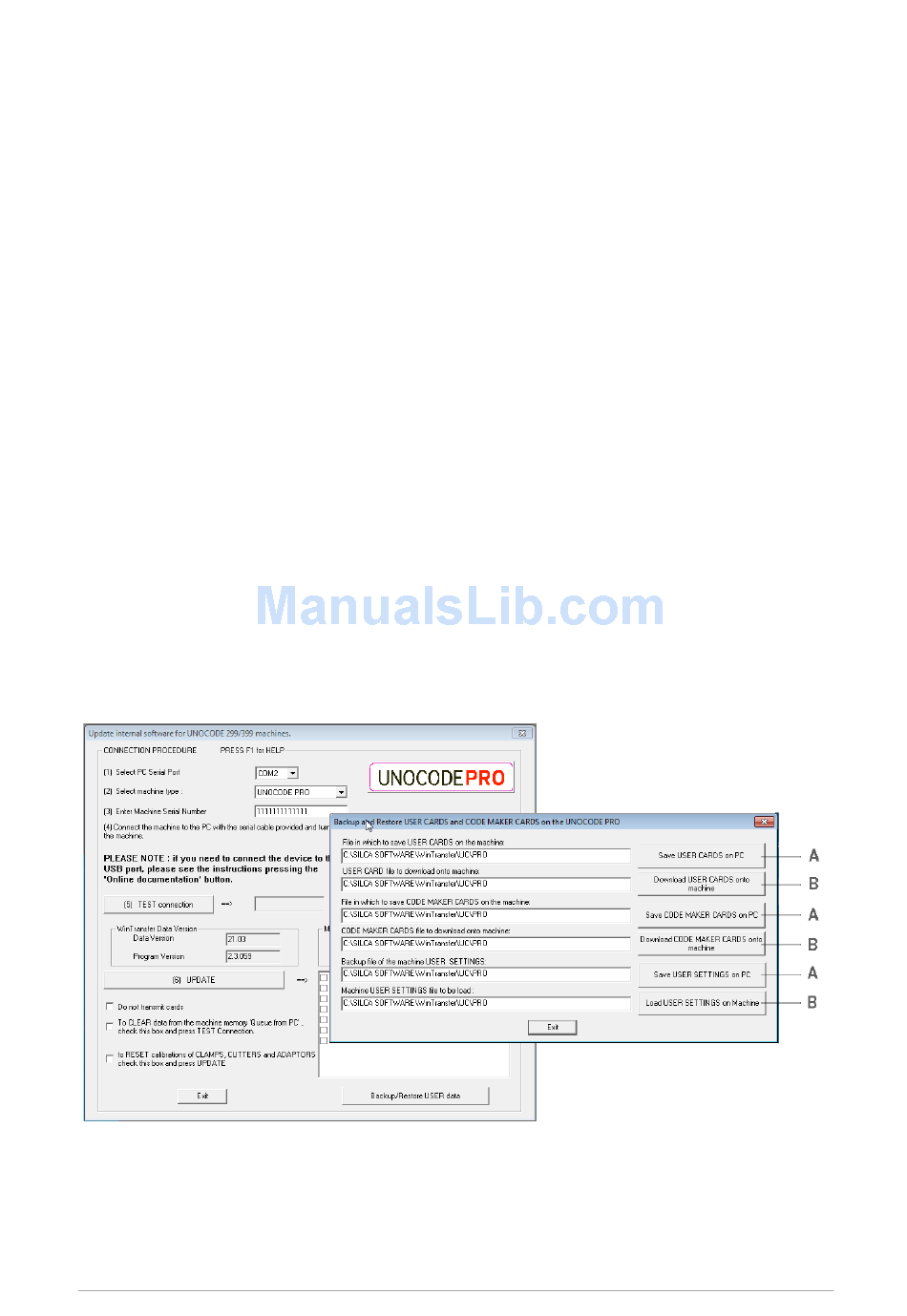

Figura 66
A = button to save the machine data on the PC (user cutting cards, user data, etc....)
B = button to upload the data from the PC onto the machine (user cutting cards, user data, etc...).
P
ROGRAM FOR DOWNLOADING
D B /R
ATA ACKUP ESTORE
Copyright Silca 2017
UNOCODE PRO
/
UPDATING THE MACHINE PRO
-
85
