6.10 MAINTENANCE

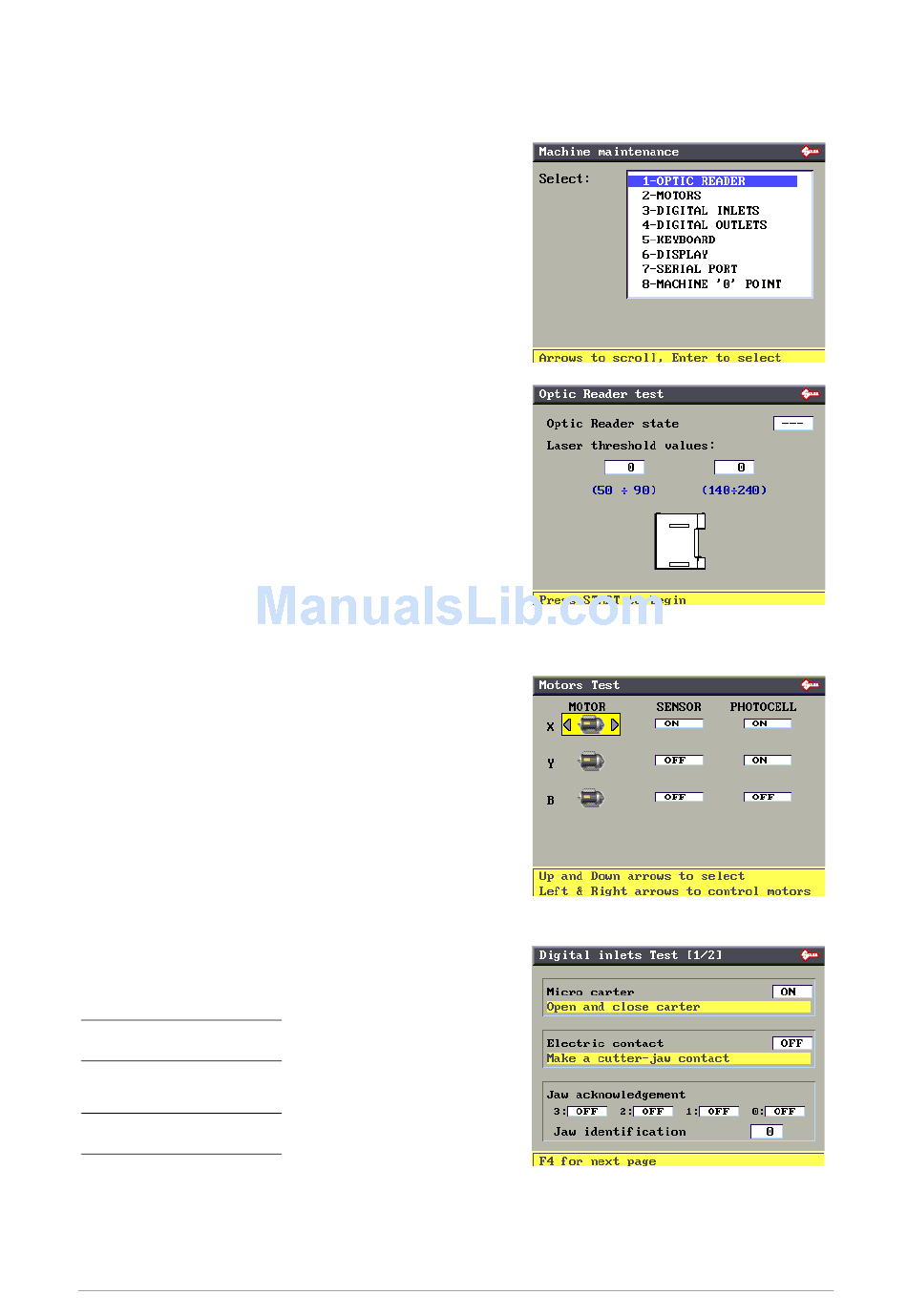

From the initial screen press MENU then F2 to enable the function.
Use the up/down arrow keys to select the option and press ENTER,
or directly press the key relating to the option number.
6.10.1

OPTIC READER TEST

Lower the safety shield and hold down the START button.
The status of the optic reader will go from --- to ON. If it goes to OFF
it is faulty. The comparison levels will indicate values between 140
and 240 to the right and 50 and 90 to the left.
• If the value to the right is 255 it means the reader is faulty
or the light beam is interrupted (check that there are no
objects in the way of the conical slide). If the value to the
left is 0 the reader is inactive. Contact Silca after-sales
service.
• If the value to the left is higher than 90 clean the reader
glass slide with a clean cloth.
• If the value remains over 90 (or lower 50) contact Silca after-
sales Service.
6.10.2

MOTOR TESTS

Read the instructions on the display carefully and check that the
carriage (or optional clamp in the case of B) for the axis involved
moves.
ATTENTION: during this test function all end of run controls are
disactivated; avoid moving the carriage up against its mechanical
stops.
6.10.3

DIGITAL INLETS TEST

- Lift and lower the protective shield checking that the machine's
display indicates OFF (with shield raised) to ON (with shield
lowered).
Note: if the ON/OFF transition is not made, contact Silca's
Technical Assistance Dept.
- Use any metal conductor to contact clamp to cutter, checking
that the machine's display indicates OFF to ON.
Note: if the ON/OFF transition is not made, contact Silca's
Technical Assistance Dept.
Jaw acknowledgement: operational only with electrically connected device.
