Code Maker - Silca Unocode PRO Operating Manual

Operating manual - English
6.7 C M
ODE AKER
Note: the "Codemaker" function on the UTP version is not enabled.
The Code Maker function is used to create a new cutting card with user-definable cutting parameters.
From the initial screen press F4 to enable the function.
The display shows a list of user-created cards (on a new machine
the display is empty).

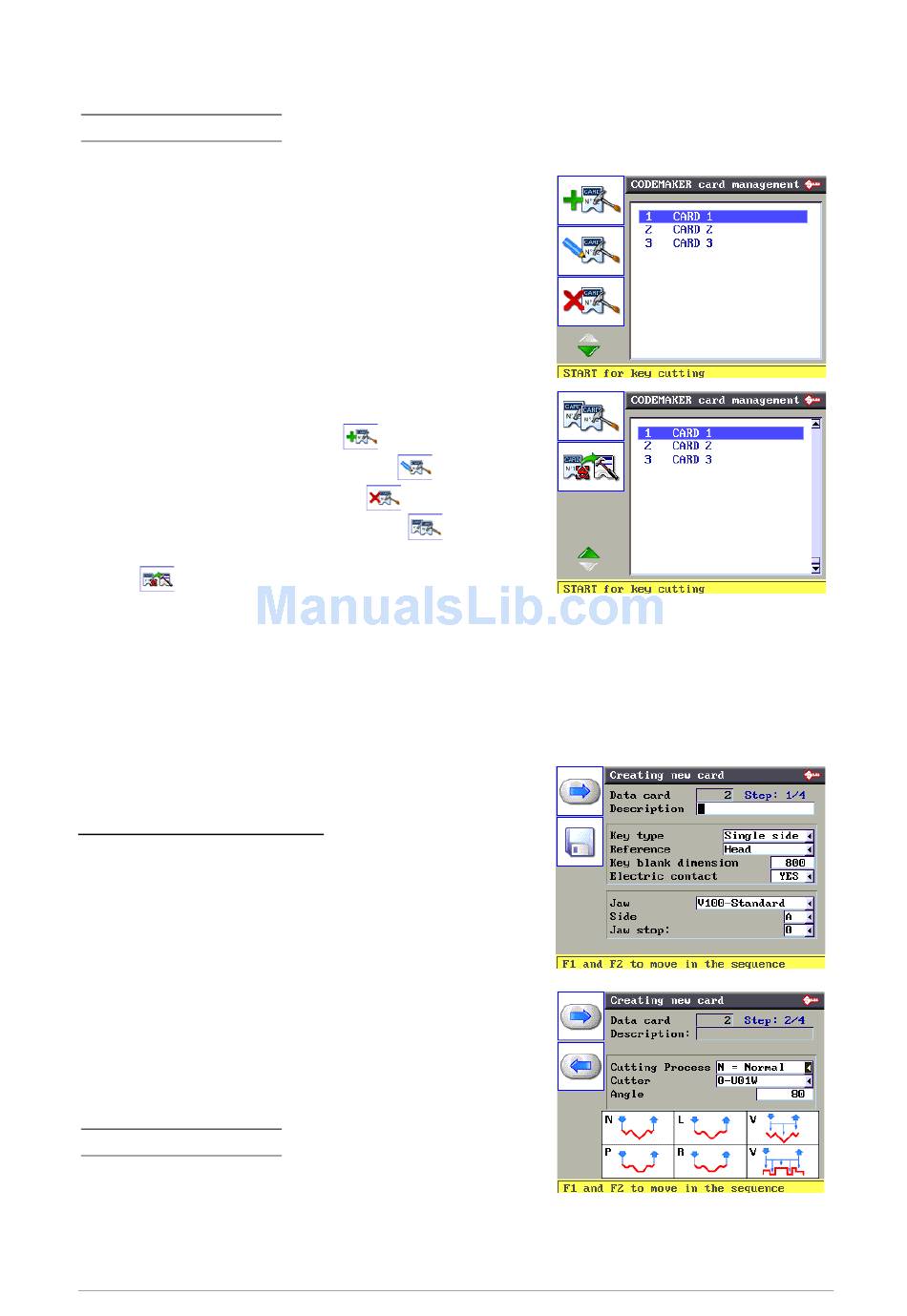

The functions included in CodeMaker are represented by the 4
icons on the left.
• Create new card (press F1 to start)
• Edit a user-created card (press F2 to start)
• Delete card created (press F3 to start)
• Copy a user-created card (press F1 to start)
• Copy a Silca data card onto CODEMAKER (press F2 to
start)
NOTE: Creating of new cards is allowed for two key types:
- SINGLE side
- DOUBLE SYMMETRICAL side
• Creating a new card with Code Maker
Assign a name (description) to the new card. All data except the
card number can be edited.
Step 1
Operational keys (in Description field):
Left and right arrows: to move the cursor
SHIFT+ENTER: to insert a space
CLEAR: deletes a single character
SHIFT + CLEAR:press together to delete a whole line.
Once the values have been entered press F1 to continue. The
display will show:
Step 2
This display screen can be used to edit:
• Type of cut (see Ch. 6.5.1)
• Cutter (set automatically in relation to the type of cut)
• Angle (can be set for types of cut different from "V")
Note: press F2 to go back to the previous screen.
When editing is complete, press F1 to continue.
ATTENTION: for error messages caused by wrong use of
Codemaker, see Ch.6.13.4 "CODEMAKER messages", page 70.
F4
F1
F2
F1
F1
