UNOCODE PRO
The Y measurement read should be the same as the theoretical one (value =
500 in brackets).
If not, proceed as follows:

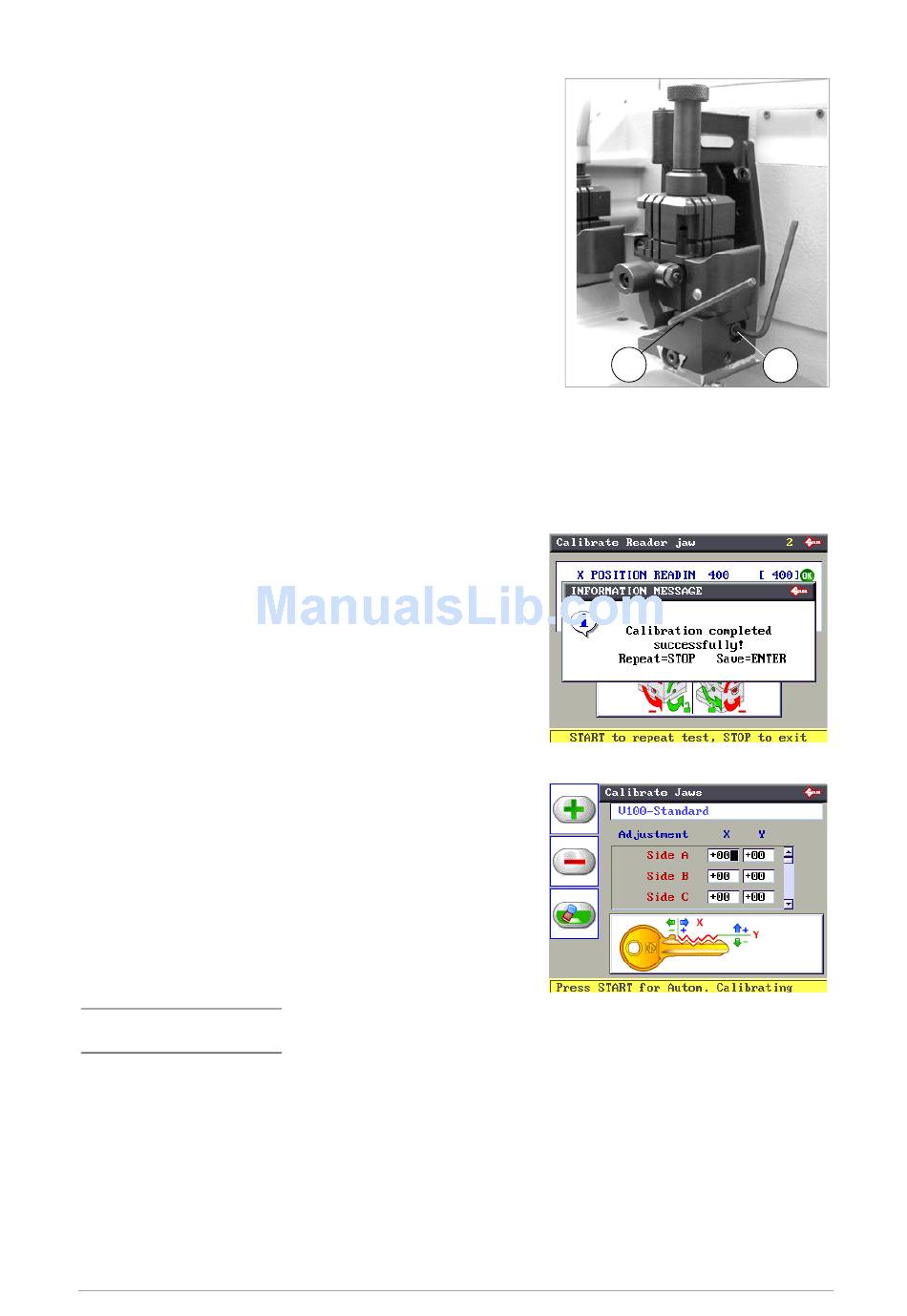

• For a Y value lower than 500, loosen the grub screw (P3) and use
a hex. wrench to tighten the screw (P4).
ATTENTION: a quarter turn of the screw (P4) corresponds to a
movement of approximately 19 hundredths of a millimetre.
• For a Y value above 500, loosen the grub screw (P3) and use a hex.
wrench to loosen the screw (P4).
ATTENTION: a quarter turn of the screw (P4) corresponds to a
movement of approximately 19 hundredths of a millimetre.
Tighten the grub screw (P3), lower the safety shield and press START; repeat the operation until the right values of X and
Y are set.
When the X and Y values are the same as the theoretical ones (in brackets or with errors between +/-
0.03mm) press STOP.
The display will show:
- Press STOP to repeat gauging.
- Press ENTER to confirm the gauging values read.
• Press ENTER to confirm the operation and return to the menu
Calibrate jaw 3-V100-Standard.
Note: besides automatic gauging, the operator can make manual adjustments by entering the values
in the X and Y parameters.
ATTENTION: such adjustments (if necessary) are to be entered only after automatic gauging, if
applicable.
Adjustments can be made within a range of +30 and -30 hundredths of a mm.
- To adjust clamps and adapters the positive values of X will give the result shown.
- To adjust cutters, clamps and adapters the positive values of Y will give the result shown.
• Press STOP to go back to the main menu.
50
Fig. 31
Copyright Silca 2017
Operating manual - English
P3
P4
