"SET UP" AND USE OF THE MACHINE

4.1 U
SE OF THE CLAMP
V100
Clamp - cutter side

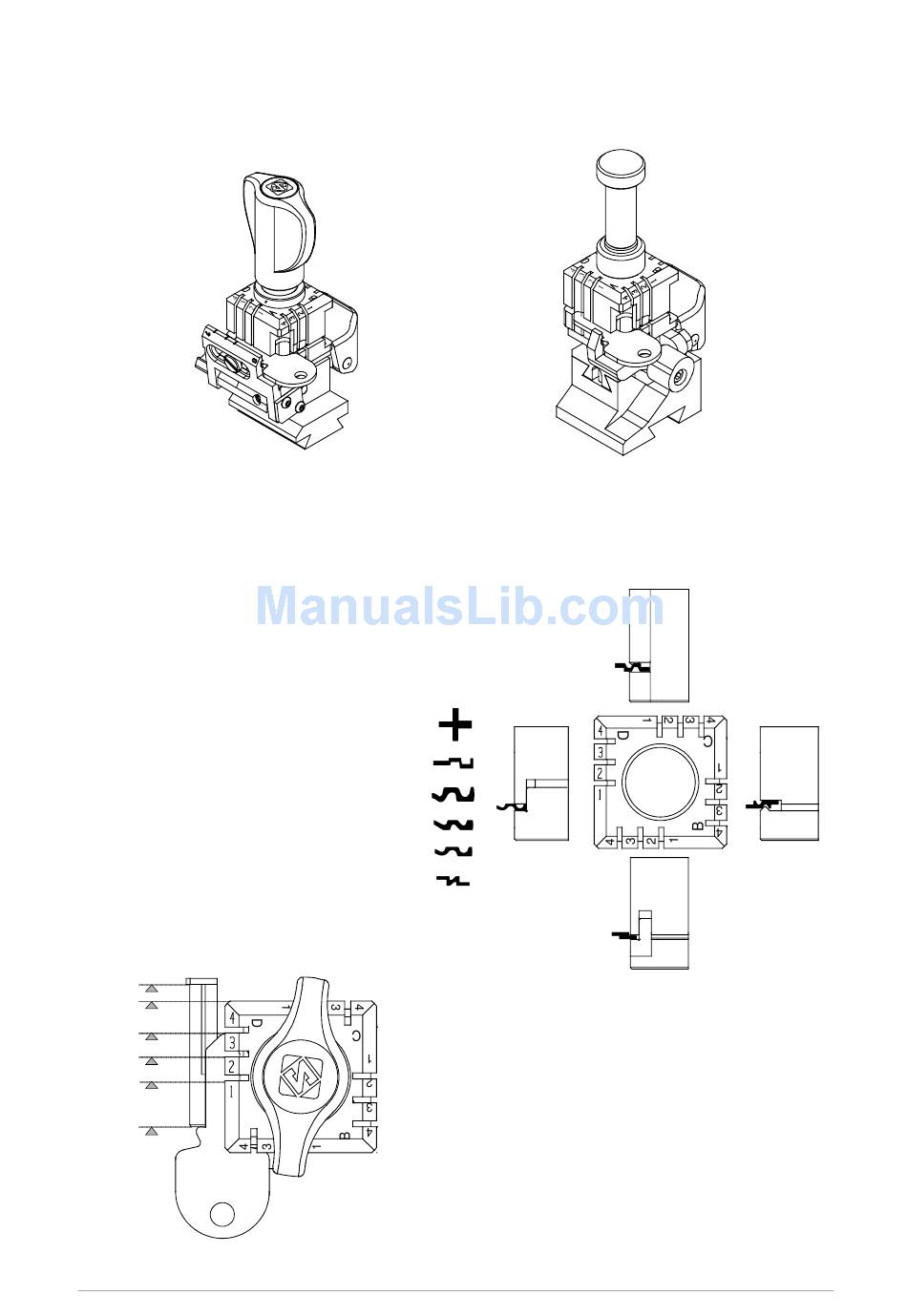

Fig. 10
The four-sided clamp ensures excellent grip on the keys placed on their back or profile sides (fig. 11).
• Keys with 1 or 2 cuts to reproduce by code should be fitted mainly on the A and/or B side of the clamp.
• When copying with the optical reader the key can be fitted to any side (A, B, C or D) of the clamp.
- For keys to be cut by code the side of the clamp
on which to place the key is shown on the
machines display.
- For keys to be copied with the optical reader the
side of the clamp to be used is at the discretion
of the operator.
- To fit keys with tip stops on the optic reader
clamp, fit the bar provided into the special
grooves (fig. 12).
6
4
3
2
1
0 A
12
R100
Clamp - Optic Reader side
Fig. 11
A side
Fig. 12 - key stops
