Conext XW+ 6848 NA Owner's Manual page 94

Configuration
3–46
Table 3-11 Connections Menu
Item Description
DC input and output connection. This is the common DC connection
DCConn
shared between the Conext XW+, charge controllers, and referenced
by the Conext Automatic Generator Start.
AC output connection. This connection specifies a common AC
ACOut
output connection shared between Conext XW+ units. The AC output
connection has to be configured so that the units know if they are
connected to the same load or not. If connected to the same load,
select the same name on all units; for example, "ACLoad1." If
connected to separate load banks, use different names for the AC
output connection on each unit; for example, "ACLoad1" on one unit
and "ACLoad2" on the other.
AC1 input connection. This connection specifies a common
AC1
AC port 1 input for multiple Conext XW+ units.
AC2 input connection. This connection specifies a common
AC2
AC port 2 input for multiple Conext XW+ units.
For default settings, see "Connections Menu" on page B–6.
AC OUT AC IN AC IN
L1 N L2 L1 N L2 L1 N
GRID GEN
AC
LOAD (AC1) (AC2)
AC Out Connection:
Select AC Load 1 to 10

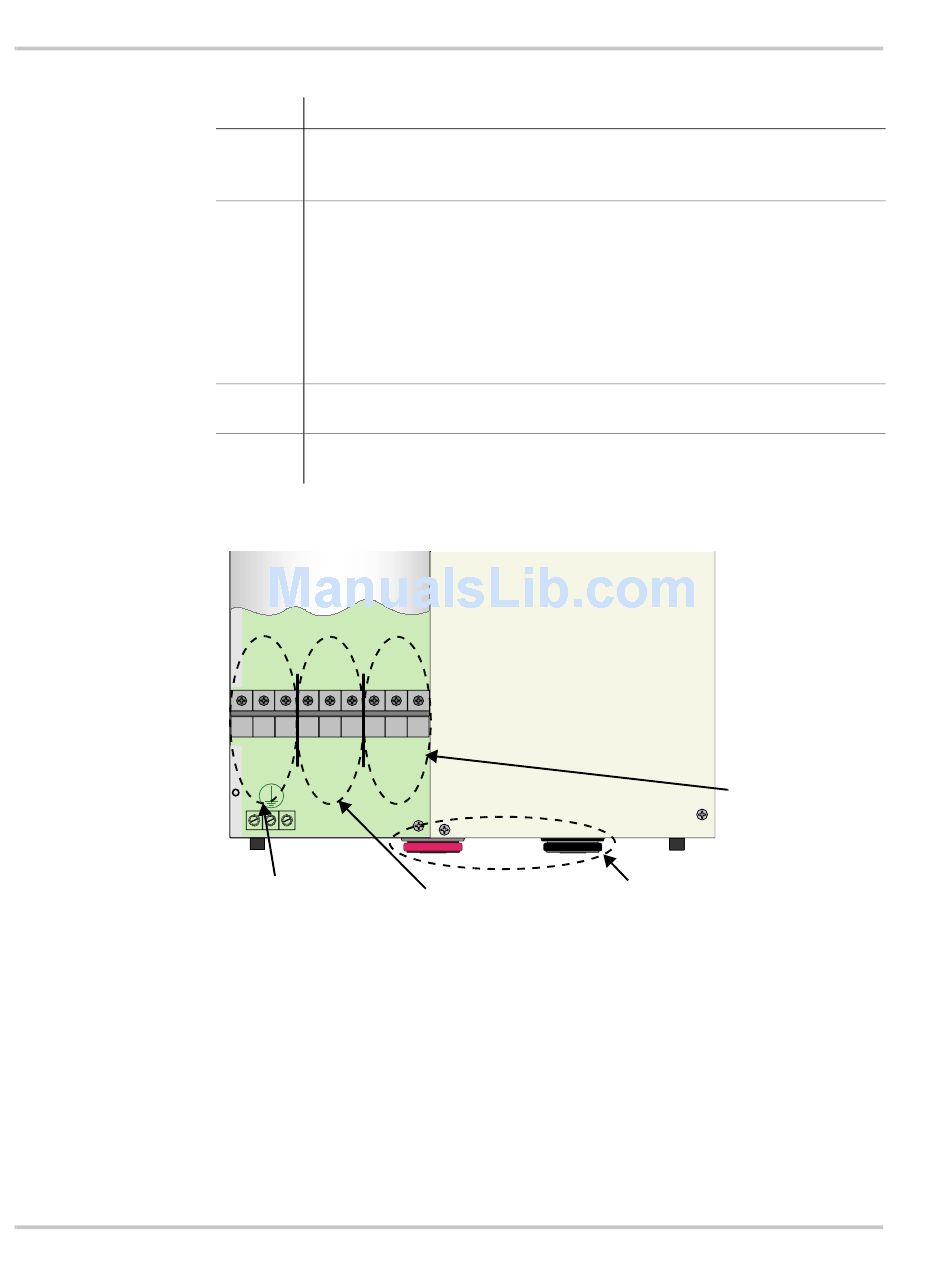

Figure 3-11 Conext XW+ Connections Representation
L2
AC1 Connection:
Select Grid 1 to 10,
Gen 1 to 10
AC2 Connection:
Select Grid 1 to 10,
Gen 1 to 10
DC Connection:
Select House Battery 1 to 6
975-0240-01-01
