transformer. This feature will attempt to balance the load between L1 and L2.
Generator support is most effective for generators under 5 kW. See Table 3-12,
"Advanced Features Menu" on page 3–49.
Note: The passthrough running and startup (peak) currents of generators
attached to AC2 are limited to the maximum current limits of the Conext XW+.
Note: If generator support is used with generators larger than 5 kW, it is
possible for current to recirculate. In this case, the efficiency losses would
outweigh the benefit of generator support.
Battery
Voltage
V[DC max]
[LBCO]+2V
V[LBCO]
AC In Current >
GenSupportA

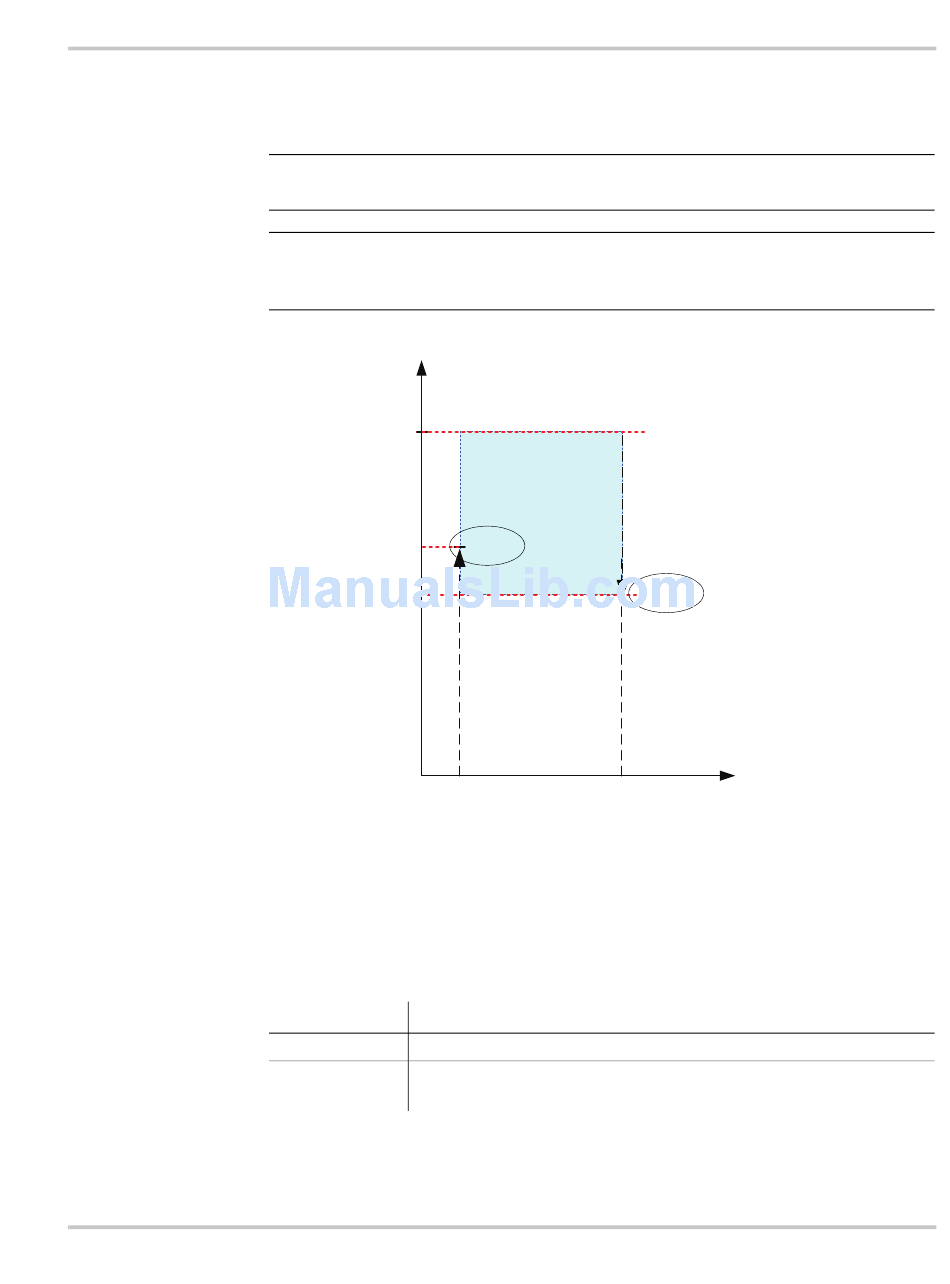

Figure 3-9 Gen Support Mode Graph
Note: Ensure that the battery bank has sufficient energy to support your loads
for the anticipated time period, otherwise draining the battery to LBCO may put
the system in Fault mode.
Table 3-7 Gen Support Menu Values
Setting Description
Turns the Generator Support feature on and off.
GenSupp Mode
Sets the generator load level at which the Conext XW+
GenSupp Amps
supplies power from the batteries to support the generator.
Gen Support Mode
Gen support
mode
[entry]
[exit]
AC In Current <
GenSupportA
Generator Support Settings
[A]
