Monitoring Operation

Monitoring Charger Status

2–4
The green LED labelled "A" indicates the Conext XW+ is charging the battery
bank. When this LED is on, the numeric display screen shows battery charging
current in amps.
Symbol
a.See the document "AC Coupling of Inverters Solutions Guide" available at http://so-
lar.schneider-electric.com for more information about AC coupling.

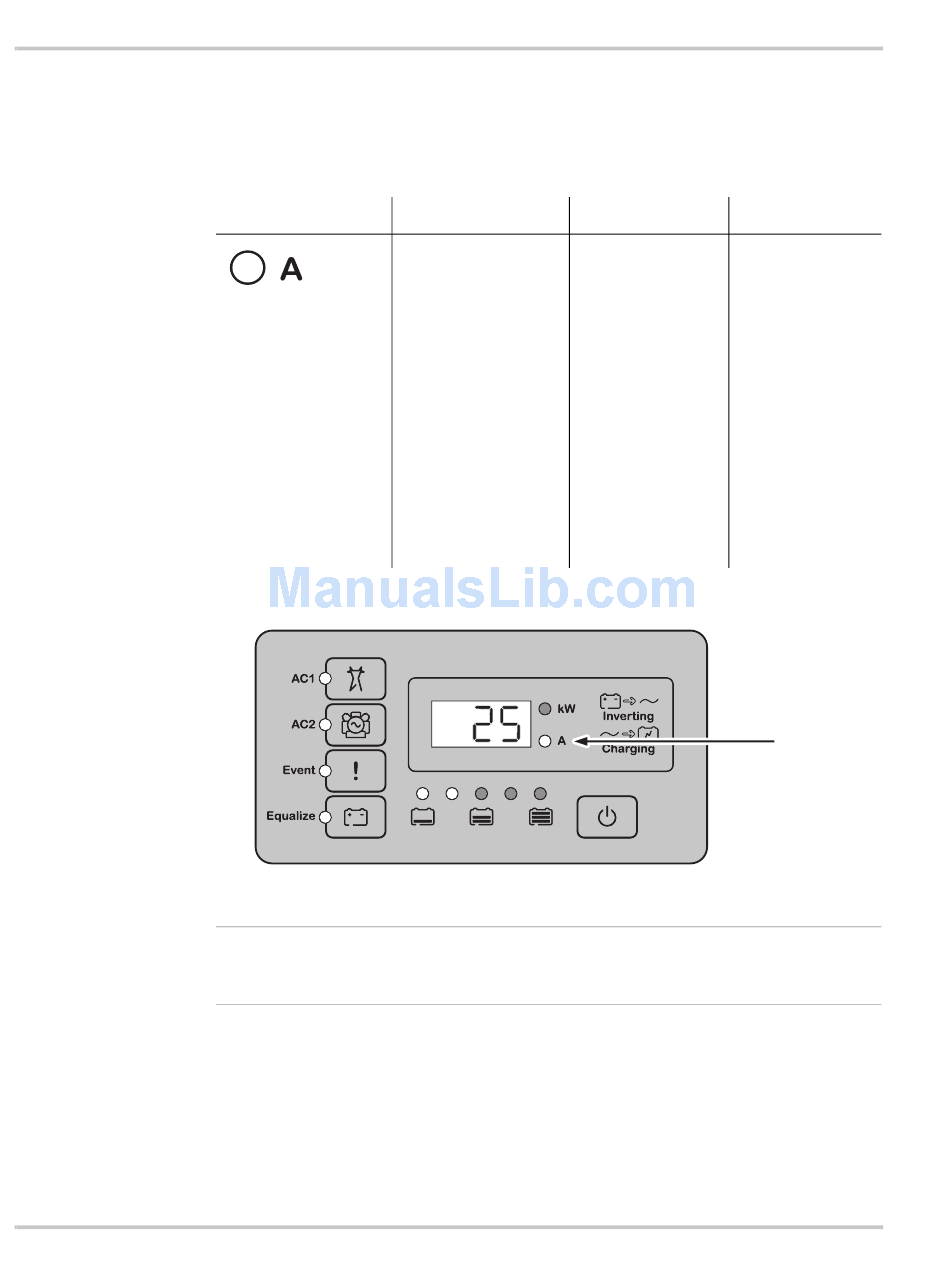

Figure 2-3 Inverter Information Panel When Charging Battery
Note: When a charge cycle ends or charging is manually disabled, the Conext
XW+ does not leave charge mode immediately, and the charging LED remains
on for 60 seconds.
LED On LED Flashing
The Conext XW+ is AC coupled
charging the charging is
battery bank. The
occurring
numeric display
May flash in AC
screen shows
coupled mode
battery charging
where reverse
current in amps.
current greater
than 3 A is
present.
Multiple units are
connected in
parallel under no
load.
LED Off
The Conext
XW+ is not in
charge mode.
a
.
