Monitoring the Conext XW+

Operation of the Conext XW+ can be monitored using the factory-installed inverter
information panel or the optional Conext System Control Panel and ComBox. To
configure the Conext XW+, the Conext System Control Panel or ComBox must be used.

Conext XW+ Information Panel

The Conext XW+ information panel features:
•
•
•
975-0240-01-01
Buttons for Conext XW+ Startup/Shutdown/Standby control, clearing faults and
warnings, and battery equalization.
A three-character display to indicate power output, charge current, anti-islanding
countdown or troubleshooting information.
LEDs to indicate AC input status, output status, battery condition, and system
warnings/faults.

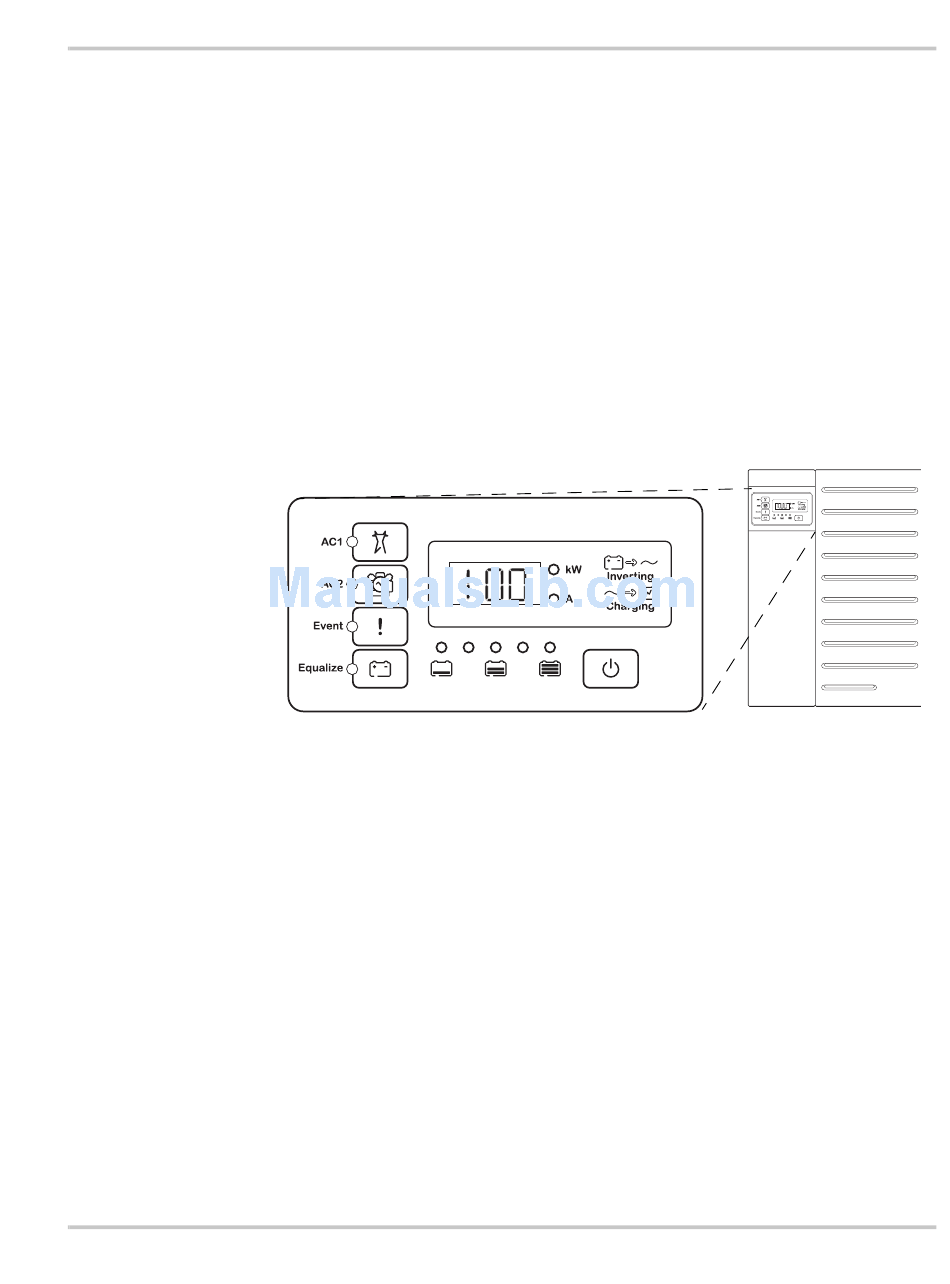

Figure 1-7 Conext XW+ Information Panel
Monitoring the Conext XW+
AC1
kW
Inverting
AC2
A
Charging
!
Event
Equalize
1–11
