Monitoring Operation

Monitoring Operation with the Inverter Information Panel

Monitoring AC Input Status

2–2
The inverter information panel on each Conext XW+ monitors a single Conext
XW+. The Conext XW+ information panel displays basic information and
performs start up, shut down, equalization and standby functions. LEDs on the
information panel indicate AC input status, Conext XW+ status, battery condition,
and charging and equalization status. The Conext XW+ LEDs and three-
character display screen indicate warning and event conditions.

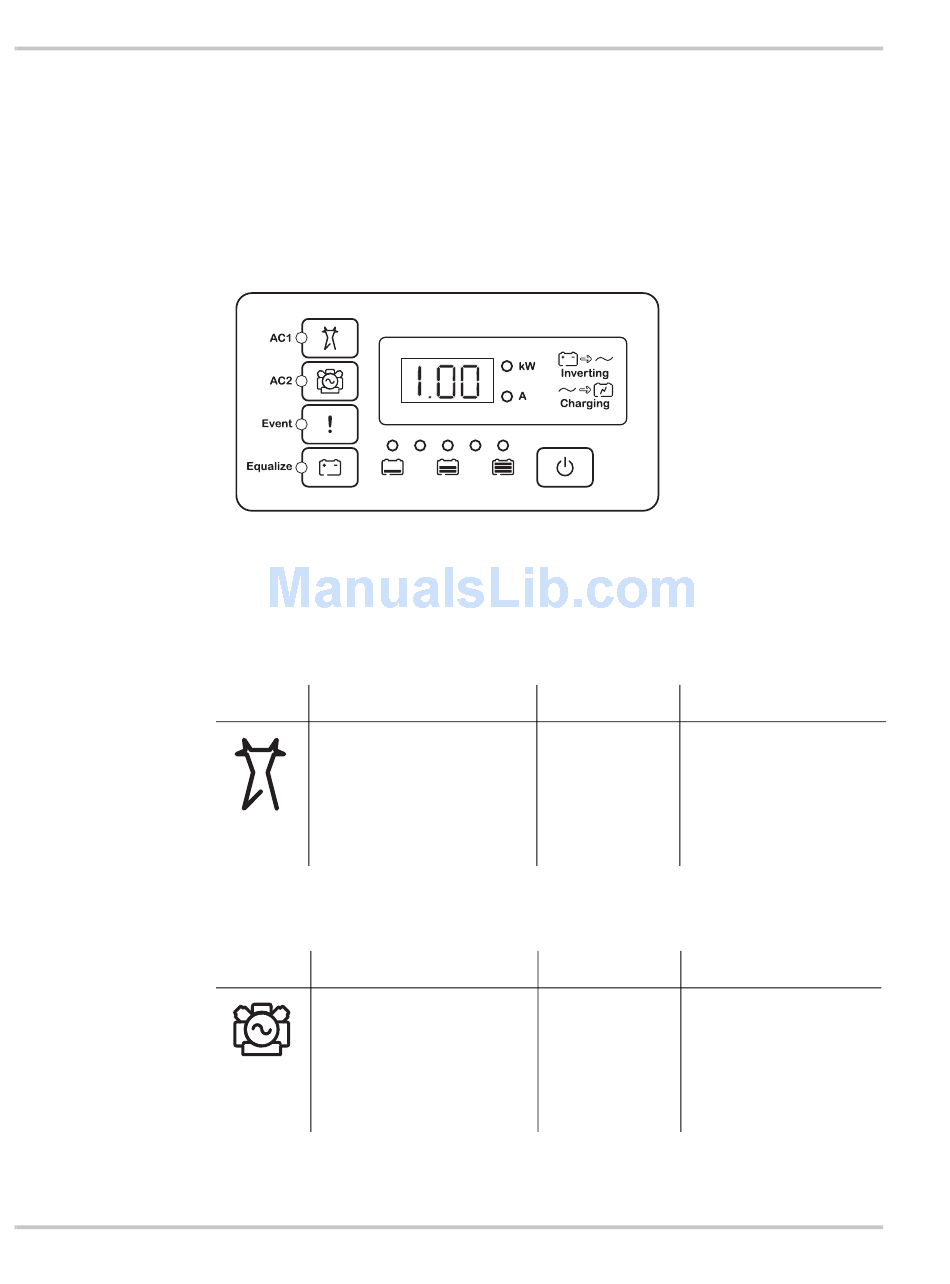

Figure 2-1 Inverter Information Panel
Grid (AC1) The green Grid (AC1) LED indicates the presence and status of the
AC source connected to the AC1 input.
Symbol LED On
AC input is present and
qualified. The Conext
XW+ is ready to charge
batteries, pass AC
through to the loads, or
interact with the grid.
Gen (AC2) The green Gen (AC2) LED indicates the presence and status of a
generator or other auxiliary AC source on the AC2 input.
Symbol LED On
The AC source is present
and AC input is qualified.
The Conext XW+ is ready
to charge batteries and
pass power through to
the loads.
LED Flashing LED Off
AC input is The Conext XW+ is not
present and is connected to the grid.
being qualified. AC input is not
present, or AC input is
present but not within
qualifying range.
LED Flashing LED Off
AC input is AC input is not
present and is present, or AC input is
being qualified. present but not within
qualifying range.
975-0240-01-01
