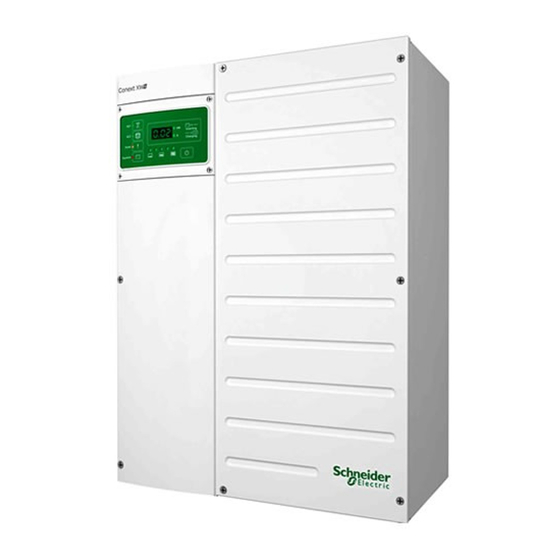

Conext XW+ 6848 NA Owner's Manual

Inverter / charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

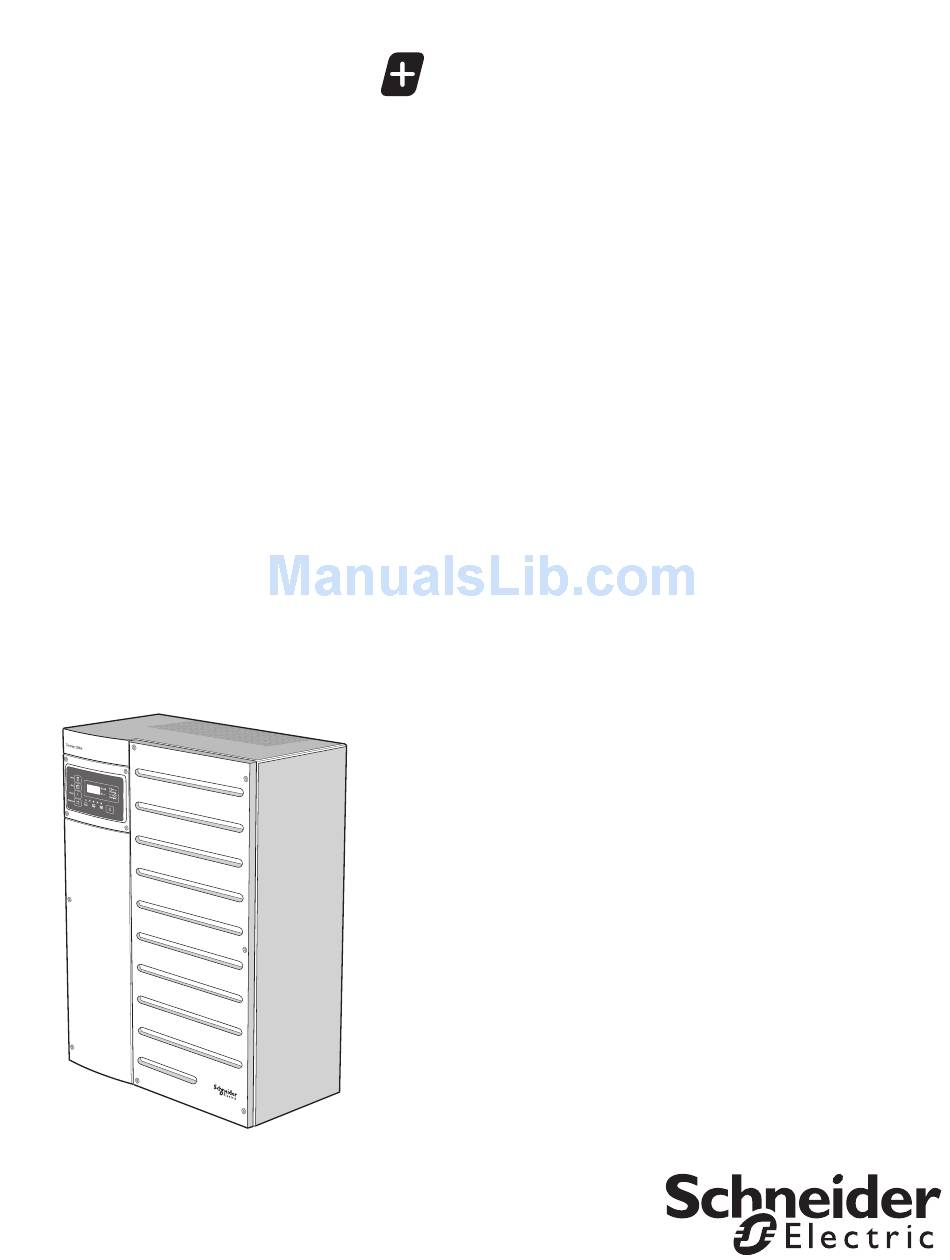

Conext™ XW
Conext XW+ 6848 NA
Conext XW+ 5548 NA
Owner's Guide
975-0240-01-01 Revision H
November 2017
http://solar.schneider-electric.com
Inverter/Charger

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XW+ 6848 NA and is the answer not in the manual?

Questions and answers

John James
April 14, 2025

how to determine code for event in my conext xwpro

User image 67fd4fd01eb36
0
1 comments:
Mr. Anderson
April 15, 2025

To determine the event code for the Conext XW+ 6848 NA:

1. On the Select Device menu, highlight "System Settings" and press Enter.
2. On the System Settings menu, highlight "View Fault List" and press Enter.
3. Use the arrow buttons to highlight the message you want to view.
4. Press Enter to view the complete message, which includes the event code.
5. Viewed messages are removed from the list when you return to it.

You can access the fault list at any time from the System Settings menu.

This answer is automatically generated

0

Summary of Contents for Conext XW+ 6848 NA

  • Page 1 Conext™ XW Inverter/Charger Conext XW+ 6848 NA Conext XW+ 5548 NA Owner’s Guide 975-0240-01-01 Revision H November 2017 http://solar.schneider-electric.com...
  • Page 3 Conext™ XW Inverter/Charger Owner’s Guide http://solar.schneider-electric.com...
  • Page 4 865-5548-01 – Conext XW+ 5548 NA 865-1025 – Conext XW+ Conduit Box 865-1020-02 – Conext XW+ Connection Kit for INV2 INV3 PDP 865-1030-1 – Conext MPPT 60 150 Solar Charge Controller 865-1032 – Conext MPPT 80 600 Solar Charge Controller 865-1050-01 –...

  • Page 5: About This Guide

    Schneider Electric Conext XW+ Inverter/Charger. Scope This Guide includes information about monitoring and configuring the Conext XW+. The Guide provides guidelines, detailed setup information, and information about operating and troubleshooting the unit. It does not provide installation procedures or details about particular brands of batteries, photoelectric cells, or generators.
  • Page 6 Appendix A, “Specifications” provides the electrical and mechanical specifications for the Conext XW+ Inverter/Charger. Appendix B contains the default configuration settings and ranges for the Conext XW+ Inverter/Charger. Configuration settings can be viewed and changed using the Conext System Control Panel.

  • Page 7: Important Safety Instructions

    Important Safety Instructions READ AND SAVE THESE INSTRUCTIONS - DO NOT DISCARD This guide contains important safety instructions for the Conext XW+ Inverter/ Charger that must be followed during operation and troubleshooting. Read and keep this Owner’s Guide for future reference.

  • Page 8: Safety Information

    Safety Safety Information 1. Before using the inverter, read all instructions and cautionary markings on the unit, the batteries, and all appropriate sections of this manual. 2. Use of accessories not recommended or sold by the manufacturer may result in a risk of fire, electric shock, or injury to persons. 3.
  • Page 9 Safety DANGER HAZARD OF ELECTRIC SHOCK EXPLOSION OR ARC FLASH • Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E or CSA Z462. • This equipment must only be installed and serviced by qualified electrical personnel.

  • Page 10: Precautions When Working With Batteries

    Limitations on Use WARNING LIMITATIONS ON USE The Conext XW+ Inverter/Charger is not intended for use in connection with life support systems or other medical equipment or devices. Failure to follow these instructions can result in death or serious injury.

  • Page 11: Explosive Gas Precautions

    Safety Explosive Gas Precautions WARNING EXPLOSION HAZARD This equipment is not ignition protected. To prevent fire or explosion, do not install this product in locations that require ignition-protected equipment. This includes any space containing gasoline-powered machinery, fuel tanks, as well as joints, fittings, or other connections between components of the fuel system.
  • Page 12 Safety •THIS PAGE INTENTIONALLY BLANK• 975-0240-01-01...

  • Page 13: Table Of Contents

    Conext System Control Panel Navigation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–11...
  • Page 14 Resetting the Conext XW+ to Default Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–48...
  • Page 15 Conext XW+ Overload Capability - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A–5...
  • Page 16 Contents •THIS PAGE INTENTIONALLY BLANK• 975-0240-01-01...

  • Page 17: Introduction

    Introduction Chapter 1, “Introduction”, describes the operational features of the Conext XW+ Inverter/Charger. Topics in this chapter include: • “Features” on page 1–2 • “Operation” on page 1–3 • “Monitoring the Conext XW+” on page 1–11...

  • Page 18: Features

    The Conext XW+ is a self-contained DC to AC inverter, battery charger, and integrated AC transfer switch. It is configurable in a hybrid system to operate with generators and renewable energy sources.

  • Page 19: Available Conext Xw+ Accessories

    Operation Bidirectional Theory of Operation The Conext XW+ is a grid forming device consisting of a bidirectional inverter/ charger. It is capable of inverting DC power into AC power and controlling the voltage and frequency of its inverter output. It will power external loads attached to AC OUT (See Figure 1-2, “Inverting of DC to AC Connected to AC OUT”...
  • Page 20 K2, Conext XW+ can facilitate advanced interaction with the utility grid to optimize the utilization of renewable and non-renewable energy sources. Because the Conext XW+ is a device capable of forming an AC grid signal (AC voltage and frequency) it is also ideal for use off-grid.
  • Page 21 Operation AC 1 AC OUT AC 2 Figure 1-3 Charging External Batteries and Supplying AC Out with AC Passthrough from AC1 Grid AC 1 AC OUT AC 2 Figure 1-4 Charging External Batteries and Supplying AC Out with AC Passthrough from AC2 Generator 975-0240-01-01 1–5...
  • Page 22 Introduction AC 1 AC OUT AC 2 Figure 1-5 Converting Excess Available DC power for Export to Utility Grid (AC1) and AC Out AC 1 AC OUT AC 2 Figure 1-6 AC Passthrough 1–6 975-0240-01-01...

  • Page 23: Surge Performance

    With permission from the utility, the factory settings may be changed to allow the Conext XW+ to operate over a wider grid voltage range. These settings must only be changed by qualified service personnel using a special software application (Conext Configuration Tool, Order # 865-1155-01) provided by the manufacturer.

  • Page 24: Ac Coupling

    To enable the PV inverter to provide power during a grid outage the Conext XW+ is retrofitted in front of the PV inverter. The PV inverter is rewired from the grid connection to a critical load (sub) panel and the AC Couple is on the Conext XW+ AC Output port.

  • Page 25: Multi-Unit Operation

    Three Conext XW+ units can also be configured in a cluster for three-phase operation using a single PDP (PDP is optional). Up to three clusters of three Conext XW+ units can be installed in a three-phase configuration when using an external AC contactor.

  • Page 26: Auxiliary Output

    Introduction AC Transfer Multiple Conext XW+ units monitor each other to determine the quality of AC input. If AC input is deemed to be bad by any of the paralleled units, no transfer to AC Out occurs and the AC LED continues to flash on each unit’s information panel until the AC is qualified by all.

  • Page 27: Monitoring The Conext Xw

    Operation of the Conext XW+ can be monitored using the factory-installed inverter information panel or the optional Conext System Control Panel and ComBox. To configure the Conext XW+, the Conext System Control Panel or ComBox must be used. Conext XW+ Information Panel The Conext XW+ information panel features: •...

  • Page 28: Conext System Control Panel

    Introduction Conext System Control Panel The Conext System Control Panel (Conext SCP) or Conext ComBox is required for configuring the Conext XW+ and other Xanbus-enabled system components. The Conext SCP features: • A liquid crystal display which provides graphics and text describing real time operation and status information.

  • Page 29: Monitoring Operation

    Operation Chapter 2, “Monitoring Operation”, contains information about monitoring Conext XW+ Inverter/Charger operation using the inverter information panel or the Conext System Control Panel. The topics in this chapter include: • “Monitoring Operation with the Inverter Information Panel” on page 2–2 •...

  • Page 30: Monitoring Operation With The Inverter Information Panel

    Monitoring Operation Monitoring Operation with the Inverter Information Panel The inverter information panel on each Conext XW+ monitors a single Conext XW+. The Conext XW+ information panel displays basic information and performs start up, shut down, equalization and standby functions. LEDs on the information panel indicate AC input status, Conext XW+ status, battery condition, and charging and equalization status.

  • Page 31: Monitoring Conext Xw+ Status

    Conext XW+ uses the source selected under AC Priority in the AC Settings menu. Monitoring Conext XW+ Status The Green kW LED indicates the Conext XW+ is inverting DC input to AC output. When this LED is on or flashing, the display screen shows Conext XW+ output power in kilowatts.

  • Page 32: Monitoring Charger Status

    Monitoring Operation Monitoring Charger Status The green LED labelled “A” indicates the Conext XW+ is charging the battery bank. When this LED is on, the numeric display screen shows battery charging current in amps. Symbol LED On LED Flashing LED Off...

  • Page 33: Monitoring Events

    This cycle is used to restore battery capacity when battery life has deteriorated due to sulphation. After the button is pressed the Conext XW+ begins a full charge cycle, which is automatically followed by an equalization cycle.
  • Page 34 Note: In a system where more than one device is capable of equalizing batteries (such as a system including multiple Conext XW+ units and/or Conext Solar Charge Controllers), there is no system-wide equalization command for all devices. To equalize with multiple devices, each would have to be enabled individually.

  • Page 35: Using Startup/Shutdown/Standby Modes

    Conext Solar Charge Controllers continue to operate if Xanbus network power is removed, but they do not continue to communicate with each other. Furthermore, the Conext Combox will not collect harvest data while it is off, even though MPPT is still functioning and collecting data.

  • Page 36: Monitoring Battery Level

    LEDs are lit. When the battery capacity is full, all five LEDs are lit. When the Conext Battery Monitor or Conext MPPT Solar Charge Controller devices are reporting, the true SOC will be indicated on the battery level LEDs and all LEDs will be utilized.

  • Page 37: Reading The Display Screen

    Battery charger current in Amps (when the (A) charging LED is lit).  when the Conext XW+ is in Standby mode. •  when the Conext XW+ is in Search mode. See “Using Search Mode” on • page 3–9.  when the •...

  • Page 38: Monitoring Operation With The Conext Scp

    The Conext System Control Panel (Conext SCP) provides remote configuration and monitoring capability for the Conext XW+ and all other Xanbus-enabled devices in the network. You can monitor Conext XW+ operation on the Conext SCP using the: • System Status screen (see page 2–14) •...

  • Page 39: Using The Standby Button

    AC power to the loads, and “” is displayed on the inverter information panel. Pressing the Exit and Standby buttons at the same time puts the entire Conext power system (including Conext Solar Charge Controllers) into Standby mode. In Standby mode, the Conext XW+ units stop passing AC power through to the loads, and ...
  • Page 40 Pressing Enter takes you to the Select Device menu. For more information, see “Reading the System Status Screen” on page 2–14. Note: If you are uncertain as to which Conext SCP screen or menu you are viewing, you can return to the starting point—the System Status screen—by pressing Exit repeatedly until the screens stop changing.

  • Page 41: Viewing Other Screens

    Monitoring Operation with the Conext SCP Conext XW+ Home Screen The Conext XW+ Home screen is the first of the device Home screens. Each Conext XW+ installed in the system has its own Home screen. The Conext XW+ Home screen displays status information for the Conext XW+.

  • Page 42: Reading The System Status Screen

    Conext XW+. The Conext XW+ status changes according to the states described in Table 2-1 on page 2–15. To view the Conext XW+ Home screen: • On the system Home screen, press the down arrow button until the Conext XW+ Home screen appears. 2–14 975-0240-01-01...
  • Page 43 AC input from the utility (AC1) or generator (AC2) is absent or out of nominal range. The Conext XW+ is determining if AC input on AC1 or AC2 is within a usable voltage Qualifying and frequency range. Qualifying AC is also displayed when the Conext XW+ is awaiting application of AC power or a command to enable invert mode.
  • Page 44 GenSup Amps setting for 0.5 seconds. For example, if GenSup Amps is set to 10 amps, the Conext XW+ starts to support when the load exceeds 10 amps for 2 seconds and stops when it drops more than 3 amps below the GenSup Amps setting, or 7 amps (2 amps plus 10 per cent of 10 amps = 3 amps).
  • Page 45 Conext XW+ Status Displayed When... The Conext XW+ supports the utility grid when there is AC input on AC1 and the Load Shaving current required to power the loads rises above the Load Shave Amps setting between the Load Shave Start and Load Shave Stop times set on the Grid Support menu.

  • Page 46: Reading The Meters Screen

    AC2 is assumed to be connected to a generator, but can be connected to any other AC source. AC input voltage and current supplied to the Conext XW+ from the AC2 L1 input. This AC2 in L1 meter indicates the Conext XW+ is drawing power from the generator to charge the battery or power the AC loads.
  • Page 47 Operating state of the Conext XW+. For more information, see Table 2-1 on page 2–15. State Charging current and battery voltage. Battery temperature as read by the BTS, connected to the Conext XW+. If the BTS is Batt Temp connected to a different device on the Xanbus network, please see the Meters screen for that device for temperature data.
  • Page 48 2–20...

  • Page 49: Configuration

    Conext System Control Panel menus and configure the Conext XW+ Inverter/Charger. Topics in this chapter include: • “Using the Conext System Control Panel” on page 3–2 • “Using the Setup Menus” on page 3–4 • “Inverter Settings Menu” on page 3–8 •...

  • Page 50: Using The Conext System Control Panel

    Any configuration (change in settings) made when the Conext XW+ 6848 NA is in Operating mode will not be saved unless the Conext XW+ 6848 NA is put in Standby and then back to Operating mode. It is recommended to put the Conext XW+ 6848 NA in Standby mode prior to changing basic or advanced settings.

  • Page 51: Setting The Time And Date

    (faults, warnings, and logged historical data) require that the system be set to the correct time. The Conext SCP has an internal clock that controls the time for the Xanbus-enabled devices in the system. You can set the time, time format, and date on the Clock menu.

  • Page 52: Using The Setup Menus

    Configuration For more information, see “Setting the Time” and “Setting the Date” in the Conext System Control Panel Owner’s Guide. Note: Network time on the ComBox overrides time configured on any individual device in the network-enabled power system using network time protocol (NTP).
  • Page 53 Multi-unit operation, including customizing the default model name of the Conext XW+ and setting its network device number. Setting the device number is important when multiple Conext XW+ units are on the Xanbus network and sharing connections such as AC loads, utility grid, and generator.
  • Page 54 4. Press Enter to select the value. 5. If you have another setting to change, return to step 1. Or if you have no more settings to change, press Exit until the Conext SCP displays the desired screen or menu.
  • Page 55 [Disabled] [10A] XW+ 6848 00: Aux [ManualOff] [ActHi] [LowBattV] [46V] Note: The Conext System Control [1sec] Trigger and Clear settings are [48V] Panel displays only four lines of [1sec] displayed only when Automatic is each configuration menu at one XW+ 6848 00: Multi selected under Manual Aux.

  • Page 56: Inverter Settings Menu

    If the battery voltage exceeds this limit for more than 1 minute, the Conext XW+ displays a fault message (F49) and shuts down. The inverter will not support AC loads when in this condition. If a qualified AC source is present, the unit passes AC through to the loads.

  • Page 57: Using The Low Battery Cut Out And Lbco Delay Settings

    Otherwise – in both of the scenarios above – inverter output turns off before the generator automatically starts, causing the battery voltage to recover slightly. This may then stop the Conext AGS from starting the generator or result in the Conext XW+ cycling on and off multiple times before the generator automatically starts.
  • Page 58 When search mode is disabled on the master unit and enabled on slave units, only the master Conext XW+ operates, and the slave units start to support the load only when the load exceeds approximately 60 per cent of the rated output power of the master unit.

  • Page 59: Charger Settings Menu

    Charger Settings Menu Charger Settings Menu The Charger Settings menu provides options for configuring the Conext XW+ to operate from your battery bank. Table 3-3 Charger Settings Menu Item Description Sets the system battery chemistry and type: Flooded (default), AGM, Gel, and Batt Type Custom.

  • Page 60: Battery Charger Functions

    For default settings, see “Charger Settings Menu” on page B–3. Battery Charger Functions When AC power is available, the Conext XW+ can operate as a battery charger. Different battery types and chemistries require different charging voltage levels. Not charging batteries at the required levels can shorten battery life or damage the batteries.

  • Page 61: Multi-Stage Charging Process

    Charger Settings Menu Note: Using the Conext SCP, make sure that every XW+ unit in the multi-unit configuration is set to Charger = Enabled under the Setup menu for each inverter. Note: If Cascading is Enabled in SCP, the charger settings will cascade to other Conext XW+ units with the same DC Associations.
  • Page 62 The voltage limit settings for bulk and absorption can be adjusted independently if the battery type is set to Custom. The Conext XW+ transitions to the float stage if either one of the following two conditions are met: 1.
  • Page 63 It allows for a higher constant voltage than absorption voltage to encourage a “mini equalize” each time the battery is charged. The boost voltage is defined by the Bulk Voltage setting. The Conext system will still allow manual equalize charging when the boost absorption voltage is implemented.
  • Page 64 Two-stage (or no float) mode differs from an ordinary three-stage charge mode in that it does not continuously maintain the battery at float voltage. Instead, the Conext XW+ begins charging the battery in bulk mode whenever the battery voltage drops below the recharge level. While the battery voltage is above the recharge level the inverter’s AC transfer switch continues to pass through power...
  • Page 65 Charger Settings Menu Bulk Stage Absorption Stage Battery (Boost Stage) Voltage Absorption Voltage 2-Stage Charge Custom Charge Recharge Voltage Return to Bulk Stage Boost Time Timer 1hr fixed Max Absorb Time - Dflt 3 hrs (adjustable 1 min - 8 hrs ) Battery Current Max Charge...

  • Page 66: Equalize Charging

    (Conext XW+ or Conext Solar Charge Controller) is connected in the system via the Xanbus network. • The first unit (Conext XW+ or Conext Solar Charge Controller) to enter bulk, causes the other chargers to enter bulk. • The first Conext XW+ to enter absorption causes the others to enter absorption.
  • Page 67 Charger Settings Menu After absorption, the maximum charge DC current is set to 10% of battery capacity (for example, 44 A for 440 Ah). See Figure 3-6. This constant current charge will continue until the voltage has increased to the equalize voltage at which point the battery will be regulated at the temperature compensated equalize voltage.

  • Page 68: Equalization Procedure

    On the Conext Setup menu, highlight Equalize and select Enable. • Press the Equalize button on the inverter information panel for five seconds. If the Conext XW+ will not perform the equalization, see Warning W96 “Cannot Equalize” in Table 4-3 on page 4–12. WARNING EQUALIZATION HAZARD Only flooded lead acid batteries should be equalize charged.

  • Page 69: Custom And Lithium Ion Battery Settings Sub Menus

    Advanced menu settings should be used by qualified personnel only. Three phase operation should be configured by qualified personnel only. Consult with the local utility before enabling Conext XW+ sell mode or grid support functions. Do not change these settings unless you are under the supervision and direction of qualified personnel.
  • Page 70 Type. This menu allows you to select an external BMS or adjust charging specifications for lithium ion batteries that fall outside the default settings for the battery types the Conext XW+ offers. Table 3-4 describes the items on the Custom Battery Settings menu.
  • Page 71 Conext XW+ could become unusable. When the Conext XW+ current draw exceeds the set value for a period defined in DisChglmax Timer, the Conext XW+ disables INV output. Appears only when the Control is set to 2StageNoFloat and 3Stage.

  • Page 72: Ac Input Settings

    The AC Settings menu configures the voltage and frequency limits for AC port 1 (Grid) and AC port 2 (Gen). These are the limits at which the Conext XW+ considers AC input voltage qualified—that is, suitable for charging batteries or passing through to loads attached to AC OUT.
  • Page 73 AC2 connection port. The installed upstream breaker and the AC2 breaker set point must not exceed the capacity of the generator. The Conext XW+ limits the maximum current draw on AC2 by derating its charging current to an equivalent of 80% of the AC2 breaker setting.

  • Page 74: Grid Support Settings

    Note: In grid support mode, the Conext XW+ should not draw a large amount of current from the grid. If the Conext XW+ is drawing more than expected, it is important to note that it cannot distinguish between real power and reactive power.
  • Page 75 AC Out. This setting is not adjusted for the battery temperature even if the temperature sensor is installed. Turns sell mode on and off. When Sell is set to enabled, the Conext XW+ AC Sell output is divided between powering loads and delivering power to the utility grid.
  • Page 76 Sets the time of day that the load shave feature stops operating. If Load Shave Load Shave Stop is set to enabled and Load Shave Start and Load Shave Stop are set to the same time, the Conext XW+ load shaves continuously. For default settings, see “Grid Support Menu” on page B–5. Battery...

  • Page 77: Prioritizing And Managing Energy Sources With Advanced Features

    Prioritizing and Managing Energy Sources with Advanced Features The Conext XW+ can be programmed to control how and when to use utility power as well as external DC sources of energy such as batteries and solar charge controllers. Advanced features allow management of peak loads, time-of- use billing and self consumption.

  • Page 78: Grid Support And Battery Charging

    (see “Force Chg” on the“Conext XW+ Setup Menu” on page 3–2.) 3–30...
  • Page 79 Sell Dly 40s to enabled (Table 3-12, “Advanced Features Menu” on page 3–49). If the battery voltage has a sudden increase change greater than Grid Support Volts + 2 V, then the Conext XW+ will override the delay and enter grid support or sell mode immediately. 975-0240-01-01...

  • Page 80: Charger Block

    If the voltage is below the ReCharge Volts setting, then the Conext XW+ starts a new charge cycle from bulk. If the battery voltage is above the ReCharge Volts setting, the Conext XW+ remains idle and continues passing through AC to the loads.

  • Page 81: Time-Of-Use Metering

    Amps setting. However, there is also reactive power that is not compensated for by the Conext XW+. For example, if Load Shave Amps is set to 10A, the inverter will only start drawing power from the batteries at a current level which would measure approximately 11A which is 1A higher than the Load Shave Amps value to meet the demand of the loads.

  • Page 82: Self-Consumption

    Low Batt Cut Out setting. Note: If the batteries reach the Low Battery Cut Out setting, the Conext XW+ automatically reconnects to the utility grid to maintain the connected load.
  • Page 83 “Advanced Features Menu” on page 3–49. Note: The passthrough running and startup (peak) currents of generators attached to AC2 are limited to the maximum current limits of the Conext XW+. Note: If generator support is used with generators larger than 5 kW, it is possible for current to recirculate.
  • Page 84 GenSupp Amps setting. However, there is also reactive power that is not compensated for by the Conext XW+. For example, if GenSupp Amps is set to 48A, the inverter will only start to assist the generator at a current level which would measure approximately 49A which is 1A higher than the GenSupp Amps value.

  • Page 85: Auxiliary Output Settings

    Advanced menu settings should be used by qualified personnel only. Three phase operation should be configured by qualified personnel only. Consult with the local utility before enabling Conext XW+ sell mode or grid support functions. Do not change these settings unless you are under the supervision and direction of qualified personnel.
  • Page 86 • Installations that have another external charging source such as a wind generator or hydro generator connected directly to the batteries. The Conext XW+ auxiliary output can control a relay to disconnect the external charging source from the battery or control a relay to turn on a diversion load.

  • Page 87: Multi-Unit Config Menu

    The Multi-Unit Config menu configures the Conext XW+ to operate as a part of a multi-unit installation. When installing a multi-unit system, each setting on the Multi-Unit Config menu (except for Dev Name) must be configured for each Conext XW+ in the system. The settings should be configured in the following order: •...
  • Page 88 See “Setting the Device Number” on page 3–42. For a split-phase system: For a multi-unit system to SplitPhMaster For single- Inverter operate, one Conext XW+ must be configured to phase, three- Mode SplitPhMaster and the rest as SplitPhSlave, otherwise wire models: a system-wide fault is asserted.

  • Page 89: Setting The Device Name

    Multi-Unit Config Menu Setting the Device Name The Dev Name setting allows you to customize the name of the Conext XW+ as it is displayed on other screens and menus. The characters available are: • A to Z • a to z •...

  • Page 90: Setting The Device Number

    When several devices of the same type are installed in the Xanbus network, setting the device number is required to give a Xanbus-enabled device a unique identity. When each identical device has a unique number, the Conext SCP can correctly identify and display status information for each device. A device number consists of two digits ranging from 00 (default) to 31.

  • Page 91: Three-Phase Configuration

    Advanced menu settings should be used by qualified personnel only. Three phase operation should be configured by qualified personnel only. Consult with the local utility before enabling Conext XW+ sell mode or grid support functions. Do not change these settings unless you are under the supervision and direction of qualified personnel.
  • Page 92 • 3Ph L3Master for unit 3 or Phase C 5. Optionally, up to one additional Conext XW+ may be installed in parallel on each phase (for grid-tie systems only). Additional units are called “slave units”. This configuration allows for a maximum of 6 units in a single grouping.

  • Page 93: Connections Menu

    L1 Master is also the master Conext XW+ for the entire system. The system master broadcasts phase synchronizing pulses through its sync port, and each phase master con- trols the slave units on its respective phase.
  • Page 94 AC output connection. This connection specifies a common AC ACOut output connection shared between Conext XW+ units. The AC output connection has to be configured so that the units know if they are connected to the same load or not. If connected to the same load, select the same name on all units;...

  • Page 95: Copying Settings From Another Unit

    Advanced menu settings should be used by qualified personnel only. Three phase operation should be configured by qualified personnel only. Consult with the local utility before enabling Conext XW+ sell mode or grid support functions. Do not change these settings unless you are under the supervision and direction of qualified personnel.

  • Page 96: Resetting The Conext Xw+ To Default Settings

    Advanced menu settings should be used by qualified personnel only. Three phase operation should be configured by qualified personnel only. Consult with the local utility before enabling Conext XW+ sell mode or grid support functions. Do not change these settings unless you are under the supervision and direction of qualified personnel.

  • Page 97: Using The Advanced Features

    Advanced menu settings should be used by qualified personnel only. Three phase operation should be configured by qualified personnel only. Consult with the local utility before enabling Conext XW+ sell mode or grid support functions. Do not change these settings unless you are under the supervision and direction of qualified personnel.
  • Page 98 (e.g. HECO - Hawaii Electric company, Tariff Rule 14H - Supplemental requirement - Transient Over-voltage fast trip). While in sell mode, the Conext XW+ will disconnect within one line cycle when the grid voltage is above 120% of its nominal value.

  • Page 99: Troubleshooting

    Troubleshooting Chapter 4, “Troubleshooting”, contains information and procedures for identifying and solving possible problems with the Conext XW+ Inverter/Charger. Topics in this chapter include: • “General Troubleshooting Guidelines” on page 4–2 • “Inverter Applications” on page 4–3 • “Inverter Troubleshooting” on page 4–4 •...

  • Page 100: General Troubleshooting Guidelines

    Table 4-3 on page 4–12 or Table 4-6 on page 4–19. 4. If your inverter information panel or Conext SCP is not displaying a Fault light, check the following list to make sure that the present state of the installation allows proper operation of the unit.

  • Page 101: Inverter Applications

    Inverter Applications Inverter Applications The Conext XW+ performs differently depending on the AC loads connected to it. If you are having problems with any of your loads, read this section. Resistive Loads Resistive loads are the easiest and most efficient to drive. Voltage and current are in phase, which means they are in step with one another.

  • Page 102: Clocks

    You may notice that your clocks are not accurate. Some of the clocks on your appliances may reset when the Conext XW+ is in search mode. Disabling search mode will resolve this issue (See “Using Search Mode” on page 3–9).
  • Page 103 (check for low DC voltage while running speed. the load). Make sure the cable length and size is correct (see the Conext XW+ Installation Guide for correct cable). Tie the battery cables together to reduce inductance. Apply a load greater than 100 W or disable Power Save (see Table 3-12, “Advanced Features Menu”...
  • Page 104 If these excessive small between the Conext XW+ and measurements are within the voltage anti-islanding faults the main service panel. range for sell mode (see Table A-1 on during periods of high page A–2), the most likely event is that...

  • Page 105: Battery Charger Troubleshooting

    2) Charger Block is enabled and the 2) Disable Charger Block if you need Conext XW+ is inside of the charger to override this feature. block time window. 3) The Conext XW+ is load shaving. 3) Check the load shave settings. If the...
  • Page 106 Troubleshooting Problem Possible Cause Solution AC1 or AC2 LED is AC voltage and frequency at the AC flashing, but will not input terminal are within nominal start charging range, but the inverter output is not yet synchronized to the AC source. (allow 40 seconds to There are four possible causes: synchronize).
  • Page 107 Battery Charger Troubleshooting Problem Possible Cause Solution Charger amperage AC frequency at the AC input terminal Check the settings on the AC Settings drops off before full may be out-of-tolerance (too high or menu. Check for the correct AC charging has finished low) or the AC voltage may be outside voltage or frequency at the AC input (no Fault LED).

  • Page 108: Faults And Warnings

    Faults and Warnings When a fault or warning message appears on the Conext SCP, you can acknowledge the message to clear the screen. To acknowledge a fault or warning message, press the Enter button. This action does not clear the fault or warning condition - consult Table 4-3 and Table 4-6 for suggested actions after you have acknowledged the message.

  • Page 109: Warning Messages

    Faults and Warnings Warning Messages Warning messages appear on the Conext SCP to alert you to an impending system change. You can view the 20 most recent warning messages using the Conext SCP’s warning log, accessible from the View Device Info menu. Each warning has a time stamp to let you know the date and time that the warning appeared.
  • Page 110 Manual warning Require you to acknowledge them before you can proceed with configuring or operating the Conext XW+. Manual warnings are usually in the form of a Yes/No question that you may acknowledge by pressing the Enter button on the Conext SCP for Yes and the Exit button for No.
  • Page 111 Faults and Warnings Table 4-3 Warning Messages Conext System Warning Control Panel Warning Number Message Type Cause Solution FET1 Over Automatic Internal temperature is Temperature over 85 °C (185 °F). AC input voltage may be Check for high input AC too high while charging.
  • Page 112 Make sure Charge and or the charge setting is Equalize are enabled. Verify not adequate. the Conext AGS trigger is set to Stop Float. If Stop V is enabled, then the voltage level should be above the Eqlz Voltage level.
  • Page 113 Warning Number Message Type Cause Solution W501 Inv/Chg is trying to Manual Non-volatile memory Normal operation may return or fix a memory warning may go to fault. Turn Conext problem XW+ off and on to resume normal operation. 975-0240-01-01 4–15...

  • Page 114: Fault Messages

    You can view the 20 most recent fault messages on the Conext System Control Panel by selecting Fault Log from the Device Info menu in the Conext XW+ Setup Menu. If several faults occur before you can acknowledge or clear them, they are displayed together on a fault list.

  • Page 115: Fault Types

    There are three types of fault messages: automatic faults, manual faults, and escalating automatic faults. Table 4-4 describes how they differ in their behavior and how you can respond to them when they appear on the Conext System Control Panel.
  • Page 116 Troubleshooting Table 4-5 Inverter Operation After Faults State when Faults Faults Occur Action After Faults F23 to F40: Grid Support (Peak Unit moves to AC bypass and Anti-Islanding Load Shaving or waits for nominal grid Selling) conditions to return for a minimum of five minutes.
  • Page 117 Faults and Warnings Table 4-6 Fault Messages Fault Number Message Fault Type Cause Solution AC Output Under Escalating AC under voltage Clear the fault and attempt Voltage Auto Fault. shutdown at 108 V. The restart. If problem persists, Must occur inverter has shut down to call customer service.
  • Page 118 Troubleshooting Table 4-6 Fault Messages Fault Number Message Fault Type Cause Solution AI Over Automatic Over-frequency anti- No action required. The Frequency islanding, caught by the inverter stops selling and AC qualification limit. disconnects from the grid. When the fault clears, a five-minute timer begins counting down.
  • Page 119 Faults and Warnings Table 4-6 Fault Messages Fault Number Message Fault Type Cause Solution AI L2 Under Automatic See F34. See F23. Voltage AI L1L2 Under Automatic See F34. See F23. Voltage AI L1 Under Automatic Under-voltage anti- See F23. Voltage islanding, fast disconnect, 66 VAC.
  • Page 120 Capacitor Over Automatic Capacitor over- Clear the fault and attempt Temperature temperature shutdown at restart. Ensure adequate 105 °C. ventilation around the Conext XW+. Reduce AC loads. Controller fault Manual Controller fault Service required. DC Under Voltage Automatic DC under-voltage...
  • Page 121 Faults and Warnings Table 4-6 Fault Messages Fault Number Message Fault Type Cause Solution EEPROM Error Manual No action. Clear fault and resume operating or configuring the unit. If the fault persists, have the unit serviced. EEPROM Error Manual See F52. EEPROM Error Manual See F52.
  • Page 122 5 minutes Turn off the unit by holding before the power button for 5 sec. becoming a manual fault. Disconnect the Conext XW+ from the battery bank for 20 sec. AC Overload L1 Escalating Excessive load on the AC See F63 Auto Fault.
  • Page 123 The transformer The fault clears when the Temperature temperature is over transformer temperature falls 140 °C. to 125 °C. Ensure adequate ventilation around the Conext XW+. Reduce AC loads. External Sync Manual Check connections and Failed cable on external AC sync port.
  • Page 124 Troubleshooting •THIS PAGE INTENTIONALLY BLANK• 4–26 975-0240-01-01...
  • Page 125 Specifications Appendix A, “Specifications” provides the electrical and mechanical specifications for the Conext XW+ Inverter/Charger. DISCLAIMER REGARDING STATUS DATA “ +”) STATUS DATA REPORTED BY THE XW INVERTER CHARGER APPROXIMATE VALUES INTENDED TO PROVIDE GENERAL AND NON EXACT INFORMATION ABOUT THE XW...

  • Page 126: Electrical Specifications

    Specifications Electrical Specifications Note: Specifications are subject to change without prior notice. Table A-1 Conext XW+ Inverter/Charger Electrical Specifications Conext XW+ 6848 NA Conext XW+ 5548 NA Continuous Output Power 6,800 W 5,500 W Surge Rating (Overload for 1 minute)

  • Page 127: Grid-Tie Specifications

    L-L: 110 A Power Factor Corrected Charging PF (0.98) Typical Transfer Time 8 ms a.Conext XW+ 6848 NA (Part Number 865-6848-01) b.Conext XW+ 5548 NA (Part Number 865-5548-01) Grid-tie Specifications Note: Specifications are subject to change without prior notice. Function...

  • Page 128: Response To Abnormal Grid Conditions

    Specifications Response to Abnormal Grid Conditions Note: Specifications are subject to change without prior notice. Nominal Clearing Category Function Fixed Setting Time Abnormal Voltage Fast (VAC) HECO TOV 288 V (split-phase) < 1 cycle VAC High Off 144 V (single-phase) VAC High Off 270 V (±...

  • Page 129: Conext Xw+ Overload Capability

    Conext XW+ Overload Capability Loads connected to the inverter are seldom constant, and large loads are often operated for short periods. To accommodate larger loads, the Conext XW+ can temporarily exceed its continuous output power rating. The graphs below illustrate approximate operation time versus load. Inverter operation time during overload is limited by both inverter internal temperature protection and by the product of AC output current and elapsed time.
  • Page 130 Specifications Conext XW+ 5548 UL L1-N or L2-N: Imbalanced Line Loading 9500 Surge Power Versus Time 9000 5 Minutes 5200 30 Minutes 4200 Time in Seconds Conext XW+ 6848 UL L-L Inverter Surge Profile 12500 Surge Power Versus Time 5 Minutes...
  • Page 131 Electrical Specifications Conext XW+ 6848 UL L1-N or L2-N: Imbalanced Line Loading 12000 Surge Power Versus Time 5 Minutes 8800 30 Minutes 6300 4800 Time in Seconds Figure A-1 Conext XW+ AC Overload Capability 975-0240-01-01 A–7...

  • Page 132: Output Power Versus Ambient Temperature

    Specifications Output Power Versus Ambient Temperature Note: For the Conext XW+ 6848 model, the power can be limited by the installed DC and AC breakers. For example, at 8500 W the DC or AC breakers may disconnect before the 30 minute rating.

  • Page 133: Conext Xw+ Efficiency

    Electrical Specifications Conext XW+ Efficiency Inverting Efficiency (Typical) 100% XW+ 6848 XW+ 5548 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000 Output Power (Watts) Figure A-3 Inverting Efficiency (Typical) 975-0240-01-01 A–9...

  • Page 134: Charging Efficiency (Typical

    Specifications Charging Efficiency (Typical) 100% XW+ 5548 XW+ 6848 Charge Current (Amps) Figure A-4 Charging Efficiency (Typical) A–10 975-0240-01-01...

  • Page 135: Charging Efficiency Power Factor

    Electrical Specifications Charging Efficiency Power Factor XW+ 6848 100% XW+ 5548 Battery Current (Amps) Figure A-5 Charging Efficiency (Power Factor) 975-0240-01-01 A–11...

  • Page 136: Mechanical Specifications

    Up to three clusters possible using multi- cluster for a total of 12 units when using an external AC contactor. System Network Conext Xanbus™ (publish-subscribe network, no need for hubs or special cards) Emissions FCC Part 15, Class B Industry Canada ICES-003 Issue 5,...

  • Page 137: Accessories

    Control & Monitoring L2-Gen L1-Grid L2-Grid L1-Load Power L2-Load Transformer Power Bridge Figure A-6 Conext XW+ Block Diagram Accessories Accessory Part Number Conext XW+ Power Distribution Panel 865-1015-01 Conext XW+ Power Distribution Panel 865-1014-01 (Without AC Breakers) Conext XW+ Conduit Box...
  • Page 138 Specifications •THIS PAGE INTENTIONALLY BLANK• A–14 975-0240-01-01...

  • Page 139: B Default Settings

    Default Settings Appendix B contains the default configuration settings and ranges for the Conext XW+ Inverter/Charger. Configuration settings can be viewed and changed using the Conext System Control Panel.

  • Page 140: Default Settings And Ranges

    Default Settings Default Settings and Ranges Figure B-1 shows how the advanced Conext configuration menus are organized in the Conext System Control Panel. XW+ 6848 00:Inv Custom Settings appears when [44V] Batt Type is set to Custom [10s] [2.0V] LithiumIon appears when Batt...

  • Page 141: Inverter Settings Menu

    Default Settings and Ranges Inverter Settings Menu Item Default Setting Range Step Size 44 V 36–48 V Low Batt Cut Out 0-10 V LBCO Hysteresis 0–600s LBCO Delay 65 V 58–70 V High Batt Cut Out 50 W 25–255 W Search Watts 1–25s Search Delay...

  • Page 142: Lithiumion Submenu

    Default Settings Item Default Setting Range Step Size 108 mV/C (Flooded, 0–180 mV/C Batt Temp Comp Gel) 84 mV/C (AGM) a.Custom battery default settings are based on the Flooded battery default set- tings. The Gel and AGM default settings are provided here for reference only. LithiumIon Submenu Item Default Setting...

  • Page 143: Grid Support Menu

    LBCO is 44 V then the minimum Grid Supp Volts is 46 V. b.This setting is restricted to the selected external AC1 breaker size. c.When Load Shaving is enabled, if Load Shave Start and Load Shave Stop are set to the same time, the Conext load shaves continuously. Gen Support Menu Setting...

  • Page 144: Connections Menu

    Default Settings Item Step Size Default Range Trigger Level— 45.0°C 30.0–60.0°C HighBattTemp Clear Level— 35.0°C 30.0–60.0°C HighBattTemp Trigger Level— 0.0°C -30.0–10.0°C LowBattTemp Clear Level— 5.0°C -30.0–10.0°C LowBattTemp 0–600s Trigger Delay 0–600s Clear Delay a.The Trigger Src setting (and the settings below Trigger Src) appear only if Manual Aux setting has been set to Automatic.
  • Page 145 B–3 grid support settings menu description 3–11 default settings B–5 charger status LED 2–4 description 3–26 charging cycle diagram 3–13 Conext SCP device setup menus 2–13 home screen 2–14 features 1–12 2–2 2–10 select device menu 2–13 system status screen 2–14 inverter information panel 1–11...
  • Page 146 2–17 3–27 setup menus 2–13 specifications electrical A–2 mechanical A–12 standby 2–17 standby button 2–10 2–11 startup/shutdown button 2–7 state of charge LEDs 2–8 surge performance 1–7 System Control Panel. See Conext SCP system home screen 2–12 IX–2 975-0240-01-01...
  • Page 148 Schneider Electric http://solar.schneider-electric.com As standards, specifications, and designs change from time to time, please ask for confirmation of the information given in this publication. © 2015 Schneider Electric. All rights reserved. 975-0240-01-01 Revision H Printed in China...
