Monitoring Operation

Reading the System Status Screen

Reading the Conext XW+ Home Screen

2–14
The System Status screen displays:
• Qualified AC source (if applicable) and total power to and from the source.
• Battery voltage and capacity level.
• Net battery input or output current.
• Total inverter loading.
• Time and date.
System Status
20.4A
115V
menu
9:18AM
Menu arrow indicates the Enter
button. Pressing Enter displays
the Select Device menu.

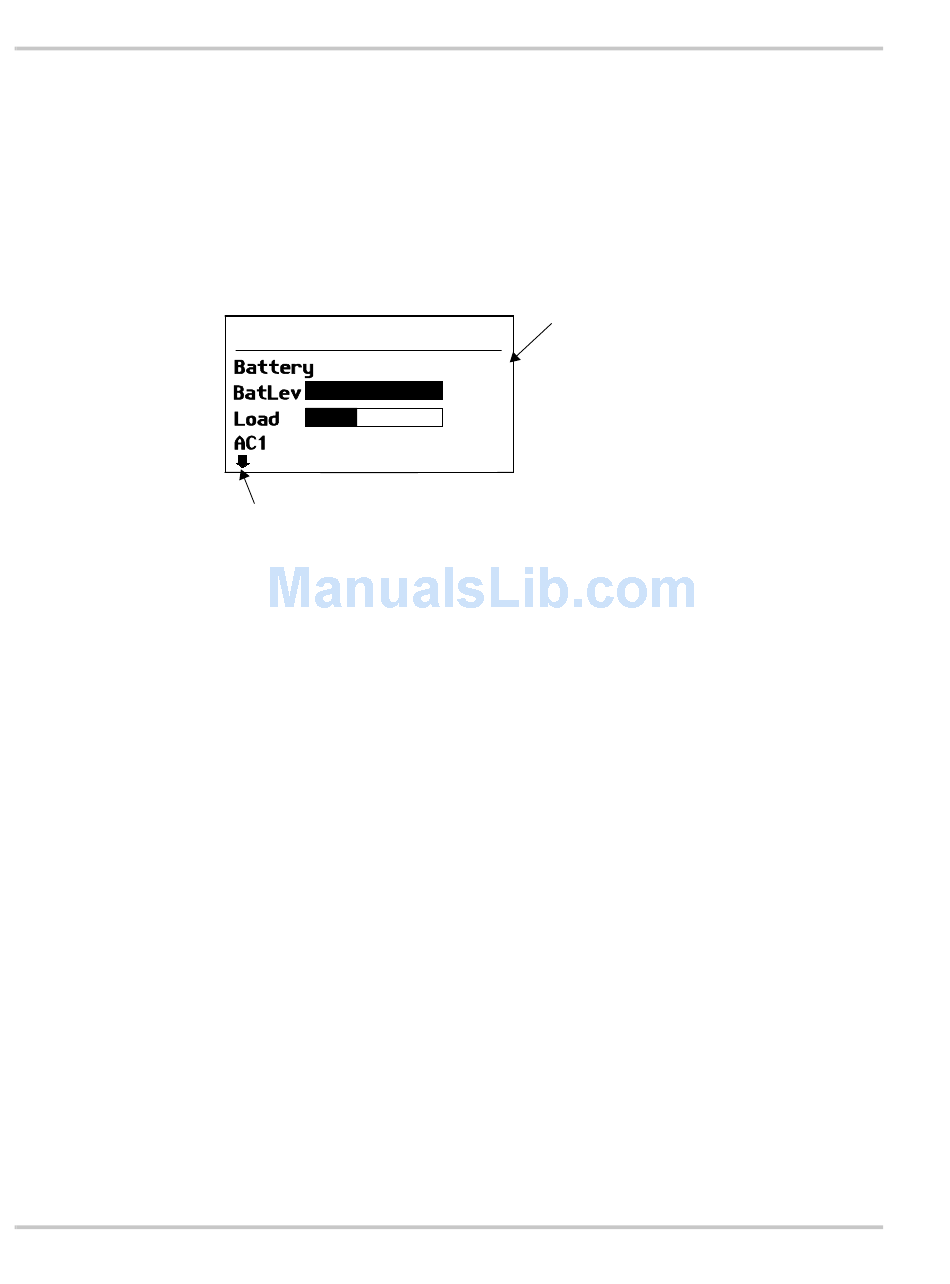

Figure 2-6 System Status Screen
The Conext XW+ Home screen displays real-time operational data specific to the
Conext XW+. The Conext XW+ status changes according to the states described
in Table 2-1 on page 2–15.
To view the Conext XW+ Home screen:
• On the system Home screen, press the down arrow button until the Conext
XW+ Home screen appears.
Line 1: Battery voltage and input/output
current (positive when charging; negative
when inverting)
53.9V
E--F
Line 2: Battery level meter
1235W
Line 3: Power supplied to loads
Line 4: AC input source and line-to-neutral
3202W
voltage (averaged between L1 and L2). The
Mar 10
bottom left corner displays AC1 or AC2
depending on the active input source. When
selling to the grid, the power displayed is
positive. When charging, the power displayed
is negative.
