Monitoring Operation

Monitoring Operation with the Conext SCP

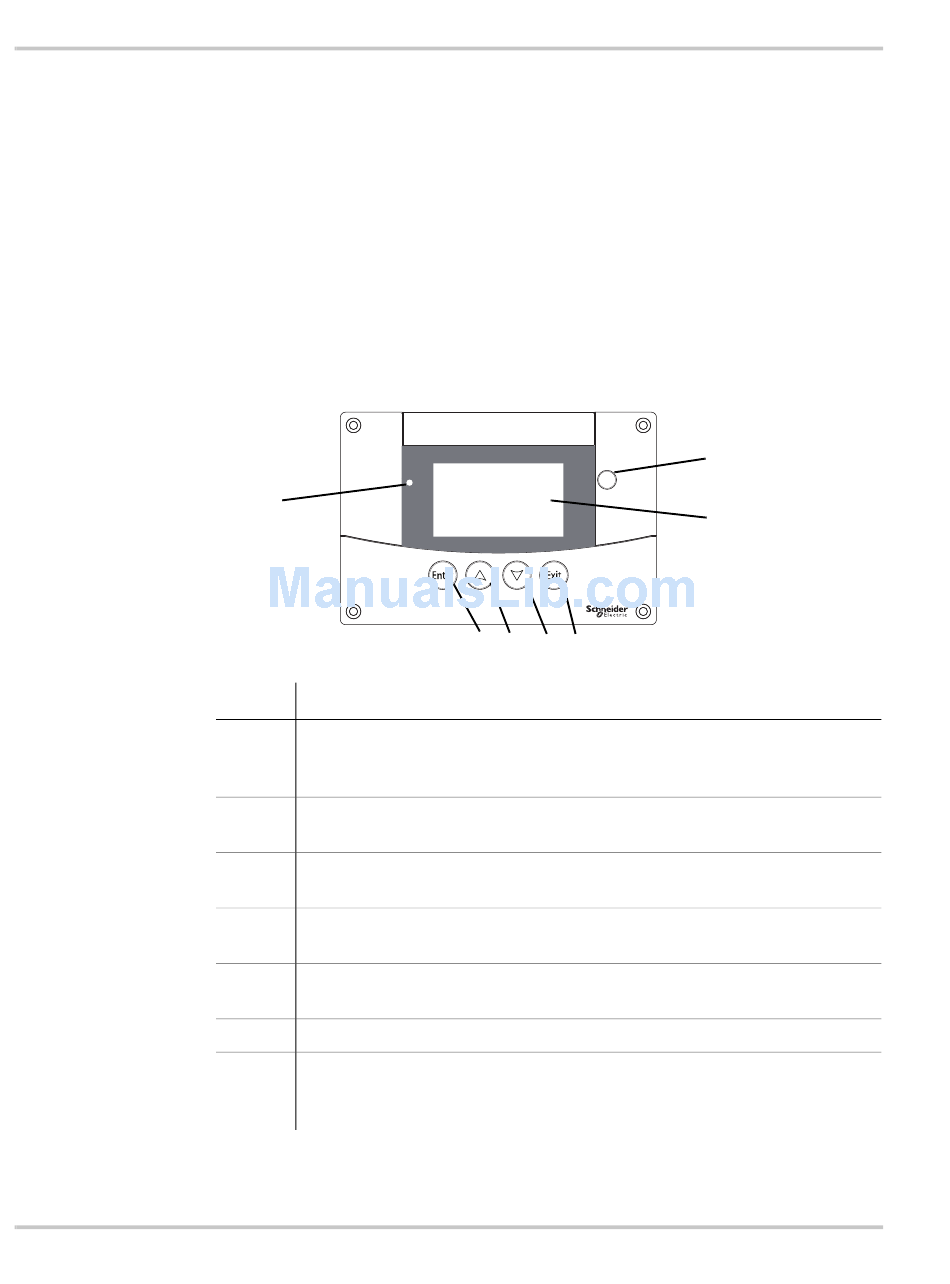

Conext System Control Panel Features

2–10
The Conext System Control Panel (Conext SCP) provides remote configuration
and monitoring capability for the Conext XW+ and all other Xanbus-enabled
devices in the network.
You can monitor Conext XW+ operation on the Conext SCP using the:
• System Status screen (see page 2–14)
• Conext XW+ Home screen (see page 2–14)
• Conext XW+ Meters Menu (see page 2–18).
Event/Warning
1
Feature Description
1 Event/Warning light indicates a device on the system has a fault or
warning condition and requires attention. The light flashes when a
warning occurs and turns on steadily when a fault occurs.
2 Enter button confirms selection of a menu item or displays the next
screen.
3 Up arrow button scrolls upwards through screen text or increases a
selected value.
4 Down arrow button scrolls downwards through screen text or
decreases a selected value.
5 Exit button cancels selection of a menu item or displays the previous
screen.
6 Display shows menus, settings, and system information.
7 Standby button disables inverting and charging on all Conext XW+
units in the system when pressed for one to two seconds. To enable
inverting and charging, press the Standby button again.
Conext XW SCP
2
3 4 5
7
Standby
6
975-0240-01-01
