Conext XW+ Home Screen The Conext XW+ Home screen is the first of the
device Home screens. Each Conext XW+ installed in the system has its own
Home screen.
The Conext XW+ Home screen displays status information for the Conext XW+.
The screen appearance varies with the status of the Conext XW+ (standby,
inverting, etc.) For more information, see "Reading the Conext XW+ Home
Screen" on page 2–14.
To display the Conext XW+ Home screen:
• While viewing the System Status screen, press the down arrow key.
This section describes the next level of screens and menus on the Conext SCP.
Select Device Menu The Select Device menu displays a list of Xanbus-
enabled devices in the system, including the Conext XW+ and the Conext SCP.
From this menu you can access the Setup menus for each device in the system.
The Select Device menu also contains the Clock menu (where the time and
date are set) and the System Settings menu (where system-level settings can
be configured). These menus and the Conext SCP menu are available from the
Select Device menu, regardless of the number of Xanbus-enabled devices
installed.
To display the Select Device menu:
• While viewing the System Status screen, press Enter.
Device Setup Menus Device Setup menus display status information (on the
Meters screen) and changeable settings. Changeable settings are identified by
the square brackets [ ] around values in the right-hand column.
To display the Setup menu for a device:
• Highlight the device name on the Select Device menu and press Enter.
Alternatively, from the device Home screen, press Enter.
Select Device menu
Select Device
XW+ 6848

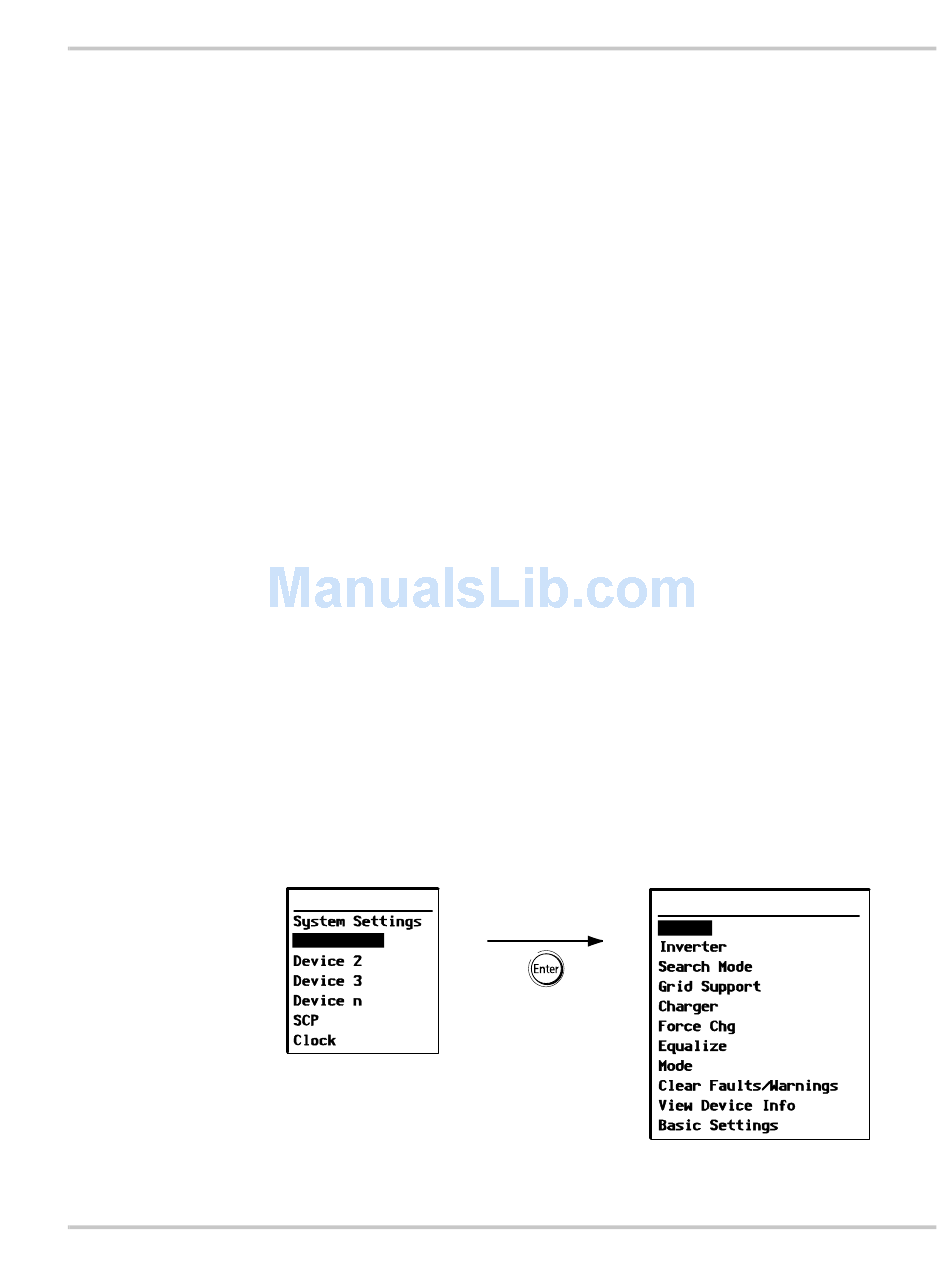

Figure 2-5 Selecting a Device Setup Menu
Monitoring Operation with the Conext SCP
Select device from list
and press Enter to view
Device Setup menu
Conext XW+ Setup menu
XW+ 6848 00: Setup
Meters
[Enabled]
[Disabled]
[Disabled]
[Enabled]
[Bulk]
[Disabled]
[Operating]
