Using the Standby Button

Conext System Control Panel Navigation

Viewing the Conext System Control Panel Home Screens

975-0240-01-01

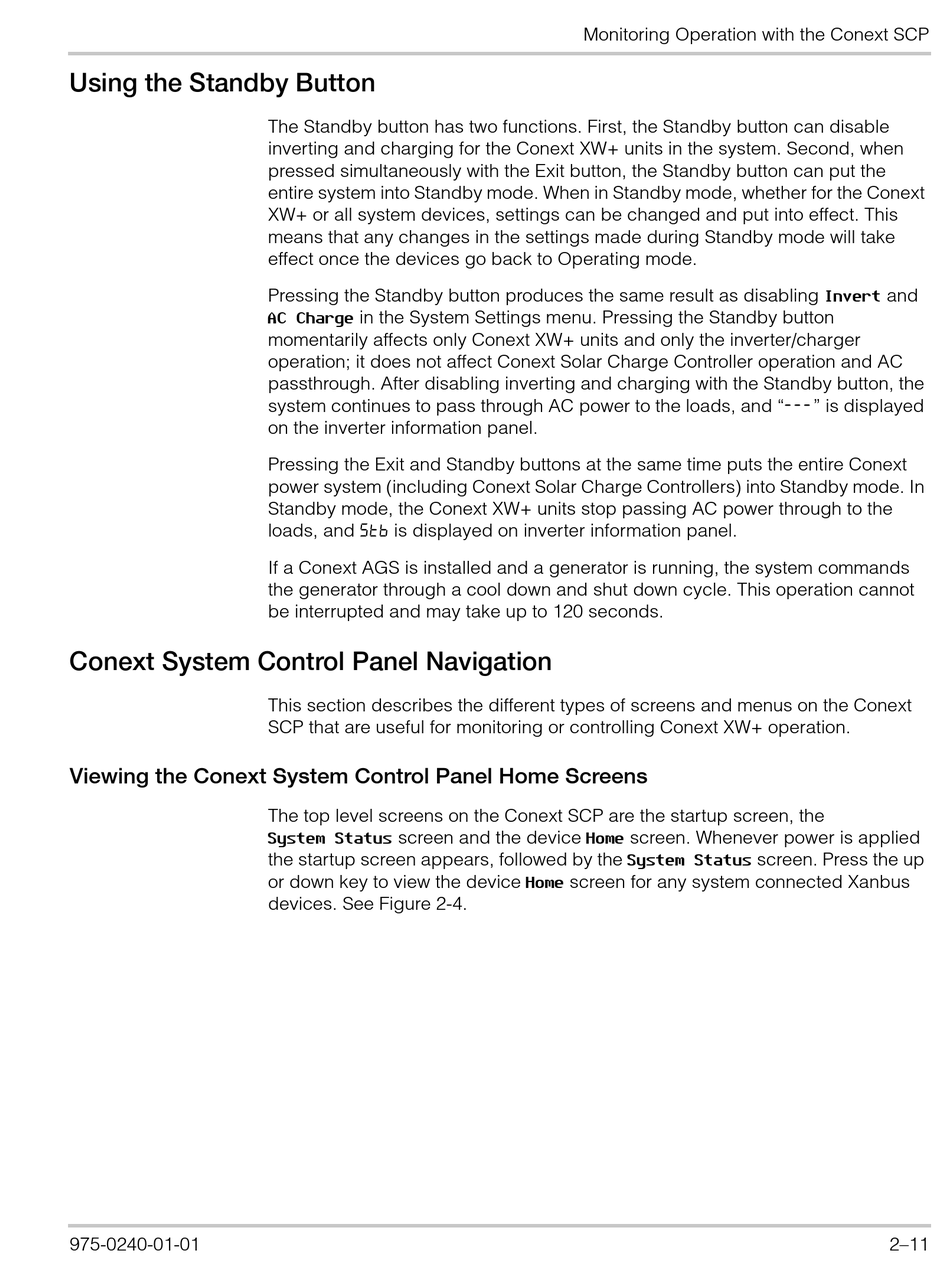

The Standby button has two functions. First, the Standby button can disable
inverting and charging for the Conext XW+ units in the system. Second, when
pressed simultaneously with the Exit button, the Standby button can put the
entire system into Standby mode. When in Standby mode, whether for the Conext
XW+ or all system devices, settings can be changed and put into effect. This
means that any changes in the settings made during Standby mode will take
effect once the devices go back to Operating mode.
Pressing the Standby button produces the same result as disabling Invert and
AC Charge in the System Settings menu. Pressing the Standby button
momentarily affects only Conext XW+ units and only the inverter/charger
operation; it does not affect Conext Solar Charge Controller operation and AC
passthrough. After disabling inverting and charging with the Standby button, the
system continues to pass through AC power to the loads, and "" is displayed
on the inverter information panel.
Pressing the Exit and Standby buttons at the same time puts the entire Conext
power system (including Conext Solar Charge Controllers) into Standby mode. In
Standby mode, the Conext XW+ units stop passing AC power through to the
loads, and  is displayed on inverter information panel.
If a Conext AGS is installed and a generator is running, the system commands
the generator through a cool down and shut down cycle. This operation cannot
be interrupted and may take up to 120 seconds.
This section describes the different types of screens and menus on the Conext
SCP that are useful for monitoring or controlling Conext XW+ operation.
The top level screens on the Conext SCP are the startup screen, the
System Status screen and the device Home screen. Whenever power is applied
the startup screen appears, followed by the System Status screen. Press the up
or down key to view the device Home screen for any system connected Xanbus
devices. See Figure 2-4.
