Introduction

Conext System Control Panel

The Conext System Control Panel (Conext SCP) or Conext ComBox is required for
configuring the Conext XW+ and other Xanbus-enabled system components.
The Conext SCP features:
•
•
•
•
1–12
A liquid crystal display which provides graphics and text describing real time
operation and status information.
LED event and warning indicator.
Internal clock which is used to control time-dependent Conext XW+ functions.
Buttons to select configuration menus, customize Conext XW+ functions and clear
faults and warnings.
Conext SCP
Event/Warning

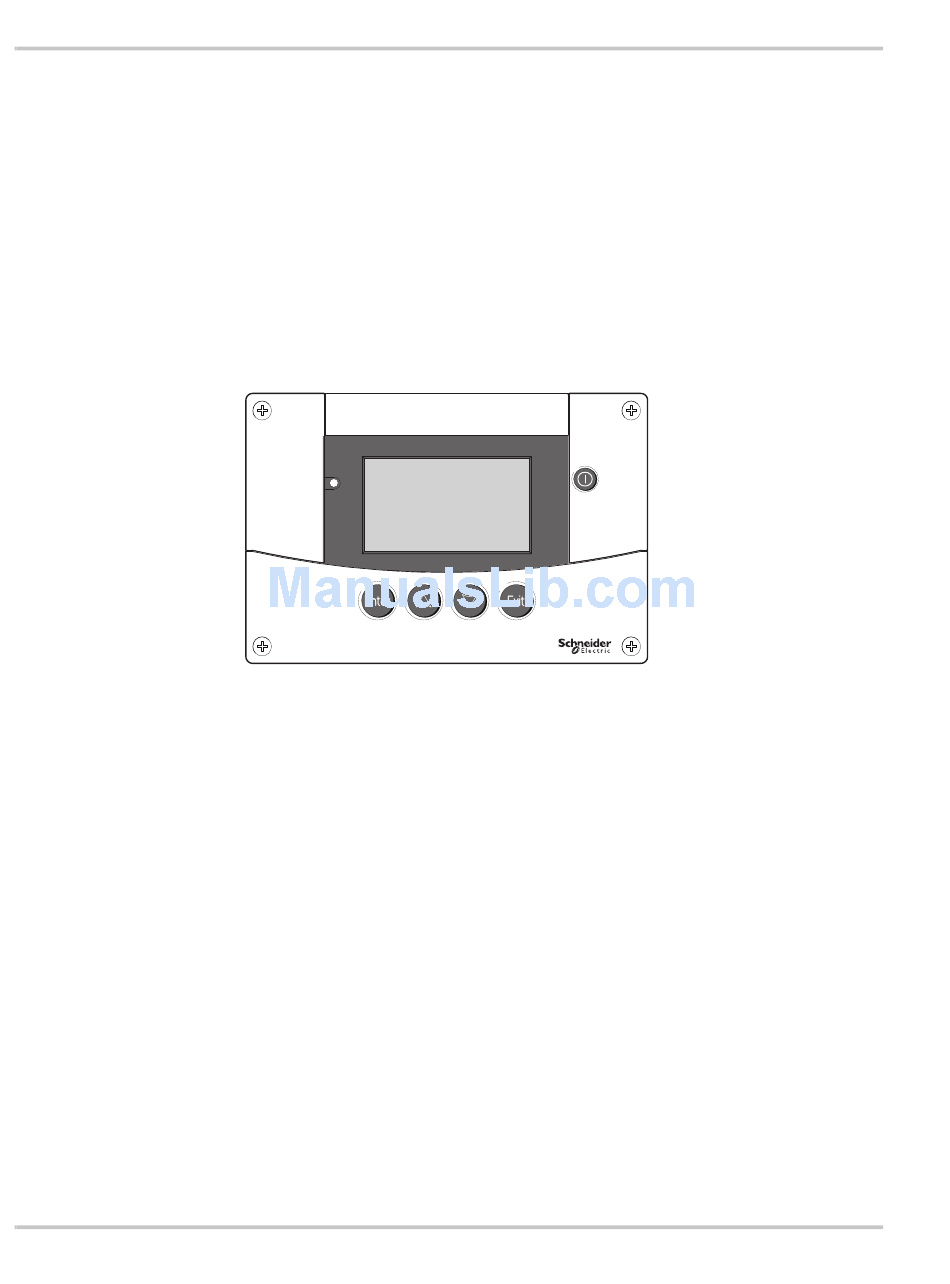

Figure 1-8 Conext System Control Panel
Standby
975-0240-01-01
