Monitoring Operation

Reading the Meters Screen

Table 2-2 Meters Screen
Screen Item Description
AC input power connected to the Conext XW+ AC1 terminals, in volt-amps and watts.
AC1
AC1 is assumed to be connected to the utility grid, but can be connected to any other
AC source.
AC input voltage and current connected to the Conext XW+ AC1 L1 terminals. This input
AC1 in L1
voltage display may drift slightly before the Conext XW+ has synchronized to the grid.
AC input voltage and current connected to the Conext XW+ AC1 L2 terminals. This input
AC1 in L2
voltage display may drift slightly before the Conext XW+ has synchronized to the grid.
AC frequency connected to the Conext XW+ AC1 terminals.
AC1 Freq
AC input power connected to the Conext XW+ AC2 terminals, in volt-amps and watts.
AC2
AC2 is assumed to be connected to a generator, but can be connected to any other AC
source.
AC input voltage and current supplied to the Conext XW+ from the AC2 L1 input. This
AC2 in L1
meter indicates the Conext XW+ is drawing power from the generator to charge the
battery or power the AC loads.
AC input voltage and current supplied to the Conext XW+ from the AC2 L2 input. This
AC2 in L2
meter indicates the Conext XW+ is drawing power from the generator to charge the
battery or power the AC loads.
2–18
The Meters screen displays total system power production, grid voltage and
current status, and load voltage and current status.
To view the Meters screen:
• On the Conext XW+ setup menu, highlight Meters and press Enter.
XW+ 6848 00: Setup
Meters
[Enabled]
[Disabled]
[Disabled]
[Enabled]
[Disabled]
[Operating]

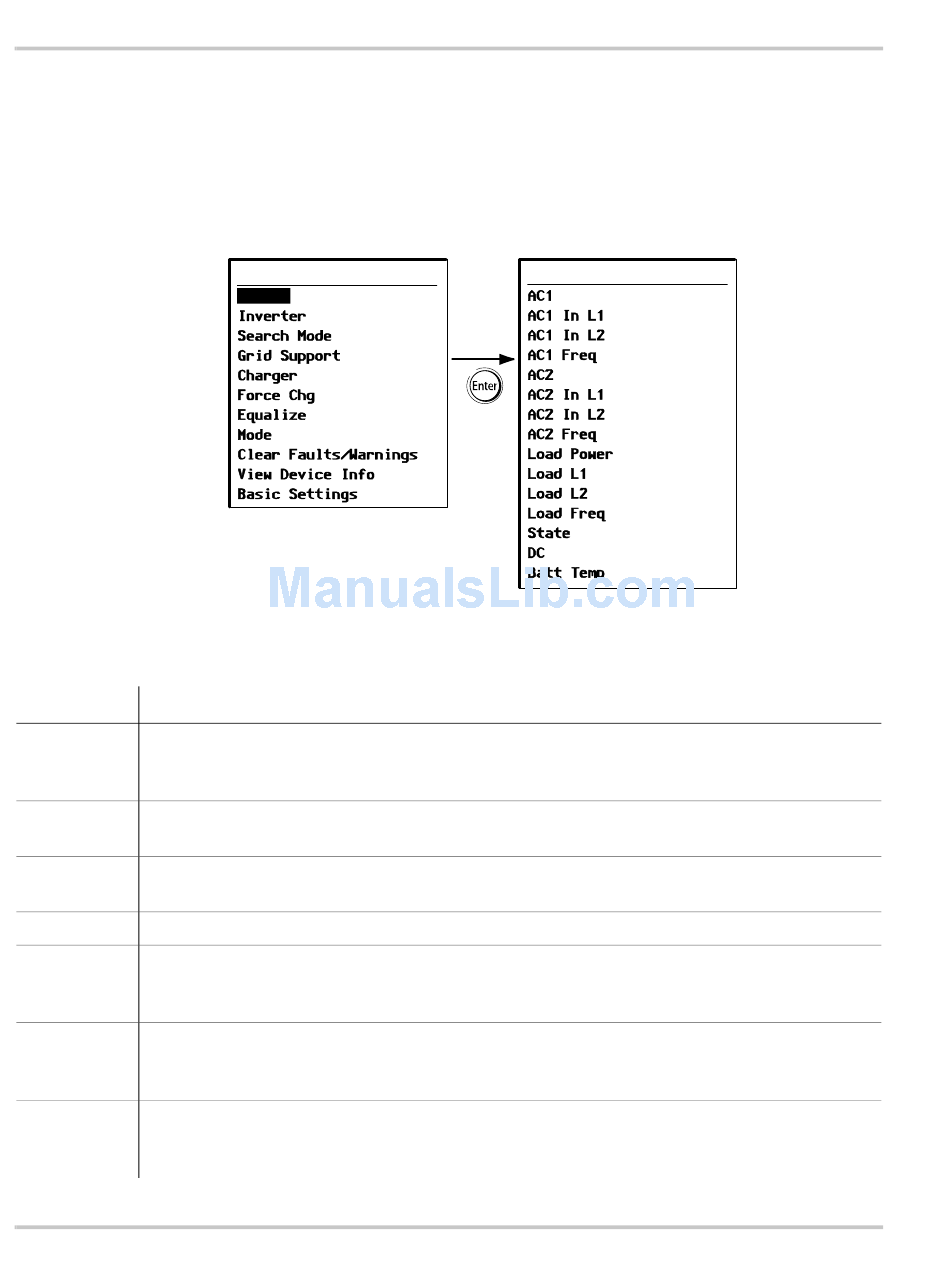

Figure 2-8 Viewing the Meters Screen
XW+ 6848 00: Meters
[Bulk]
4500VA 3200W
21.1A 120V
21.1A 120V
60Hz
0VA 0W
0.0 A 0V
0.0 A 0V
0Hz
4500VA 3200W
21.1A 120V
21.1A 120V
60Hz
Float
3.7A 57.4V
20 ° C
