Mode Switch - Sam4s ER-5200 Service Manual

3 Installation and Operation
3-3 Operation
Note: Before using this Electronic Cash Register (ECR) for the first time, leave it powered ON in the REG mode
for a at least 24 hours. This allows the Ni-Cad battery, which maintains the ECR's memory while the
power is OFF, to fully charge.

3-3-1 Mode Switch

The position of the Mode Switch determines the action of the ECR. The modes are as shown in Table 3-1
VOID

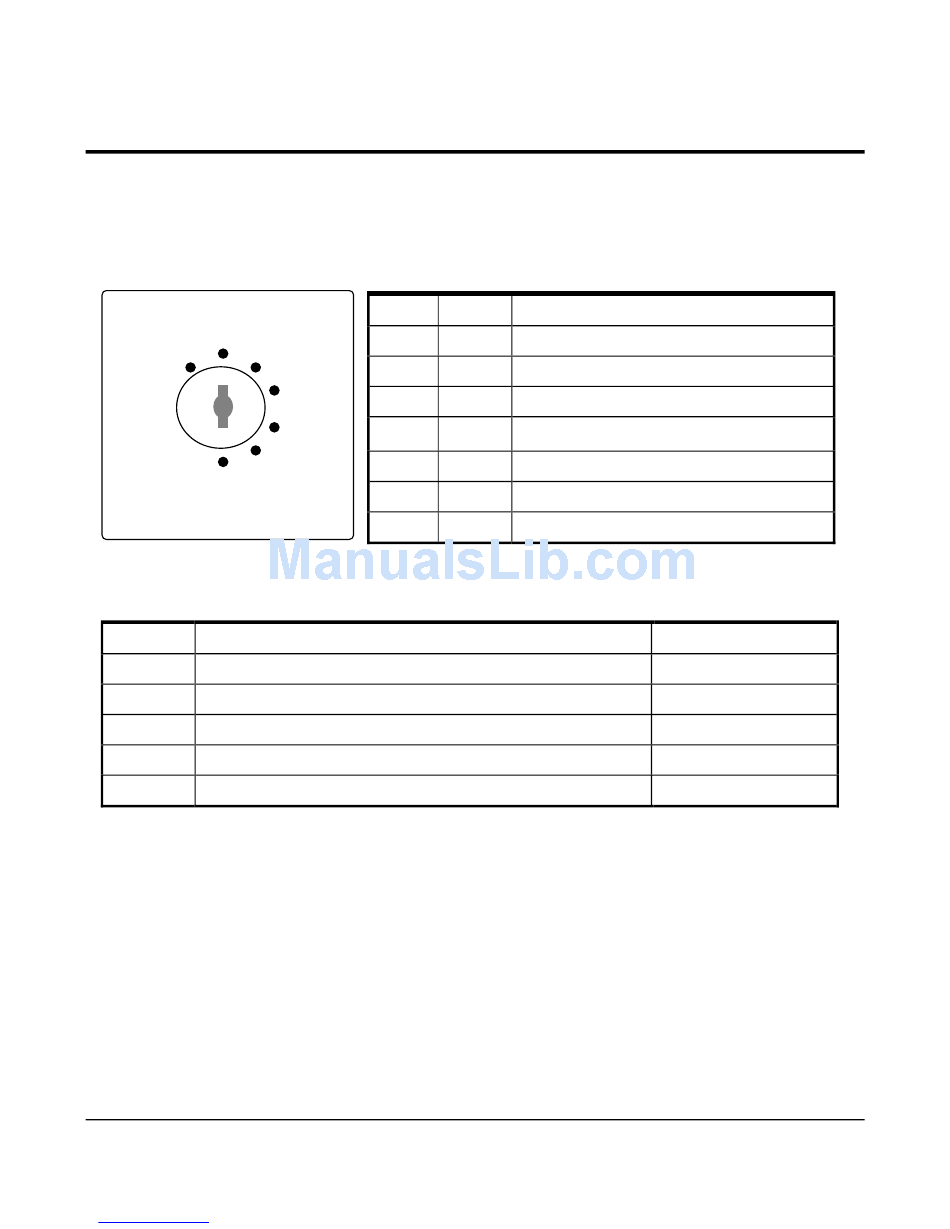

Figure3-5 Mode Switch
The mode keys can be used to access the following key lock positions.
Mode
VOID
X
Z
PGM
C
Note : The Key can be removed from the key lock in the OFF or REGISTER position.
3-4
Downloaded from www.Manualslib.com
Mode
OFF
VOID
REG
X
Z
P
S
Accessible Position
Void, Off, Register, Manager
Off, Register, Manager
Off, Register, Manager, Clear Totals
Void, Off, Register, Manager, Clear Totals, Program
Void, Off, Register, Manager, Clear Totals, Program, Service Mode
manuals search engine
Key
VD Use to void (correct) items outside of a sale.
OFF - The Register is inoperable.
REG REG Use for normal registrations.
Use to read register reports and perform other manager
X X
functions.
Z Z Use to read register reports and reset totals to zero.
PGM P Use to program the register
S S Use for H/W tests and special setting.
Table3-3 Mode Switch Function
Table3-4 Key Function
Function
Remark
SAM4S ER-5200 Series
