Sam4s ER-5200 Service Manual page 96

10 PCB Layout and Parts List

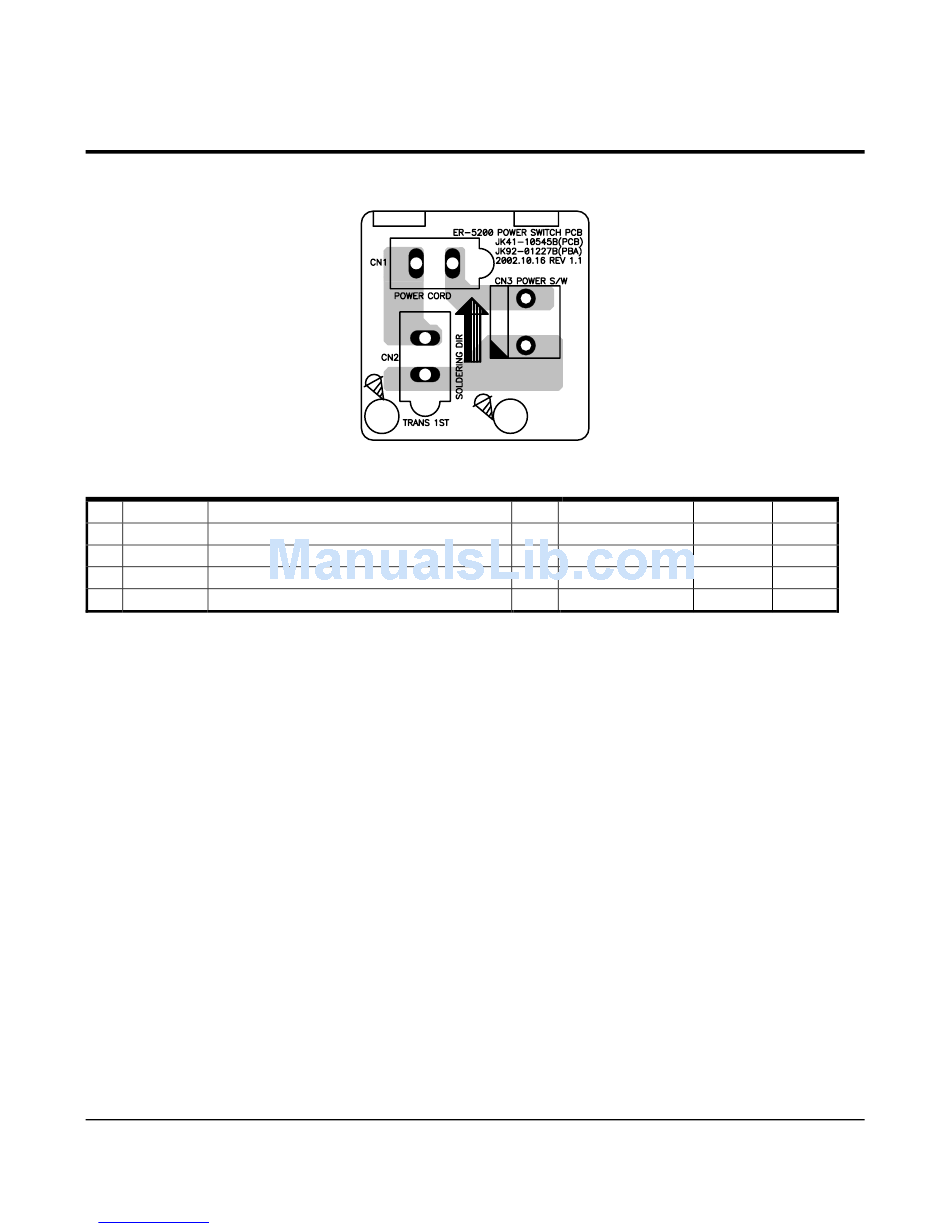

10-5 Power Switch PCB Layout
10-5-1 Component Side View
10-5-2 Parts List
No. Parts No.
- JK92-01227B
- 3711-000190
- 3711-000829
- JK41-10545B
10-10
Downloaded from www.Manualslib.com
Description / Specification
PBA SUB-POWER SW:ER-5200/5500,STD
CONNECTOR-HEADER:1WALL,2P,1R,7.92mm,STRA
CONNECTOR-HEADER:BOX,2P,1R,6.2mm,STRAIGH
PCB-POWER SWITCH:ER-52/5500,FR-1,1L,T1.6
manuals search engine
Q`ty Design- Location Serviceable
1 ASSY
1 CN3
2 CN1, CN2
1
SAM4S ER-5200 Series
Remark
Y
Y
Y
Y
