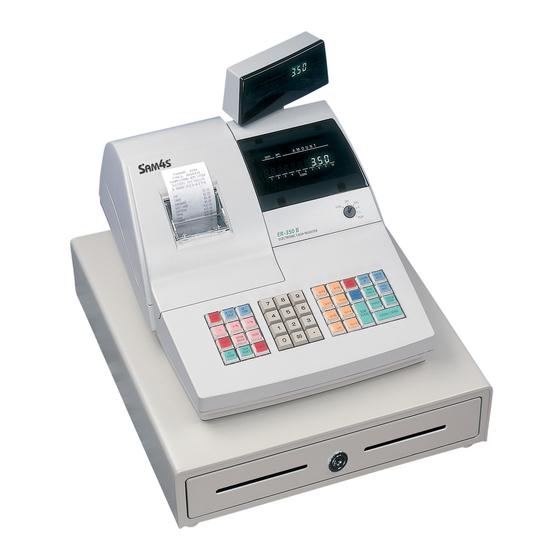

ELECTRONIC CASH REGISTER ER-350ⅡSERIES SERVICE Manual ELECTRONIC CASH REGISTER C O N T E N T S Precaution Statements Product Specifications Installation and Operation Disassembly and Assembly Alignment and Adjustment Troubleshooting Exploded Views and Parts List PCB Parts List Block Diagram 10.
Page 2
About this Manual This service manual describes how to perform hardware service maintenance for the SAM4S ER-350II Series Electronic Cash Register. Notes Notes may appear anywhere in the manual. They describe additional information about the item. Precaution symbols . Indicates a Safety Precaution that applies to this part component.
Page 3
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic or machine readable from without prior written permission of Shin Heung Precision . SAM4S ER-350Ⅱ Series Service Manual First edition. JAN 2006. V1.0 Printed in KOREA...
Page 4
Overview of this ECR This service manual provides the technical information for many individual component systems, circuits and gives an analysis of the operations performed by the circuits. If you need more technical information, please contact our service branch or R&D center. Schematics and specifications provide the needed information for the accurate troubleshooting. All information in this manual is subject to change without prior notice.
Remplacer uniquement avec une batterie du même recommended by the manufacturer. type ou d’un type équivalent recommandé par le Dispose used batteries according to the manufacturer’s constructeur. instructions. Mettre au rebut les batteries usagées conformément aux instructions du fabricant. SAM4S ER-350II SERIES...
5. Use only a grounded-tip soldering iron when soldering or unsoldering ESDs. 6. Use only an anti-static solder removal device. Many solder removal devices are not rated as anti- static; these can accumulate sufficient electrical charge to damage ESDs. SAM4S ER-350II SERIES...
Printer head Power Supply Voltage 24V ± 10% Reset, Sensor, Printer Motor 5V ± 6% Paper_end_sensor and Thermister Reliability Approx. 10 million lines Weight Approx. 450g Table 2-2. Printer Specifications This specification is subject to change without notice. SAM4S ER-350II SERIES...
2. Insert the ribbon cassette as shown in Figure 3-3. Pay particular attention to the placement of the ribbon the Print Head. 3. After inserting the ribbon cassette, turn the knob counterclockwise again to make sure the ribbon moves freely in the cassette. Figure 3-3. Ribbon Cassette SAM4S ER-350II SERIES...
Page 13
3. Press the Feed key until the paper comes out from the Printer. If you get an “E8” error message on the display, check the paper sensor and press the “C” key. Figure 3-4. Preparing Paper for Insertion Figure 3-5. Inserting the Paper SAM4S ER-350II SERIES...
Off, Register(REG), Manager(X), Clear Totals(Z) Void, Off, Register(REG), Manager(X), Clear Totals(Z), Program(PGM) Void, Off, Register(REG), Manager(X), Clear Totals(Z), Program(PGM), Service Mode(S) Table3-2 Key Function Note: The Key can be removed from the key lock in the OFF or REGISTER position. SAM4S ER-350II SERIES...
WARNING: Do an Initial Clear once only. Doing an Initial Clear more than once erases all programming and Totals. 3-3-3 Service Mode Diagnostics The Sam4s ER-350II series ECR offer several diagnostic routines while in the “S mode” Each of these tests requires that the Mode key be in the “S Mode” position. 3-3-3-(a) Test Serial 1.
Page 16
3. Press the C key one more to exit the routine. 3-3-4-(d) Test Mode Key PROCEDURE 1. Press the 3 key 4 times. Then press the CHARGE key. Rotate the Mode key from PGM mode VOID mode. 2. Position to show on the display each Mode’s code. SAM4S ER-350II SERIES...
(It may cause disconnection) · Be careful not to bind interface cables and AC power cord together. 4-1 Disassembling the Printer Block 4-1-1 Disassemble the harnesses Figure 4-1. Disassemble the harnesses 1. Disassemble the harnesses(A,B,C,D) from ass'y-printer. SAM4S ER-350II SERIES...
Page 18
Figure 4-2. Disassemble the cover-head 1. Disassemble the manual-cutter(2) by unscrewing two screws(1). 2. Disassemble the cover-head(3) from ass'y-printer(8). 3. Remove poly-washer(4) then pull out the latch-ass'y(5) from ass'y printer(8). 4. Disassemble the latch ass'y(5) into latch-ribbon(6) and worm-wheel(7). SAM4S ER-350II SERIES...
Page 19
4. Disassembly and Assembly 4-1 Disassembling the Printer Block 4-1-3 Disassemble the head Figure 4-3. Disassemble the head 1. Disassemble the unit-dot print head(2) from ass'y head-carriage(3) by unscrewing screw(1). 2. Remove e-ring(4) then disassemble the shaft-head(5) from ass'y-printer(6). SAM4S ER-350II SERIES...
Page 20
Figure 4-4. Disassemble the frame-ribbon 1. Disassemble the frame-ribbon(2) from ass'y-printer(11) by unscrewing two screws(1). 2. Remove e-ring(3) then disassemble the ass'y lead-screw(4) from ass'y-printer(11). 3. Remove poly-washer(10) then disassemble the others in the order of swing-plate(8), gear-idle_33(9), gear-screw(7) and bushing-cam(6). SAM4S ER-350II SERIES...
Page 21
1. Disassemble the cover-upper(2) from ass'y-printer(8) by unscrewing two screws(1). 2. Unlock the partition-paper(3) from cover-upper(2). 3. Disassemble the roller-guide(4) from ass'y-printer(8). 4. Disconnect the cable-FPC(5) from sub-mecha pcb(7). 5. Disassemble the sub-mecha PBA(7) from ass'y-printer(8) by unscrewing two screws(6). SAM4S ER-350II SERIES...
Page 22
4-6. Disassemble the gear assembly 1. Remove e-ring(1),bushing(2),washer-plain(3) then disassemble the ass'y worm(4) from ass'y-printer(10). 2. Remove e-ring(5) then disassemble the gear-knob(6) from ass'y-printer(10). 3. Remove e-ring(7) then disassemble the others in the order of gear-reduction(8), gear-idle_27(9) from ass'y-printer(10). SAM4S ER-350II SERIES...
Page 23
Figure 4-7. Disassemble the platen-plate 1. Disassemble the ass'y plate(1) from ass'y-printer(10) then separate platen-plate(2), damper-plate(3) and tape-plate(4). 2. Remove poly-washer(5) then disassemble the trigger-R(6) from ass'y-printer(10). 3. Remove poly-washer(7) then disassemble the trigger-L(8) and shaft-platen(9) from ass'y-printer(10). SAM4S ER-350II SERIES...
Page 24
4. Disassembly and Assembly 4-1 Disassembling the Printer Block 4-1-8 Disassemble the roller assembly Figure 4-8. Disassemble the roller assembly 1. Remove e-ring(1) then disassemble the bushing(2) and ass'y-roller(3) from ass'y-printer(7). 2. Disassemble the gear-roller(4) and bushing(5) from roller-feed(6). SAM4S ER-350II SERIES...
Page 25
1. Disassemble the ass'y-bottom(2) from ass'y-printer(9) by unscrewing two screws(1). 2. Disassemble the PBA sub-paper end(6) from ass'y-bottom(2) by unscrewing two bottom screws(3). 3. Disassemble the shaft-pressure(6), two roller-pressures(5) and two spring-pressures(7) from guide-bottom(8) by press the bottom of guide bottom(9) as illustrated in the figure(A). SAM4S ER-350II SERIES...
Page 26
Figure 4-10. Disassemble the PPG 1. Disassemble the PPG(2) from ass'y-printer(3) by unscrewing two screws(1). Figure 4-11. Disassemble the motor 1. Disassemble the motor-step feed(2) and motor-step cr(3) from ass'y frame-main(4) by unscrewing two (left end and right end) screws(1). 4-10 SAM4S ER-350II SERIES...
4. Recover the PRINTER HEAD position to initial status by rotating TRIGGER "R" to "-" direction. 5. Just move the PRINTER HEAD to left and repeat above procedure(2~4) to adjust the gap at left end. 6. Lock the TRIGGER "R" with LOCTITE(adhesives) after setting the gap. SAM4S ER-350II SERIES...
Page 28
5. Alignments and Adjustments MEMO SAM4S ER-350II SERIES...
• Check +5V whether it is short. 9. Check the power VLCD. • Check the VOLT_ONOFF signal ‘High’. (U5 74HC14 pin number 8) • Check the Transistor MMBT2222A (Q11) KSA708-Y(Q7 , Q10). • Check VLCD whether it is short. SAM4S ER-350II SERIES...
BILL-COIN (5B5C) c. ASS'Y HOUSING d. ASS'Y LOCK b. ASS'Y TRAY-TILL e. ASS'Y BOTTOM Figure7-9 Drawer (5B/5C) a. ASS'Y BILL-COIN (7B8C) c. ASS'Y HOUSING d. ASS'Y LOCK b. ASS'Y TRAY-TILL e. ASS'Y BOTTOM Figure7-10 Drawer (7B/8C) 7-14 SAM4S ER-350II SERIES...
10 Wiring Diagram 10-1 Main PBA Block Diagram Connector Function Connector Function POWER SPOOL MOTOR DRAWER SERIAL BLACK BOX PRINTER I/F FISCAL CN12 MODE KEY CN13 KEY SCAN CN14 KEY RETURN SAM4S ER-350II SERIES 10-1...
Page 58
LCD_R/W CS_LCD LD(0) LD(1) LD(2) LD(3) LD(4) LD(5) LD(6) LD(7) VLCD BACKLIT GND [ CN7 : VFD (CON-BOX:8P,2.5MM,ST(YH)) ] Pin No Signal Name Pin No Signal Name DISCONNECT BLACKING(STRBE) SERIAL CLOCK LATCH VDISP(+30V) SERIAL DATA IN 10-2 SAM4S ER-350II SERIES...
• When possible, record changes to Code numbers directly on the actual Parts List. • Always records Service Bulletin number and Application Date on this log to ensure that your data is always as current as possible. SAM4S ER-350II SERIES...
Page 80
Shin Heung Precision. JAN 2006 ⓒ Printed in KOREA. V1.0 Code No. : JK68-70109A...
