3-3 Operation
3-3-5 Booting Area Download
1. Turn off the power switch.
2. Connect the serial#1 cable of register to PC.
3. Turn the mode key marked 'C' to S-MODE.
4. Press and hold the 'CASH' key on key board and turn on the power switch at the same time.
5. The buzzer beeps. Press the 'CLEAR' key. Then the register enters the download mode.
6. Double Click 'DOWNLOAD.EXE' program on your PC.
7. Select the booting file and PORT.
8. Select the 'Boot area only'.
9. Click 'OK'
10. Wait! – It takes about 15 second.
3-3-6 Program Area Download
1. Turn off the power switch.
2. Connect the serial#1 cable of register to PC.
3. Turn the mode key marked 'C' to S-MODE.
4. Press and hold the 'CASH' key on key board and turn on the power switch at the same time.
5. The buzzer beeps. Press the 'CLEAR' key. Then the register enters the download mode.
6. Double Click 'DOWNLOAD.EXE' program on your PC.
7. Select the program file and PORT.
8. Select the 'Program Code only'.
9. Click 'OK'
10. Wait! – It takes about 3 minute.
11. Turn off the power switch.
12. Remove the serial cable
13. Perform the all clear function.(Refer to 3-3-4.)
SAM4S ER-5200 Series
Downloaded from www.Manualslib.com
START

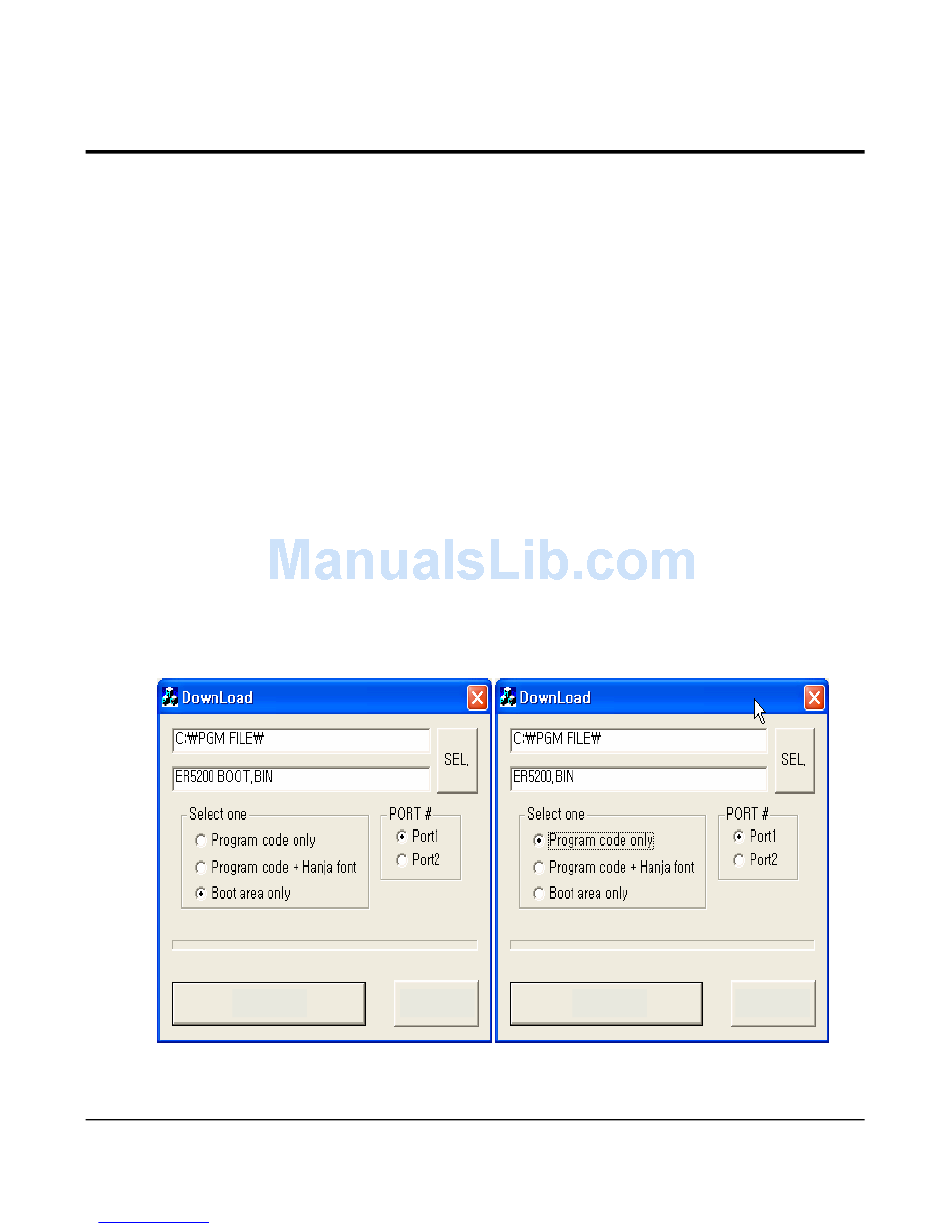

Figure3-11 Download Window (Boot & Program)
