3 Installation and Operation

3-3 Operation

Note: Before using this Electronic Cash Register (ECR) for the first time, leave it powered ON in the REG mode
for a at least 24 hours. This allows the Ni-Cad battery, which maintains the ECR's memory while the
power is OFF, to fully charge.

3-3-1 Mode Switch

The position of the Mode Switch determines the action of the ECR. The modes are as shown in Table 3-1
OFF
VOID
S

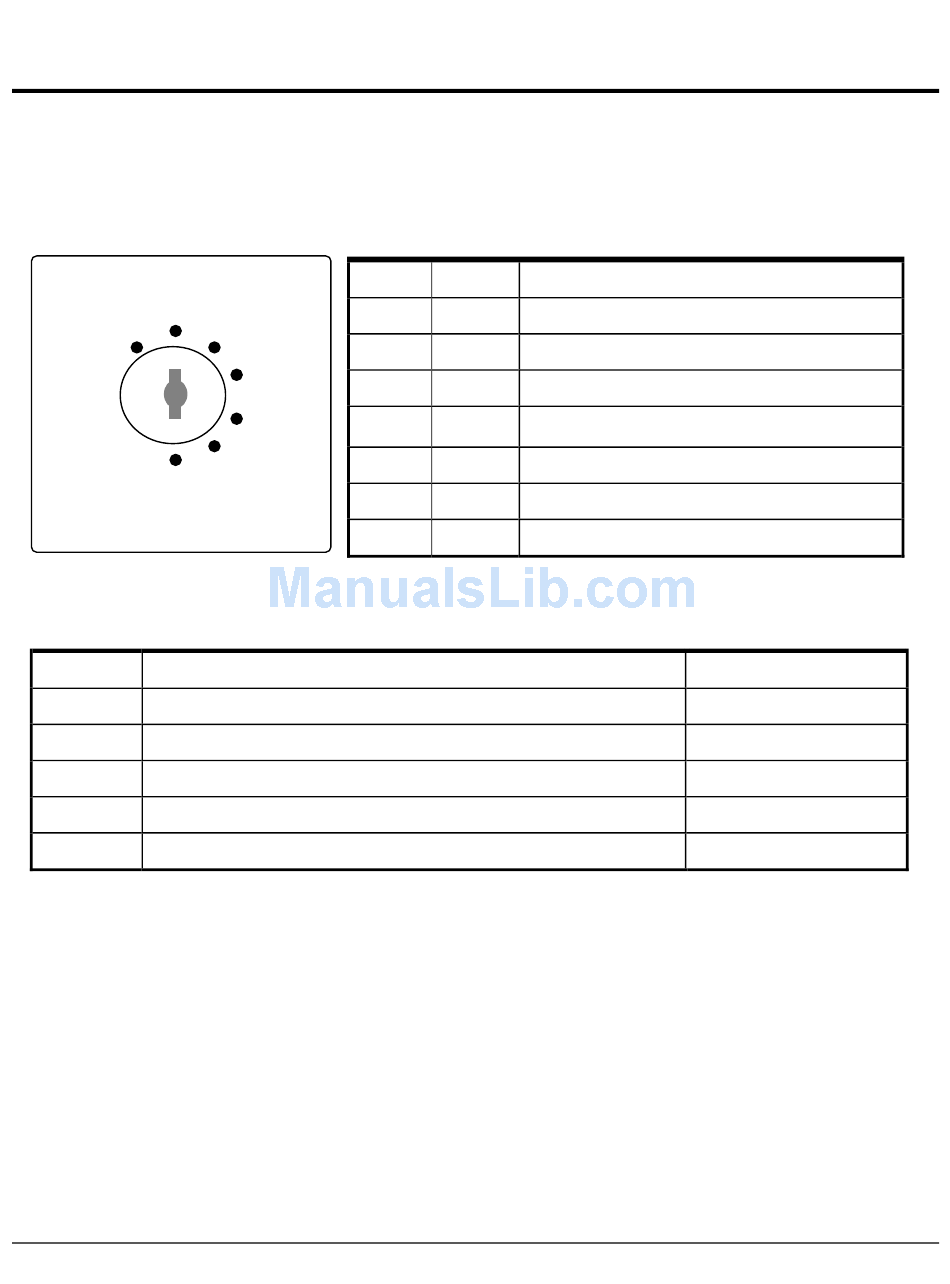

Figure3-5 Mode Switch
The mode keys can be used to access the following key lock positions.
Mode
VOID Void, Off, Register, Manager
X Off, Register, Manager
Z Off, Register, Manager, Clear Totals
PGM Void, Off, Register, Manager, Clear Totals, Program
C Void, Off, Register, Manager, Clear Totals, Program, Service Mode
Note : The Key can be removed from the key lock in the OFF or REGISTER position.
3-4
Mode
VOID
REG
OFF
X
REG
Z
X
P
Z
PGM
S
Accessible Position
Table3-4 Key Function
Key
VD Use to void (correct) items outside of a sale.
- The Register is inoperable.
REG Use for normal registrations.
Use to read register reports and perform other manager
X
functions.
Z Use to read register reports and reset totals to zero.
P Use to program the register
S Use for H/W tests and special setting.
Table3-3 Mode Switch Function
Function
Remark
SAM4S ER-5200 Series
