3 Installation and Operation

3-1 System Configuration

3-1-1 Configuration
7
6

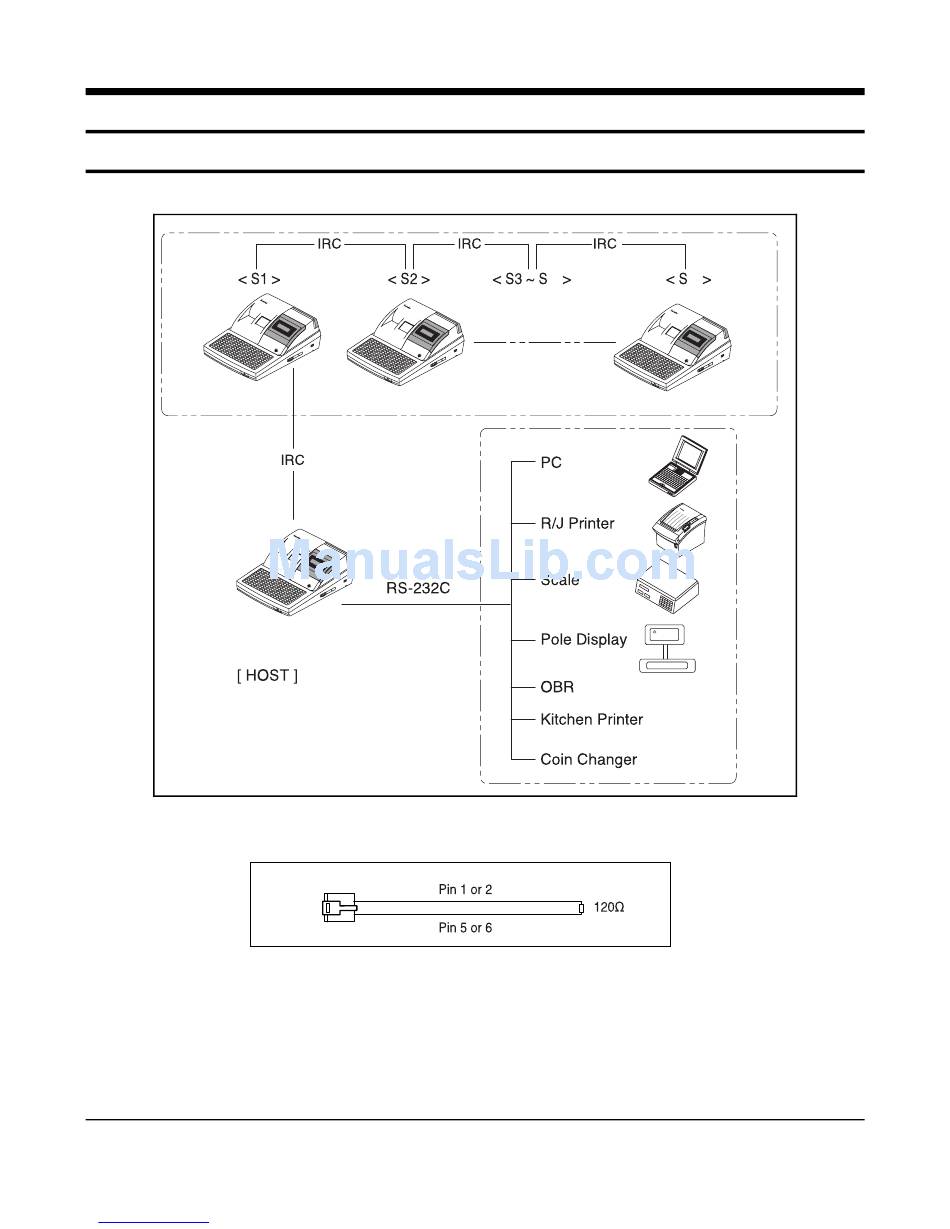

Figure 3-1 System Configuration
Figure 3-2 IRC Terminator
Note] The termination resistor 120[Ohm] must be installed at Host ECR and Last Slave ECR (S7).
