7 Special Circuit Descriptions
7-4 VFD Display Block Circuits
This uses 10digit Fluorescent Display and uses UCN5812AF (is located on the Front VFD PCB) for the driver. CPU
sends Display data to the driver repeatedly having given time interval in series and then Fluorescent Display is operated.
CPU
CLK,
DATA
LATCH&STB
7-6
Downloaded from www.Manualslib.com
CLK, DATA, LATCH
STROBE
DRIVER
UCN5812
+30V,+5V,GND

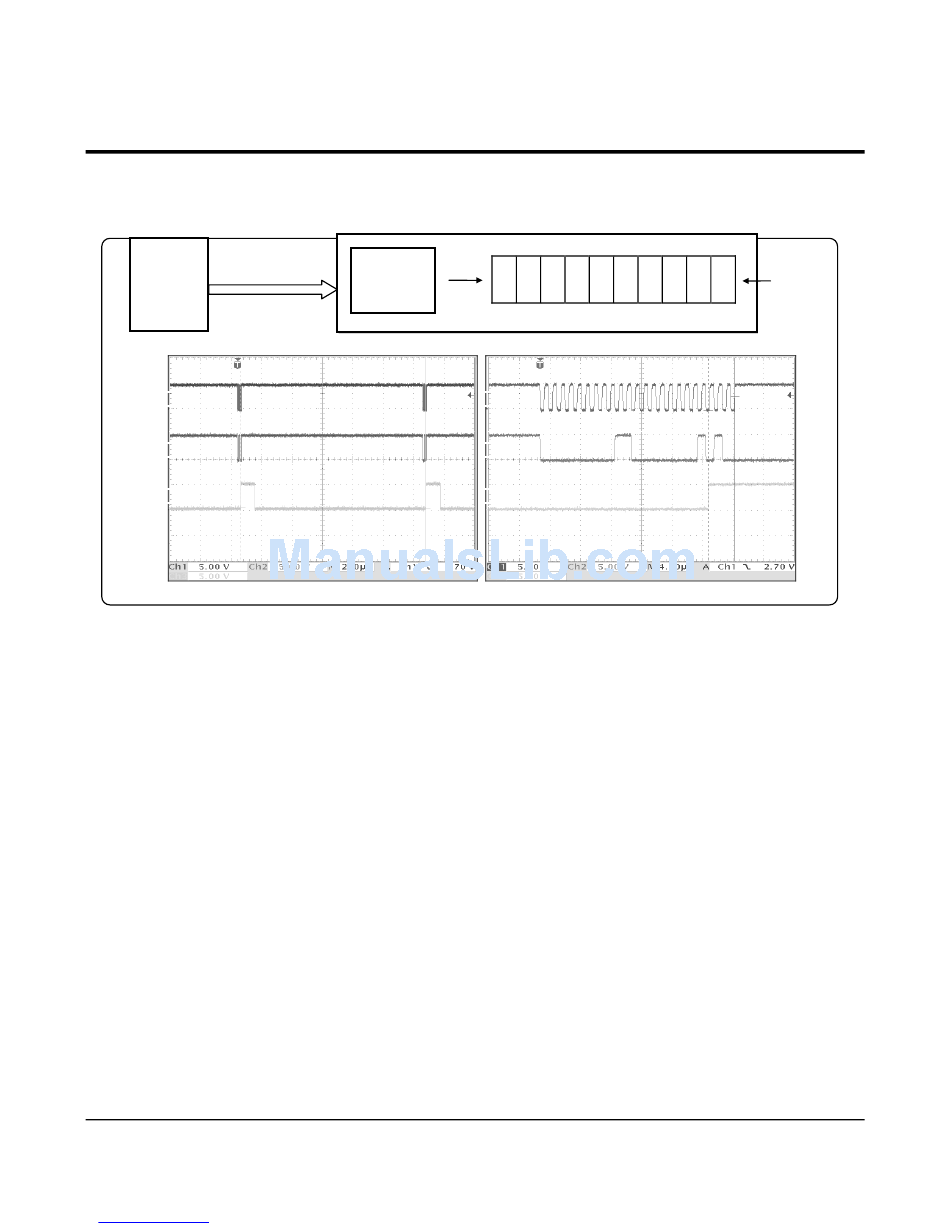

Figure 7-10 VFD Diagram & Waveform
manuals search engine
0 1 2 3 4 5 6 7 8 9
Front & Rear VFD PBA
CLK,
DATA
LATCH&STB
10Digits
