9-2 Printer (STM-210)

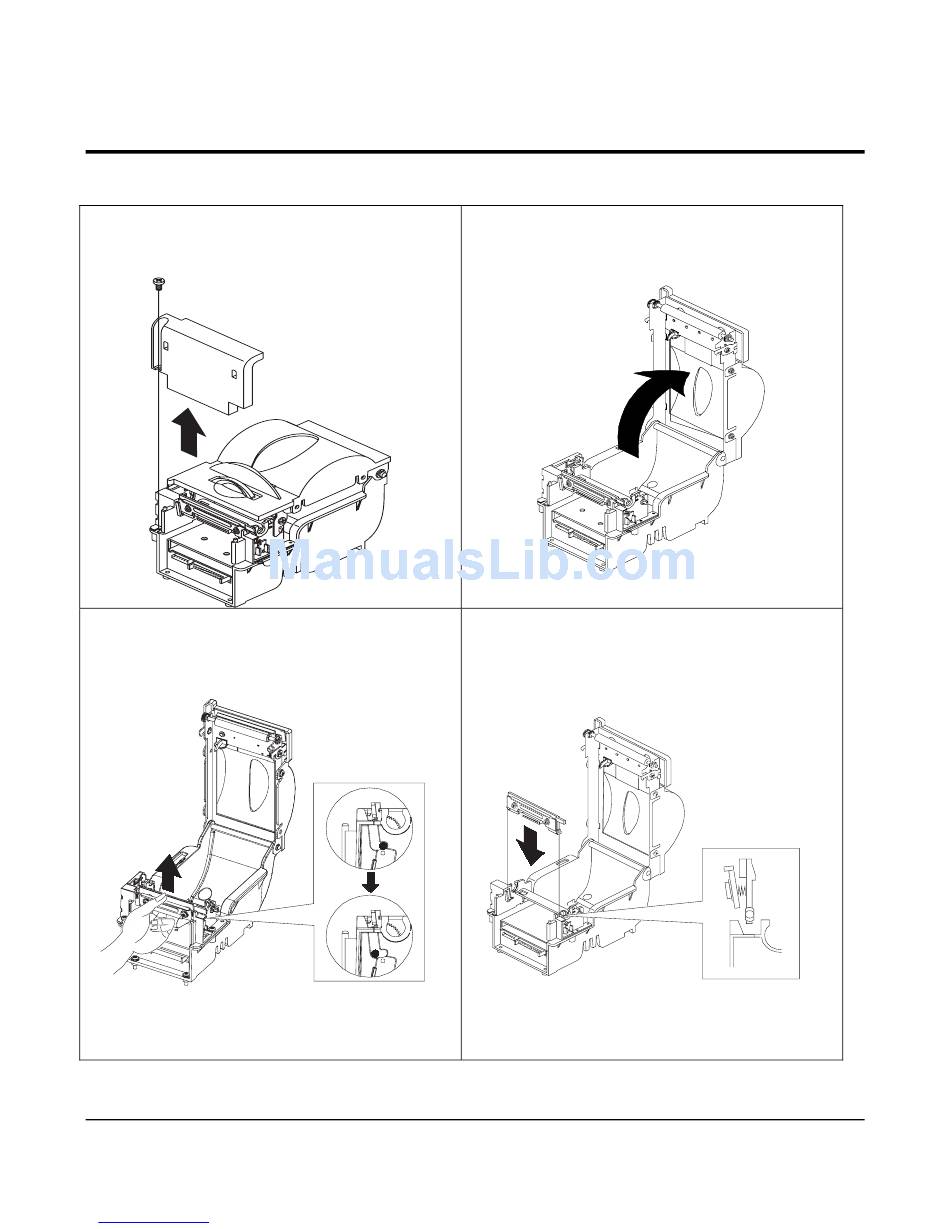

9-2-3 Thermal Printer Head assembly replacement
1.Unscrew the bolt of COVER FRONT and
disassemble it from the PRINTER.
3. Disassemble the TPH assembly by pulling the
lower part of TPH assembly and lift it up.
SAM4S ER-5200 Series
Downloaded from
www.Manualslib.com
manuals search engine
9 Exploded Views and Parts List
2. Open the COVER TOP.
4. Assemble the TPH assembly in reverse order and
close the COVER TOP.
9-11
