Configure sensor and report settings
Note The Recurring option does not work with the Connect Sensor device.

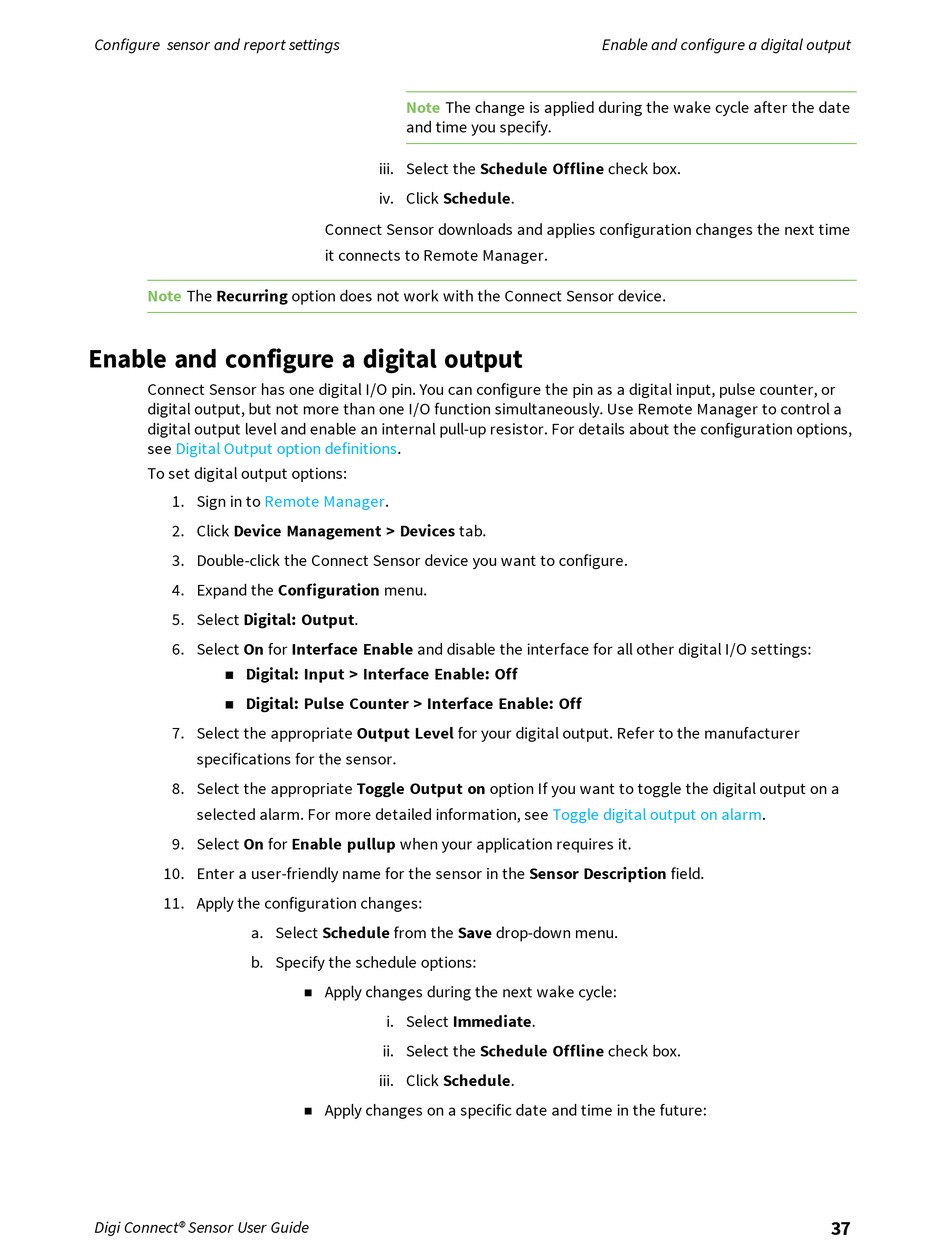

Enable and configure a digital output

Connect Sensor has one digital I/O pin. You can configure the pin as a digital input, pulse counter, or
digital output, but not more than one I/O function simultaneously. Use Remote Manager to control a
digital output level and enable an internal pull-up resistor. For details about the configuration options,
see Digital Output option
To set digital output options:
1. Sign in to Remote
2. Click Device Management > Devices tab.
3. Double-click the Connect Sensor device you want to configure.
4. Expand the Configuration menu.
5. Select Digital: Output.
6. Select On for Interface Enable and disable the interface for all other digital I/O settings:
Digital: Input > Interface Enable: Off
n
Digital: Pulse Counter > Interface Enable: Off
n
7. Select the appropriate Output Level for your digital output. Refer to the manufacturer
specifications for the sensor.
8. Select the appropriate Toggle Output on option If you want to toggle the digital output on a
selected alarm. For more detailed information, see
9. Select On for Enable pullup when your application requires it.
10. Enter a user-friendly name for the sensor in the Sensor Description field.
11. Apply the configuration changes:
a. Select Schedule from the Save drop-down menu.
b. Specify the schedule options:
Digi Connect® Sensor User Guide
Note The change is applied during the wake cycle after the date
and time you specify.
iii. Select the Schedule Offline check box.
iv. Click Schedule.
Connect Sensor downloads and applies configuration changes the next time
it connects to Remote Manager.
definitions.
Manager.
Apply changes during the next wake cycle:
n
i. Select Immediate.
ii. Select the Schedule Offline check box.
iii. Click Schedule.
Apply changes on a specific date and time in the future:
n
Enable and configure a digital output
Toggle digital output on alarm.
