Get started

Connect Sensor ports and buttons

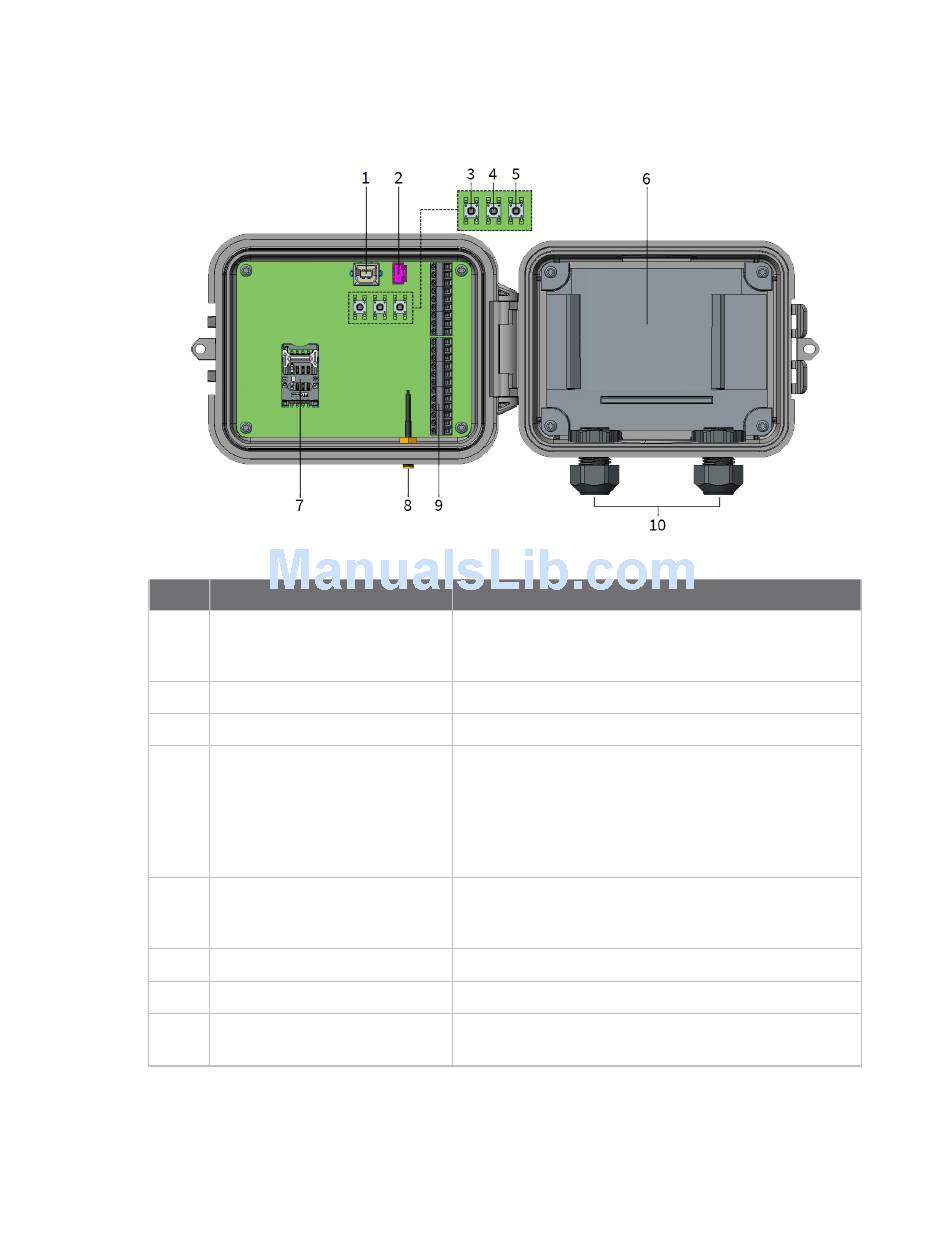

The following figure shows the controls for setting up and configuring Connect Sensor.
Item Name
1 Console port
2 Battery port
3 Wake button
4 Factory button
5 Reset button
6 Battery tray
7 SIM Card tray
8 Cellular antenna port
Digi Connect® Sensor User Guide
Learn about Connect Sensor product components
Description
Connects Connect Sensor to a computer using a USB
type A to B cable for access to the command line
interface (CLI).
Connects the battery wire to power Connect Sensor.
Wakes Connect Sensor.
Removes all configuration changes and restores
Connect Sensor to its original factory default settings
when you press and hold it for a 3 seconds. If you press
this button, but do not hold it down, the device briefly
wakes and returns to sleep mode—no settings are
affected.
Restarts the device when it is not responding to input
(from the CLI or otherwise). Pressing this button does
not remove previous configuration changes.
Holds the battery in place.
Connects the SIM card to Connect Sensor.
Connects an external cellular antenna to Connect
Sensor.
23
